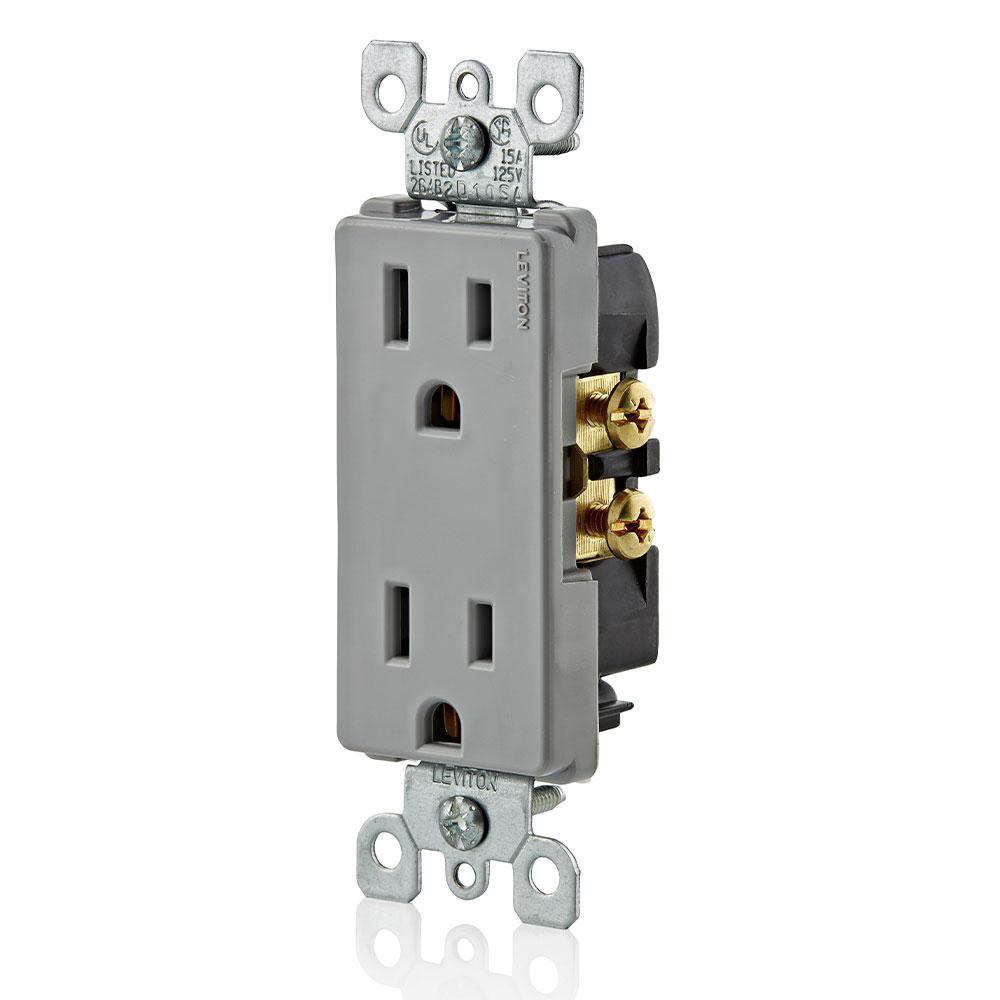

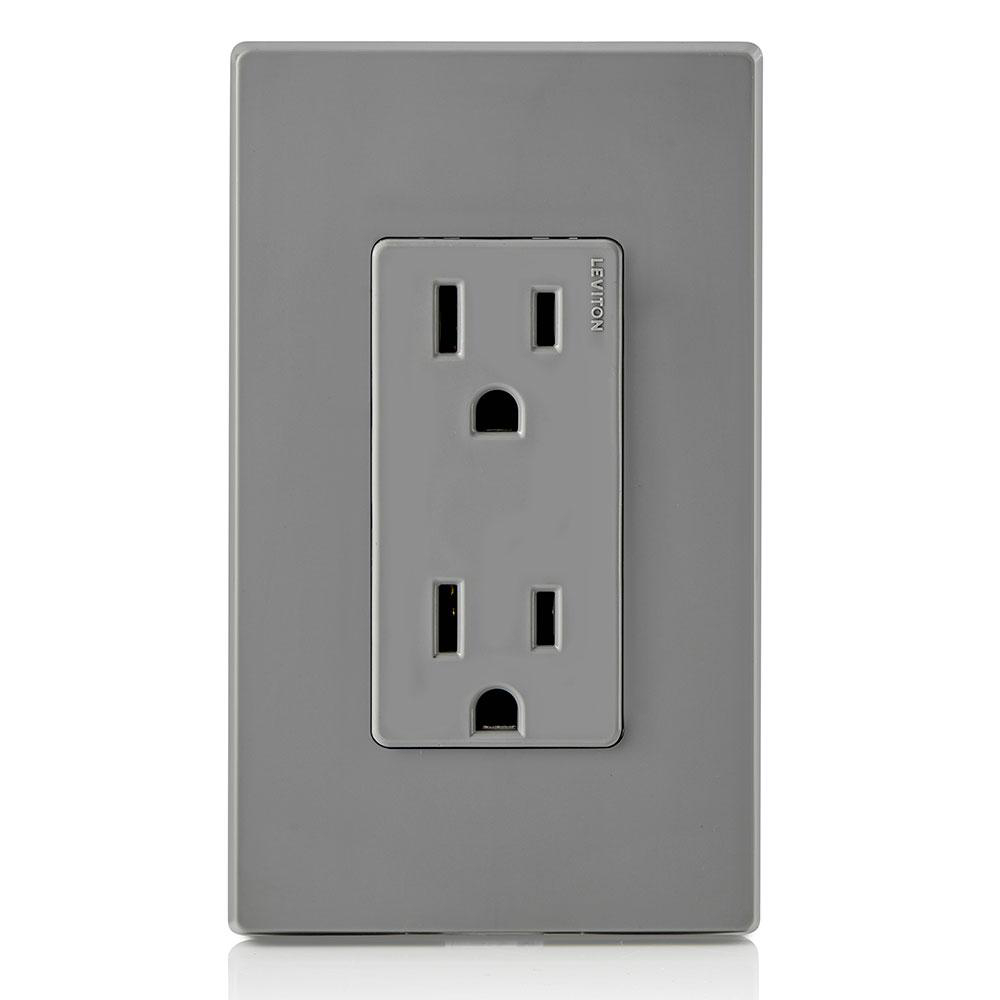

Receptacle wall 2P 3W 125V 15A grey

Manufacturer: Leviton Manufacturing | Catalog # 5325-GY | Electrozad South Part # 69832

$1.84 /ea
ea
Log in or register to view your price, purchase history, and more!
109 available

For Delivery

Not in local stock *
Check another branch
Leviton...s comprehensive Residential Grade Receptacles portfolio includes devices rated for all residential applications in a variety of standard configurations. They are produced in an array of colors in both Decora and traditional styles. All duplex receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room. Each duplex is also equipped with break-off plaster ears and tabs to allow for easy alignment and two-circuit conversion.

Technical Information

Amperage
15 A
Applications
Commercial
Body Material
Thermoplastic
Conductor Size
14 AWG
Connection Type
Quickwire Push-In and Side Wired
Face Material
Thermoplastic
Grade
Commercial
Grounding
Grounding
Material
Thermoplastic
Mounting Type
Wallplate, Surface
NEMA
5-15R
Number of Poles
2
Number of Wires
3
Size
4.20 H x 1.31 W x 0.98 D IN
Standard
CSA,UL
TC Connection
Quickwire Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Termination Type
Quickwire Push-In,Slide Wire
Torque
14 lb-in
Type
Outlet
Voltage
125 V
Wire Count
3
Wire Size
14 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477233146
Color
Gray
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTIN
00078477233146
Product UPC
07847723314

Dimensions

Warranty Length
1 yr
