BIT4

Manufacturer: Burndy | Catalog # BIT4 | Electrozad South Part # 69998
$42.31 /ea
pc
Log in or register to view your price, purchase history, and more!
85 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

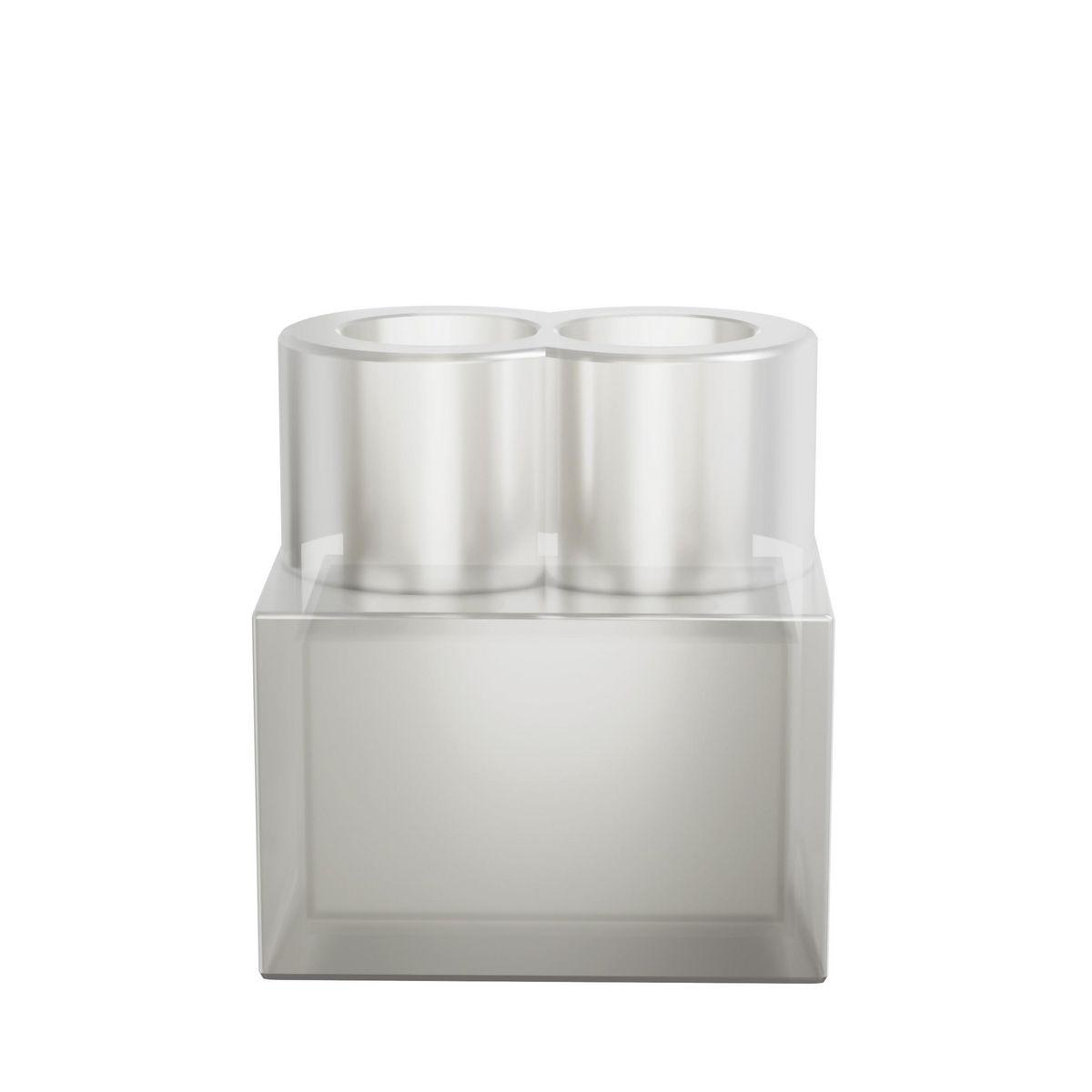

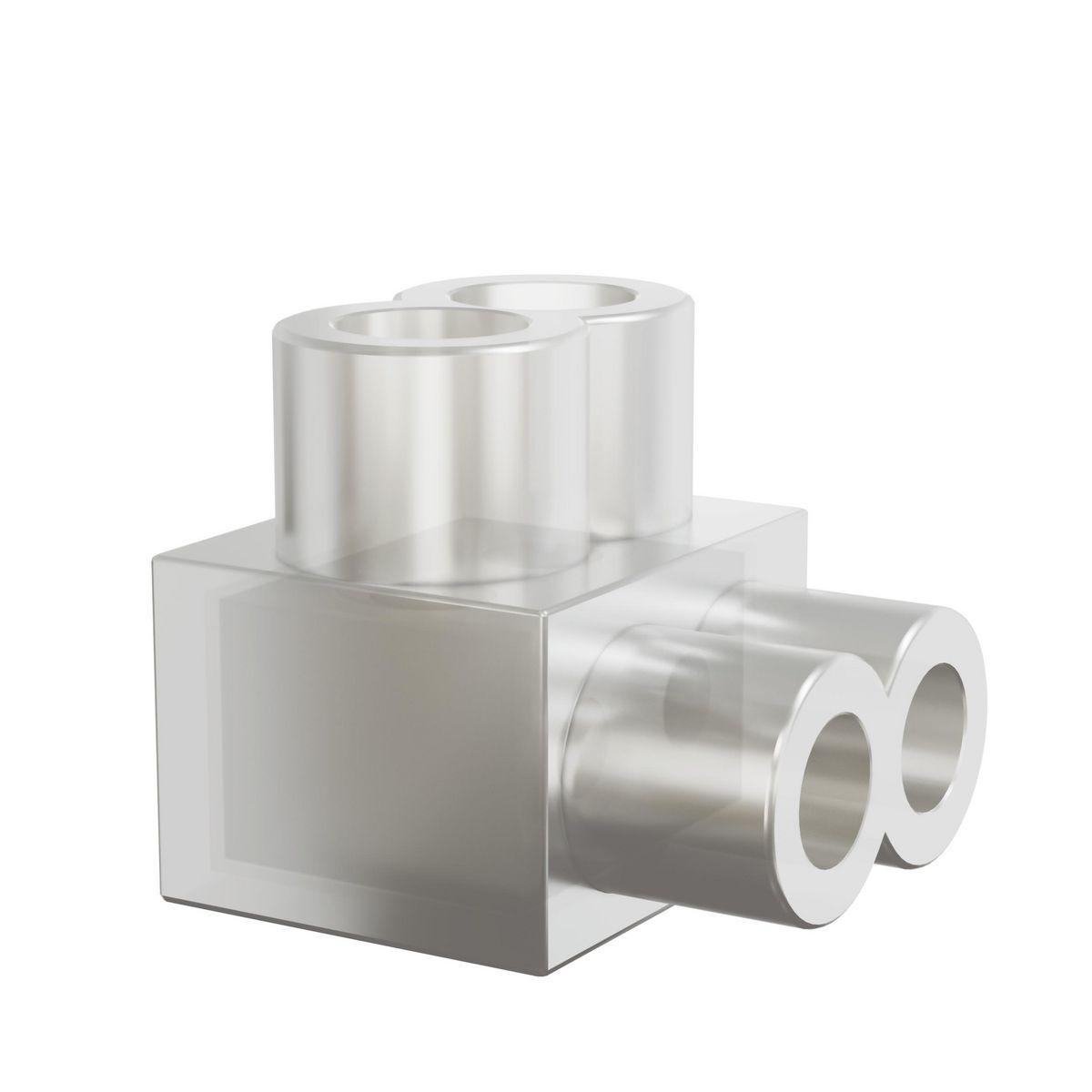

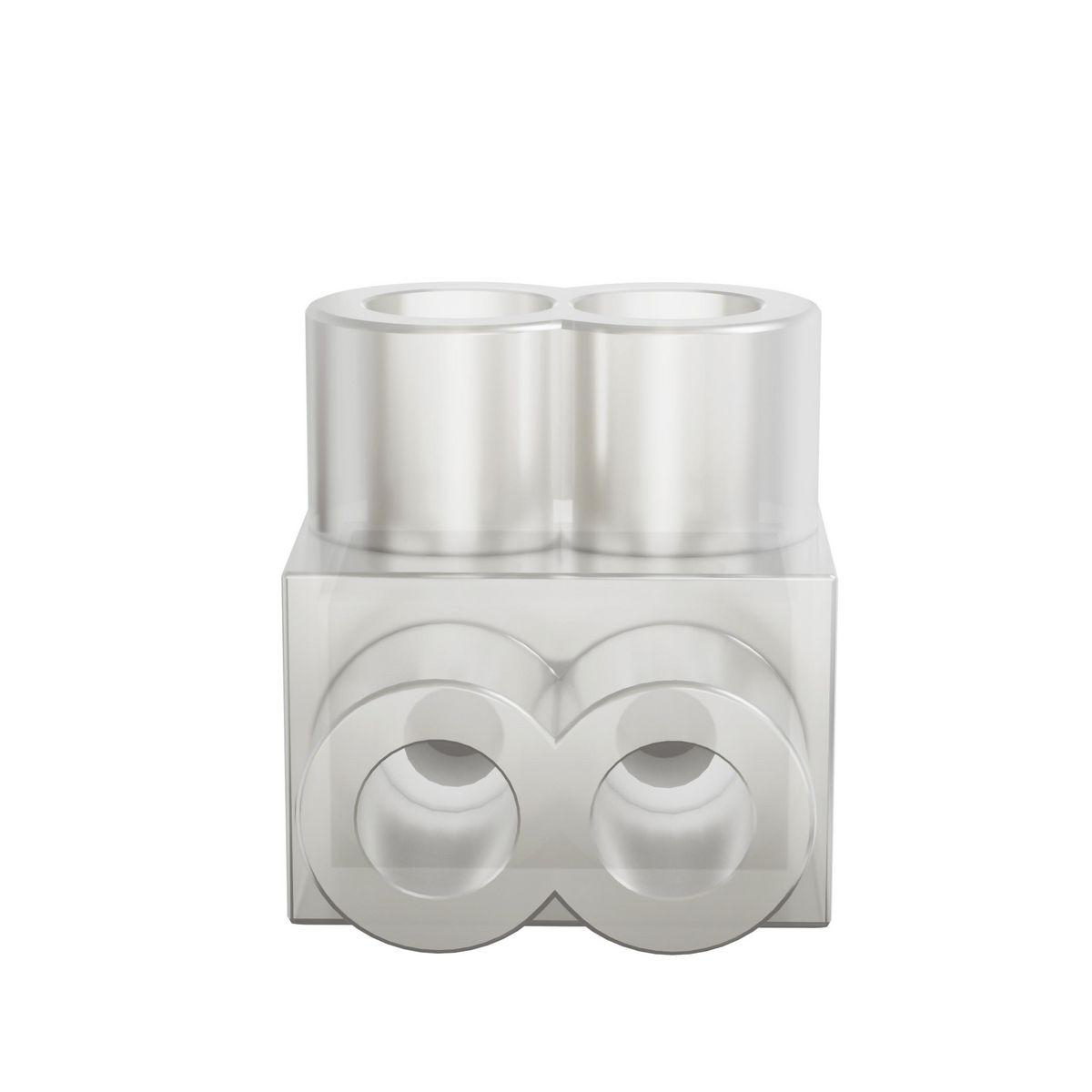

Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 1 Sided Entry, 14-4 AWG, Al/Cu Rated.

Technical Information

Applications
Indoor use, Copper or Stranded Aluminum
Conductor Size
4, 8, 12, 10, 14, 6 AWG
Connection Type
Screw
Direct Burial?
No
Insulation Type
Plastisol
Material
Al6061-T6 Aluminum
Number of Ports
2
Number of Screws
2
Plated?
No
Plating Type
Unplated
Port Number
2
Size
1.26 IN Height X 1.26 IN Width X 1.16 IN Length
Standard
CSA,E2186,UL
Stud Size
1/8 in
Temperature Rating
90 degrees C
Type
BIT, One Side
Voltage
600 V

Manufacturer Information

Brand
Burndy
Sub Brand
Unitap™

General Product Info

12-Digit UPC
781810134146
GTIN
00781810134146
Product UPC
78181013414

Dimensions

Height
1.25 in
Length
1.08 in
Overall Length
1.08 in
Width
29 mm

Certifications & Compliance

Country of Origin
USA
CSA
Yes
