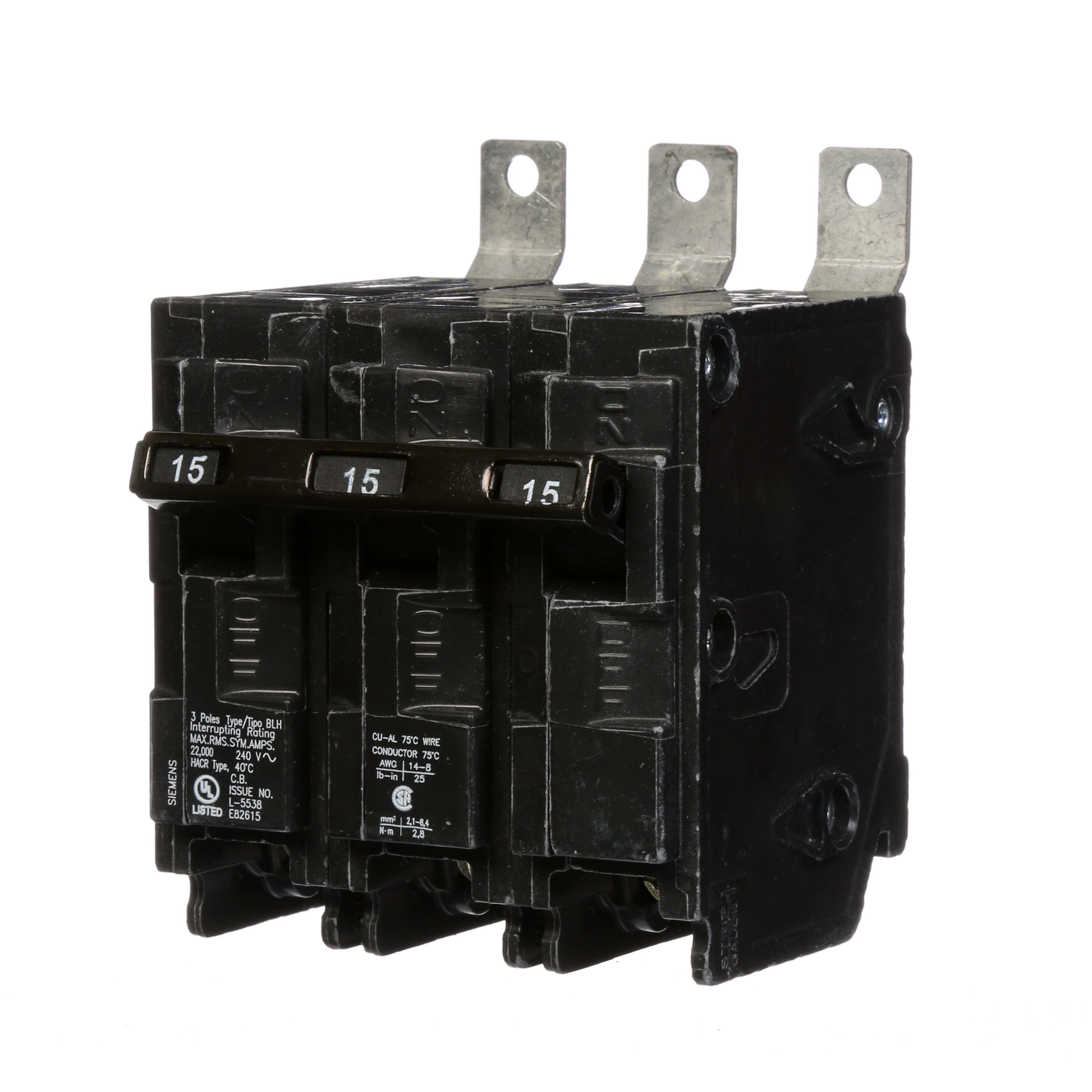

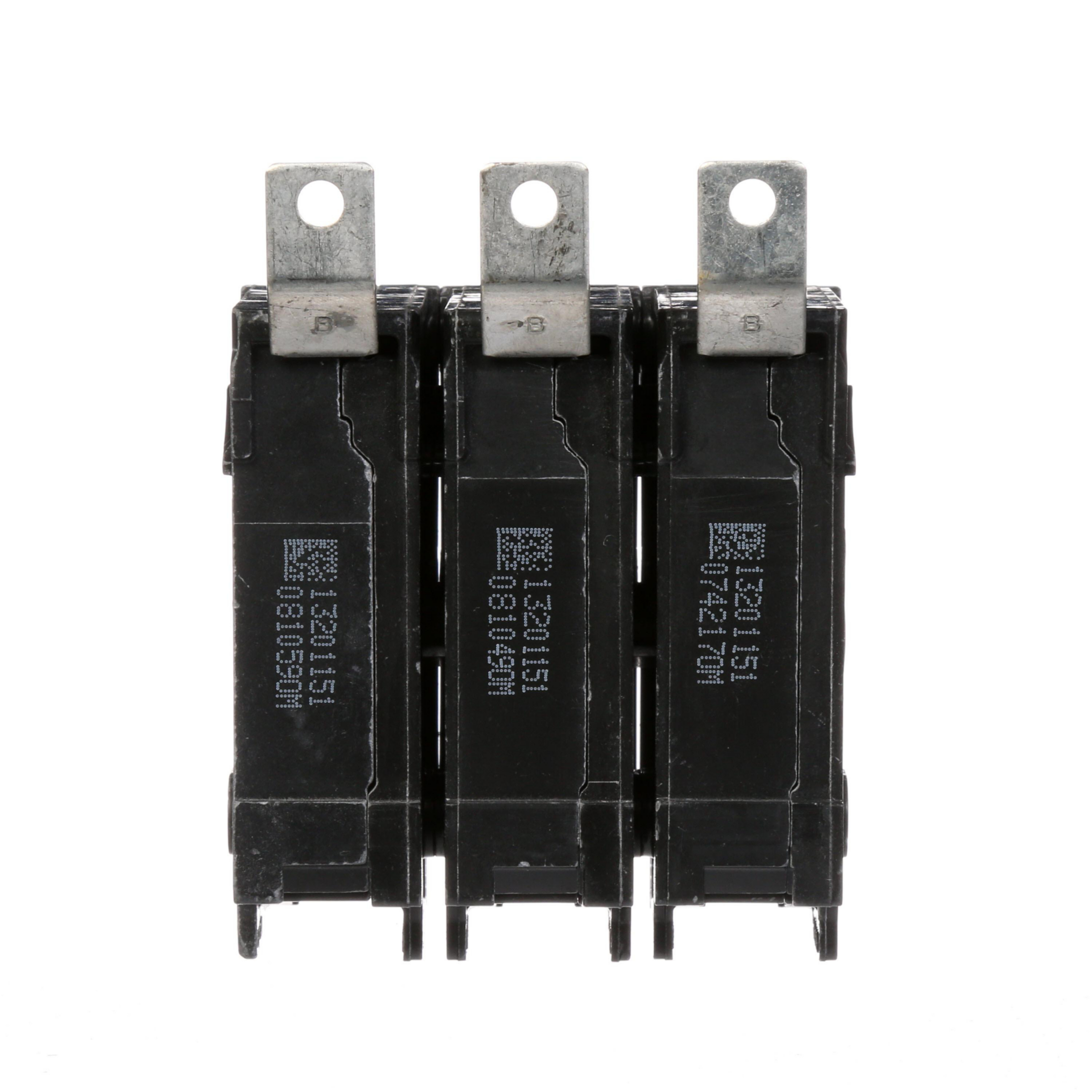

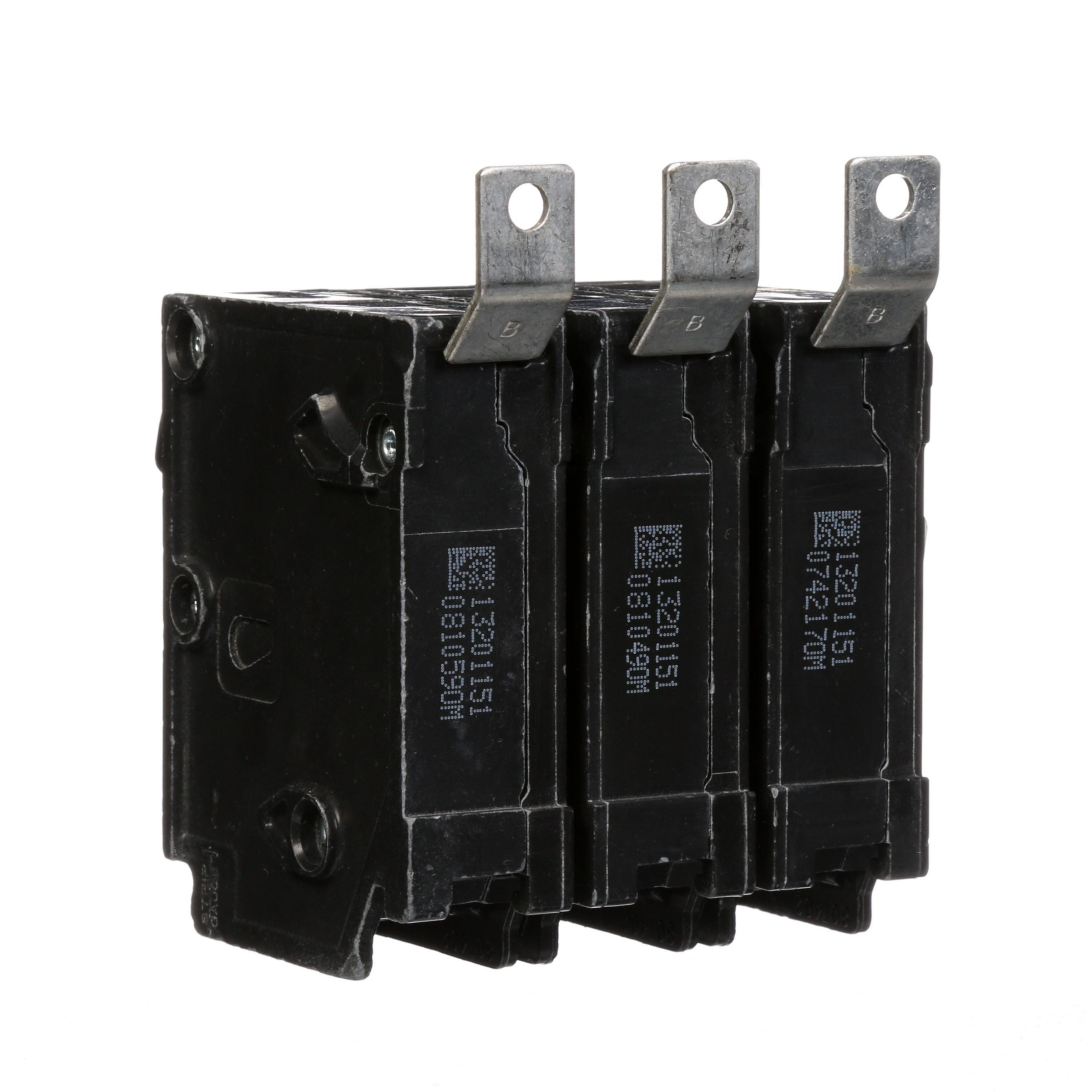

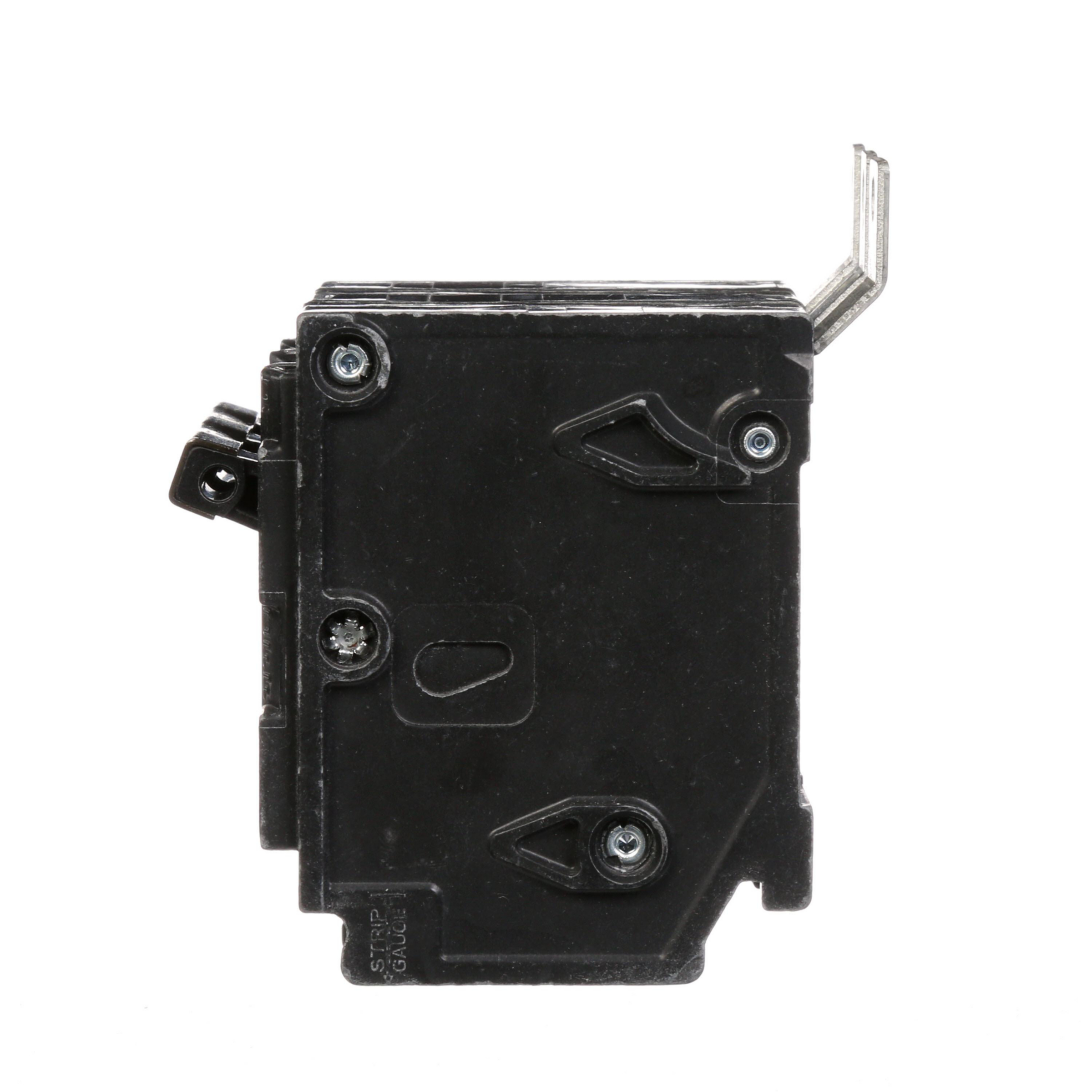

SIED B315H BREAKER 15A 3POLE 22KA

Manufacturer: Siemens Distribution | Catalog # B315H | Electrozad South Part # 70103
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page
Molded case circuit LOW TAB bolt-on breakers for panelboard mounting with insta-wire in 3 types of tripping speed BL=10KA, BLH=22KA, HBL=65KA. Available in versions 1 pole 120vac, 2 poles common trip 120/240vac, 2 poles common trip 240vac and 3 poles common trip 240vac.

Technical Information

Actuator
Switch Position Knob
Applications
Electrical Distribution
Enclosure
N/A
Frame
N/A
Interrupt Rating
22 kA
Load Rating
N/A
Number of Phases
-99999
Number of Poles
3
Operating Temperature
N/A
TC Connection
BOLT-ON
Trip Range
Thermal Magnetic
Trip Type
Thermal Magnetic
Type
BLH

Manufacturer Information

Brand
Siemens
Sub Brand
Panelboards

General Product Info

12-Digit UPC
783643263987
GTIN
00783643263987
Product UPC
78364326398
Weight
0.950 lb

Dimensions

Height
3.000 in
Length
4.000 in
Width
3.000 in

Certifications & Compliance

Country of Origin
Mexico
