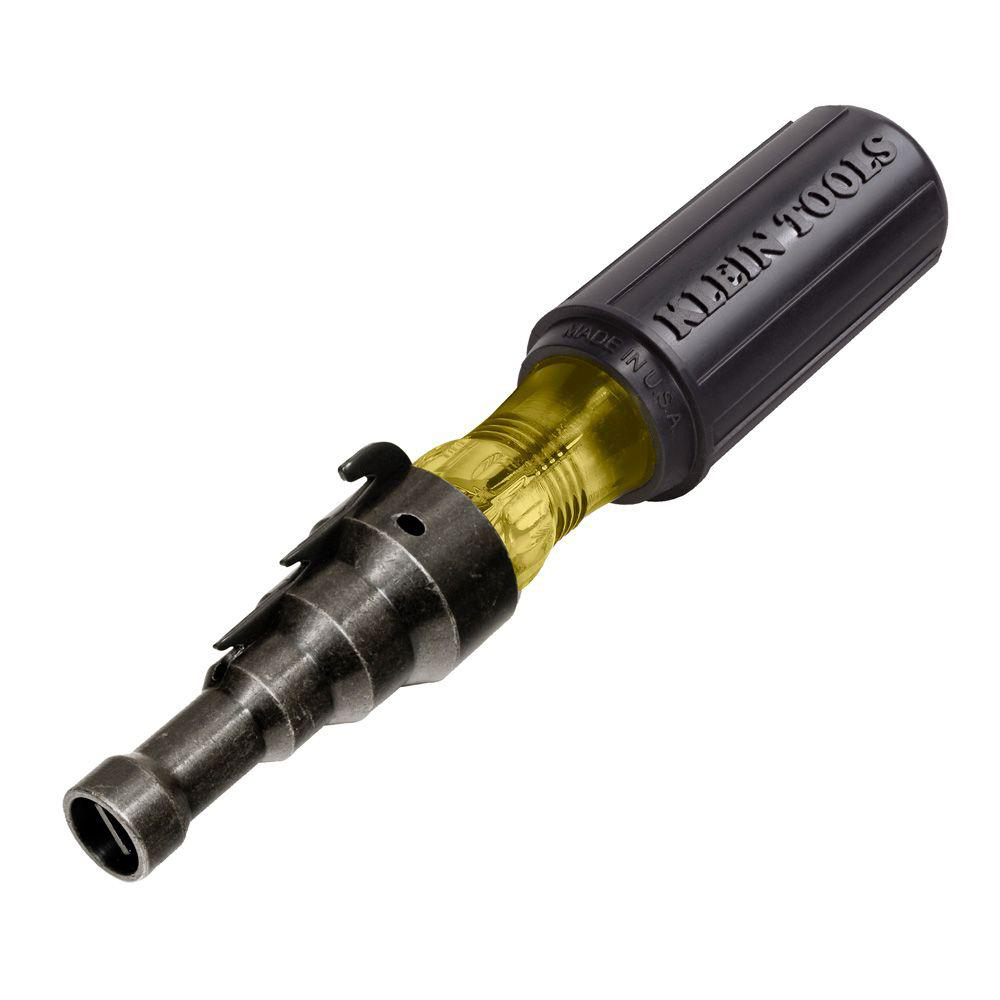

Screwdriver conduit-fitting & reaming 7-1/2"

Manufacturer: Klein Tools | Catalog # 85191 | Electrozad South Part # 70189
$58.30 /ea
pc
Log in or register to view your price, purchase history, and more!
9 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page D BRAND LOGO IMAGE URL

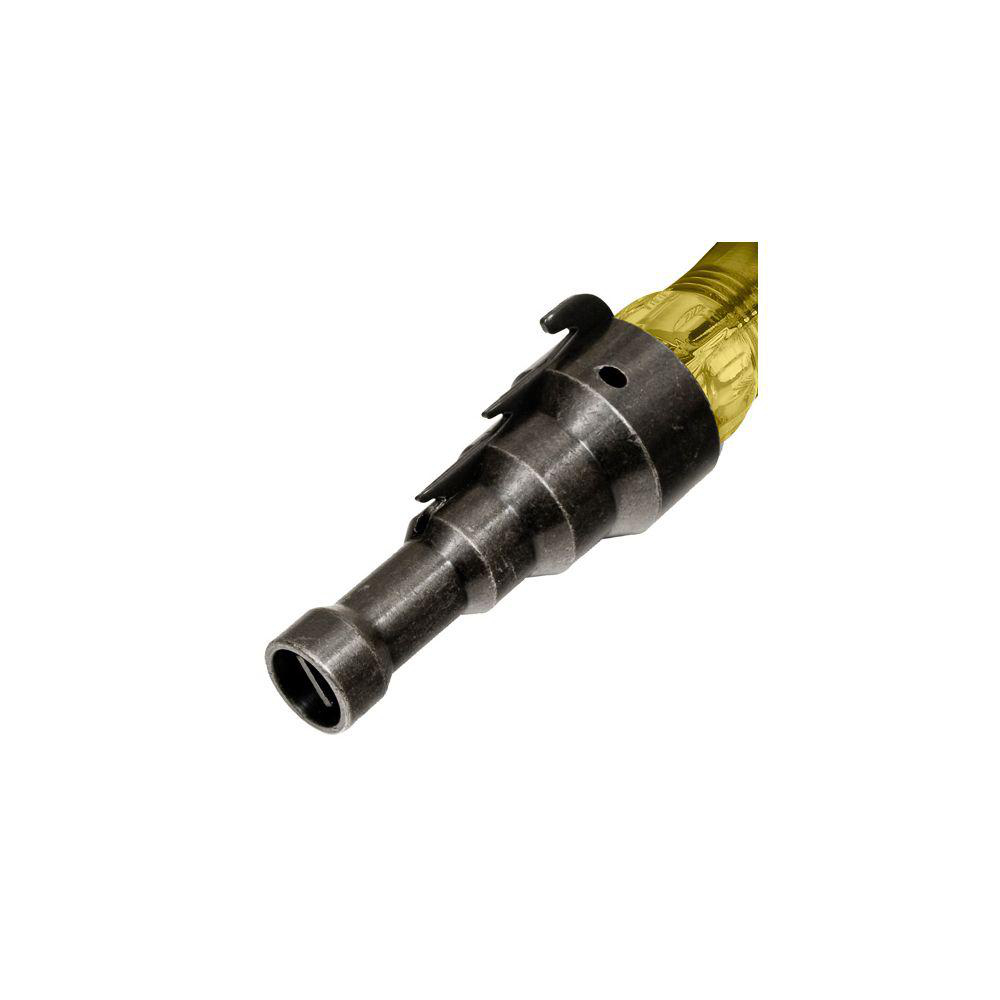

Hooded-blade design keeps tip from slipping out of screws, especially when tightening hard-to-reach conduit fittings. Thicker hood is designed for rugged use. Reams and smoothes 1/2'' (13 mm), 3/4'' (19 mm), and 1'' (25 mm) thin-wall conduit ends to protect wire and permit correct installation of fittings. Reams both the inside and outside of the conduit at the same time. Longer Cushion-Grip handle provides comfort and more torque for reaming. Replaceable reaming blade is now held in place with a 1/16'' hex socket set screw.

Technical Information

Applications
For Electrical Metallic Tubing
Handle Type
Cushion Grip
Number of Rows
1
Shank Size
2-1/2 in L
Tip Size
5/16 in
Tip Type
Hooded
Type
Conduit Fitting and Reaming; Conduit Tools

Manufacturer Information

Brand
Klein Tools

General Product Info

12-Digit UPC
092644851919
GTIN
00092644851919
Handle Color
Black/Yellow
Handle Material
Plastic
Product UPC
09264485191
Weight
0.500 lb

Dimensions

Depth
7.500 in
Height
1.0 in
Length
7.5 in
Overall Length
7-1/2 in
Shank Length
2.5 in
Width
1.000 in

Certifications & Compliance

Country of Origin
USA
Overview

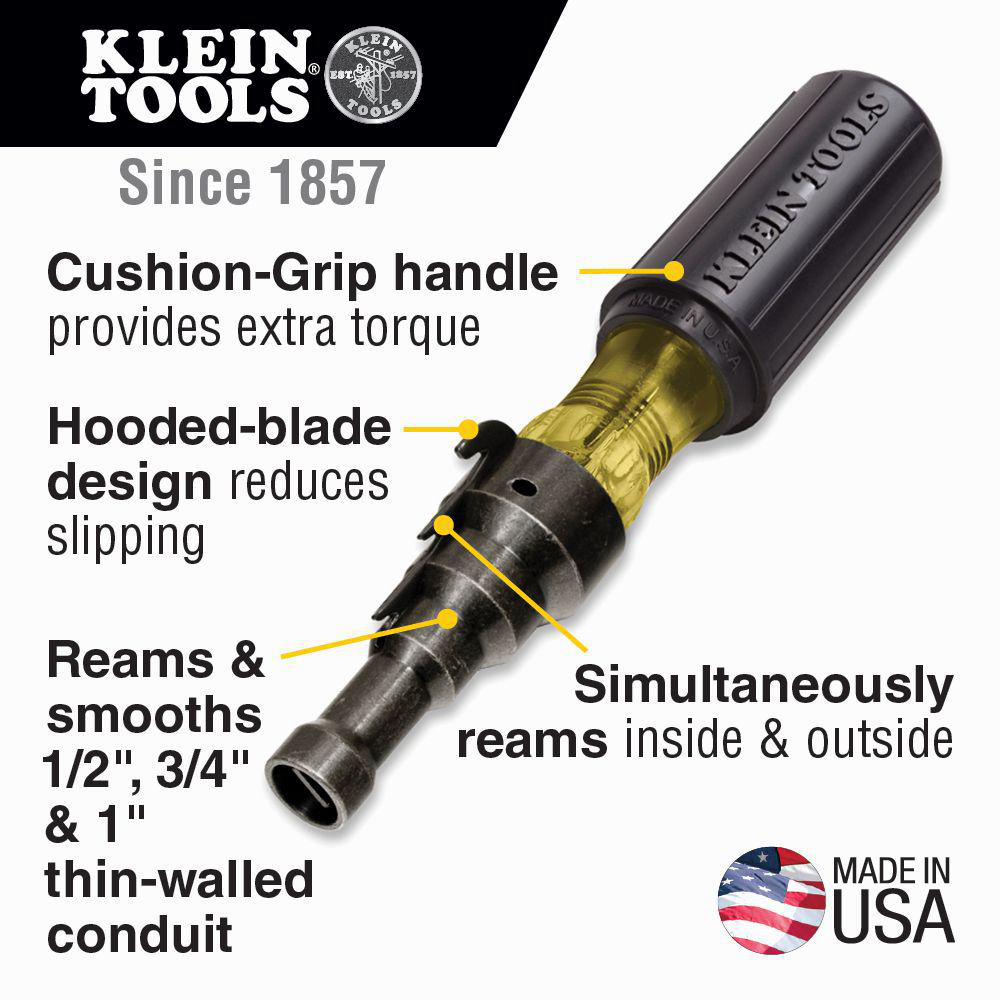

  • Reams both the inside and outside of the conduit at the same time
  • Reamer's hooded-blade design keeps tip from slipping out of screws, especially when tightening hard-to-reach conduit fittings thicker hood is designed for rugged use
  • Reams and smooths 1/2-Inch (13 mm), 3/4-Inch (19 mm), and 1-Inch (25 mm) thin-wall conduit ends to protect wire and permit correct installation of fittings
  • Replaceable reaming blade is now held in place with a 1/16-Inch hex socket set screw
  • Thinner screwdriver blade allows easier access to screw heads
  • Longer Cushion-Grip™ handle provides comfort and more torque for reaming
