Receptacle single flush nyl 2P3W 30A L5-30 ylw

Manufacturer: Hubbell Wiring Devices | Catalog # HBL2610 | Electrozad South Part # 70369
$60.54 /ea
pc
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL

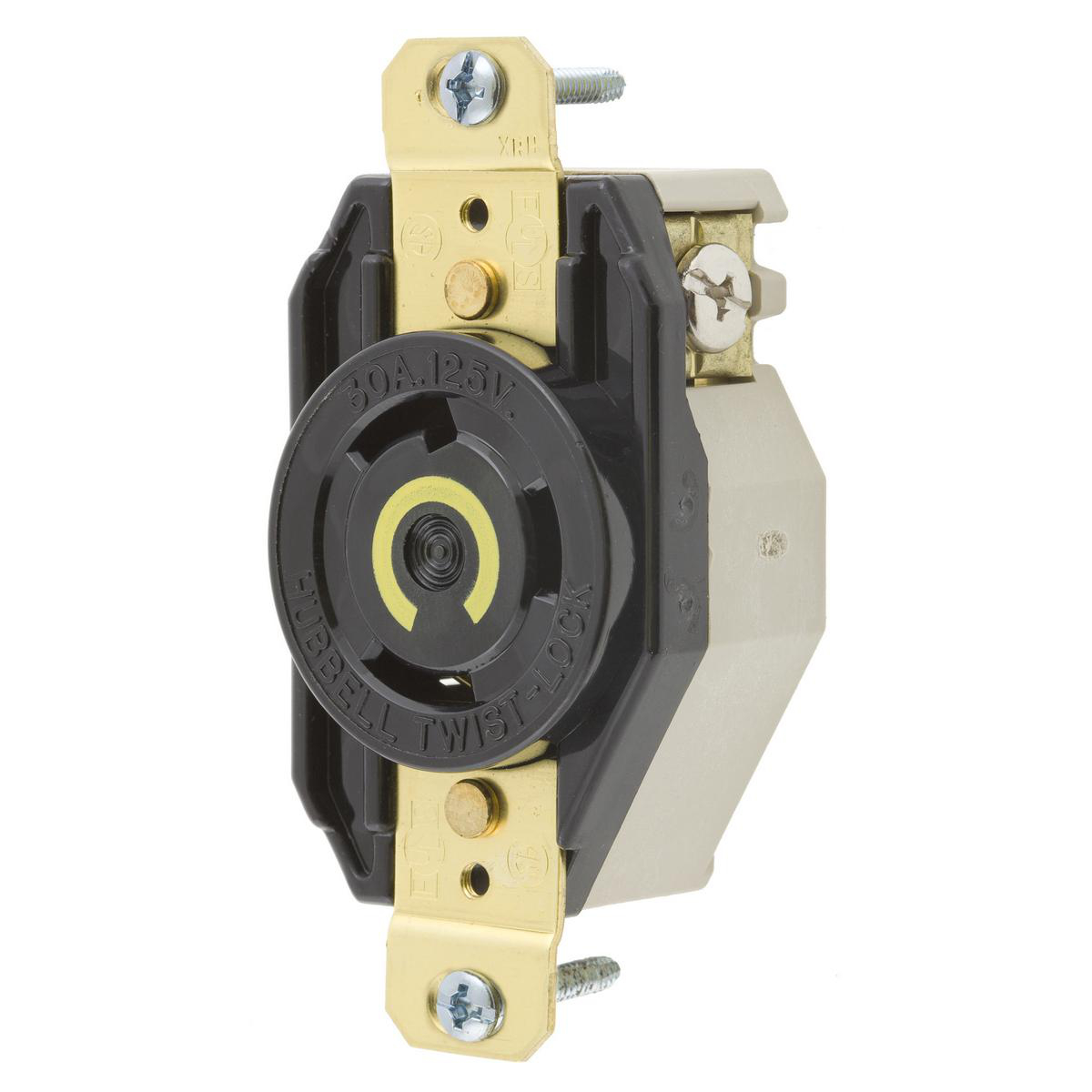

TWIST-LOCK® Single flush receptacle made of nylon with 2 pole, 3 wire, 125 V, 2 HP.

Technical Information

Amperage
30 A
Applications
Heavy Duty Industrial
Base Material
Plastic,RTP
Conductor Size
12-8 AWG
Current
30 A
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Industrial
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
L5-30R
Number of Phases
1
Number of Poles
2
Number of Wires
3-Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Screw Terminal
Type
Heavy Duty
Voltage
125 V
Wattage
3750 W
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585235929
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585235929
Product UPC
78358523592
Weight
0.30 lb

Dimensions

Height
1.31 in
Length
3.28 in
Width
1.70 in

Certifications & Compliance

Country of Origin
USA
Overview
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
