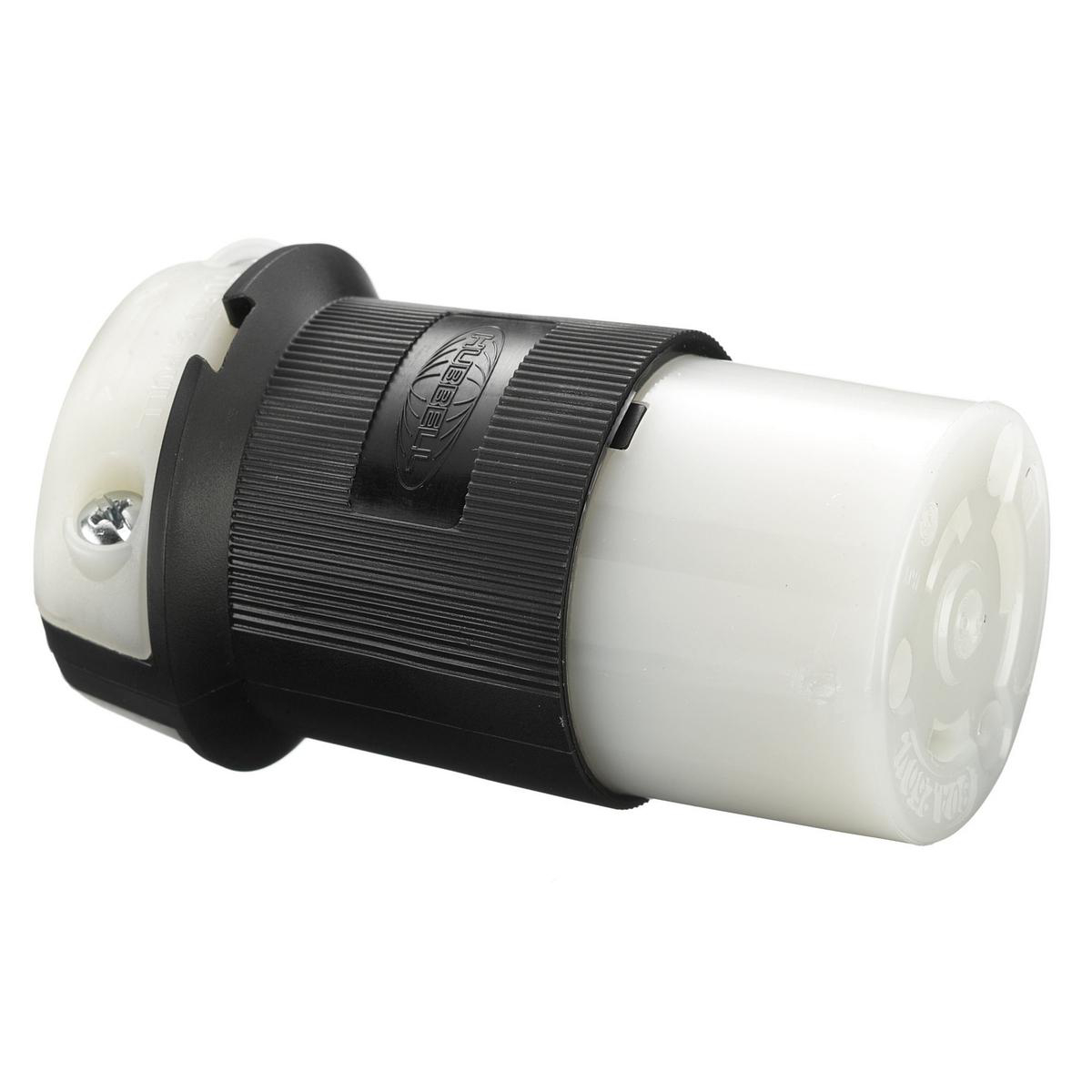

HUB HBL2623 CONN TL 30A 2P3W 250V FEMALE BODY INSULGRIP IP20 2HP BLK&WHT NYLON .385-.780"C RANG

Manufacturer: Hubbell Wiring Devices | Catalog # HBL2623 | Electrozad South Part # 70502
$79.68 /ea
pc
Log in or register to view your price, purchase history, and more!
7 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual
Twist-Lock® insulgrip connector body made of nylon with 2 pole, 3 wire grounding, 250 V AC, 30 A. 0.36 to 0.93 inch cord diameter.

Technical Information

Amperage
30 A
Applications
Heavy Duty Industrial
Conductor Size
12-8 AWG
Connection Type
Pressure Screw
Current
30 A
Material
Composite
NEMA
L6-30R
Number of Conductors
3
Number of Phases
1
Number of Poles
2,2
Number of Ports
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
2.26 in x 2.26 in x 3.86 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Pressure Screw Terminal
Temperature Rating
-25 to 75 degrees C with Impact, -40 to 75 degrees C without Impact
Type
Female, Standard
Voltage
250 V
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585038865
Color
Black and White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585038865
Product UPC
78358503886
Weight
0.25 lb

Dimensions

Height
3.86 in
Length
2.26 in
Width
2.26 in

Certifications & Compliance

Country of Origin
USA
