PANDUIT BT2S-C0 BARBTY 8"L STANDARD NYLON CABLE TIE TYRAP BLACK 100/PK

Manufacturer: Panduit | Catalog # BT2S-C0 | Electrozad South Part # 70573
$31.97 /c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
1,500 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure

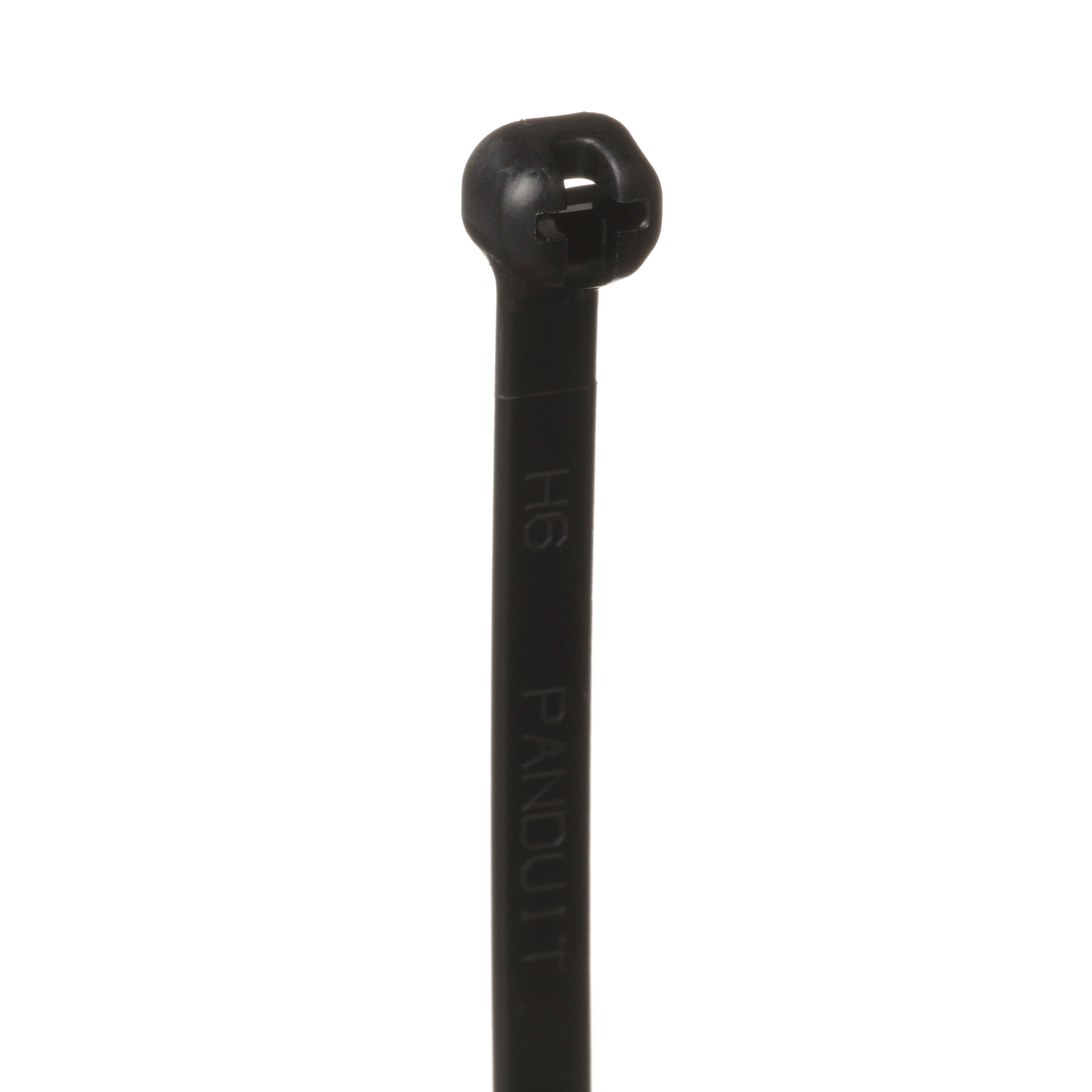

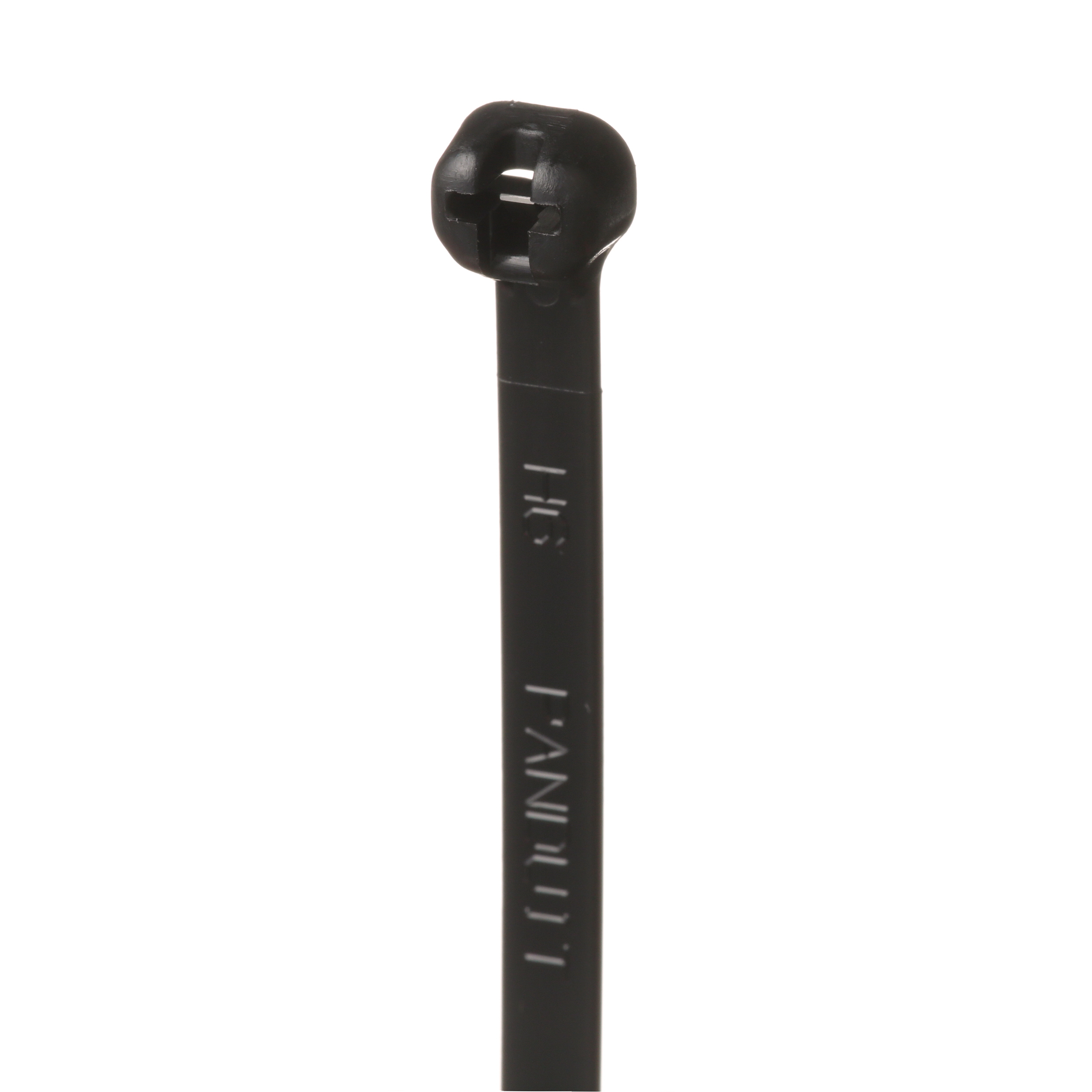

Dome-Top® barb ty cable tie with standard cross section. Greater resistance to damage caused by ultraviolet light-indoor or outdoor use. Dome-top head features unique patented design with round, smooth edges. Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range. High strength and low thread force and curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation.

Technical Information

Applications
General Use
Body Thickness
0.045 in
Body Width
0.185 in
Bundle Diameter
51 mm
Material
Nylon 6.6/Polyamide
Max Operating Temperature
185 degrees F
Minimum Operating Temperature
-60 degrees C
Standard
CSA,E2186,UL
Tensile Strength
222 N
Type
Miniature, Barb, Standard, Weather-Resistant, Internal Toothing, Plenum, Locking

Packaging

Package Qty
100
Standard Packaging Qty
100/Pack

Manufacturer Information

Brand
Panduit
Sub Brand
Dome-Top

General Product Info

12-Digit UPC
074983411771
Color
Black
Environment
Indoor,Outdoor
GTIN
00074983411771
Product UPC
07498341177

Dimensions

Length
8 in
Overall Length
8 in
Thickness
1.1 mm
Width
4.7 mm

Certifications & Compliance

Country of Origin
CR,MY
