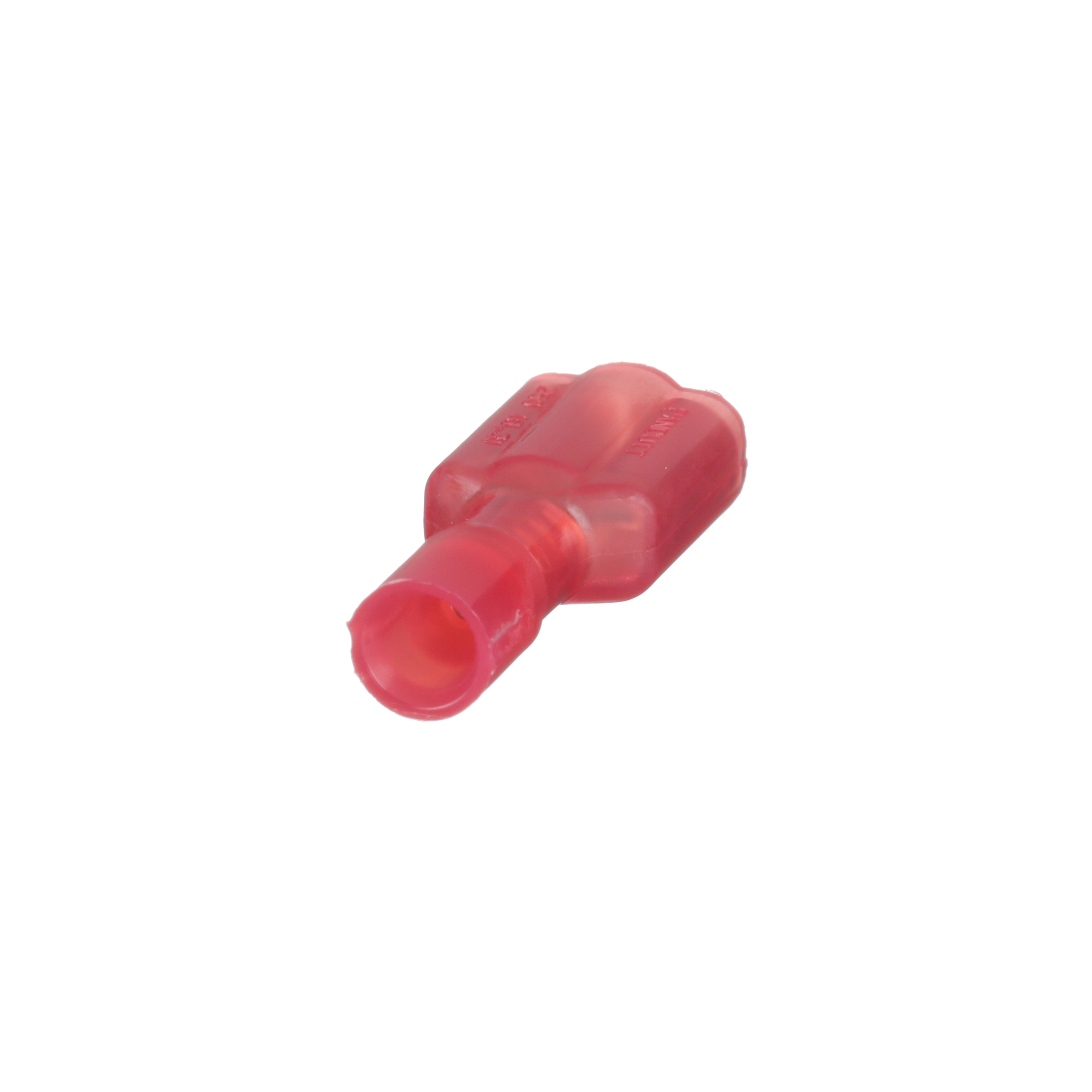

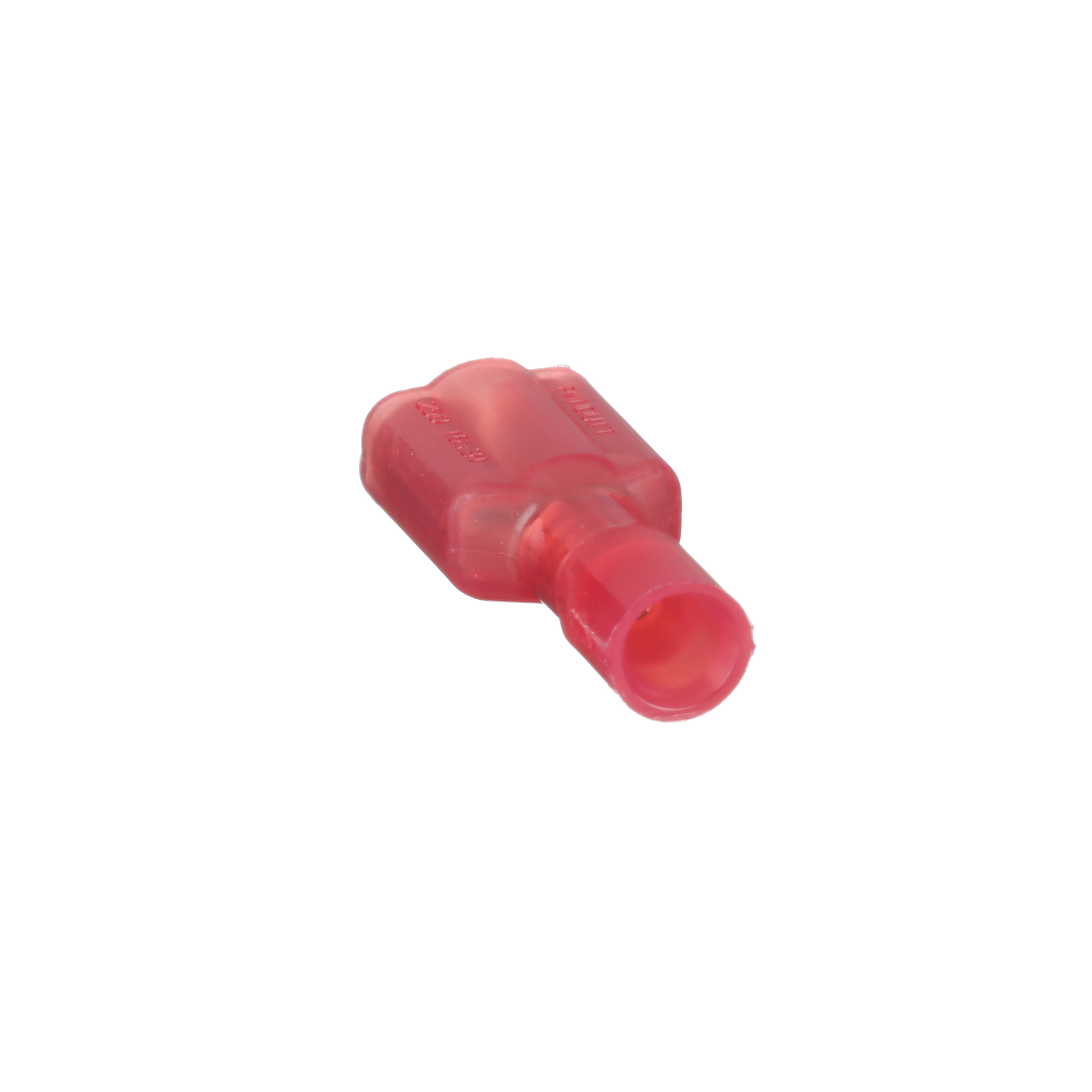

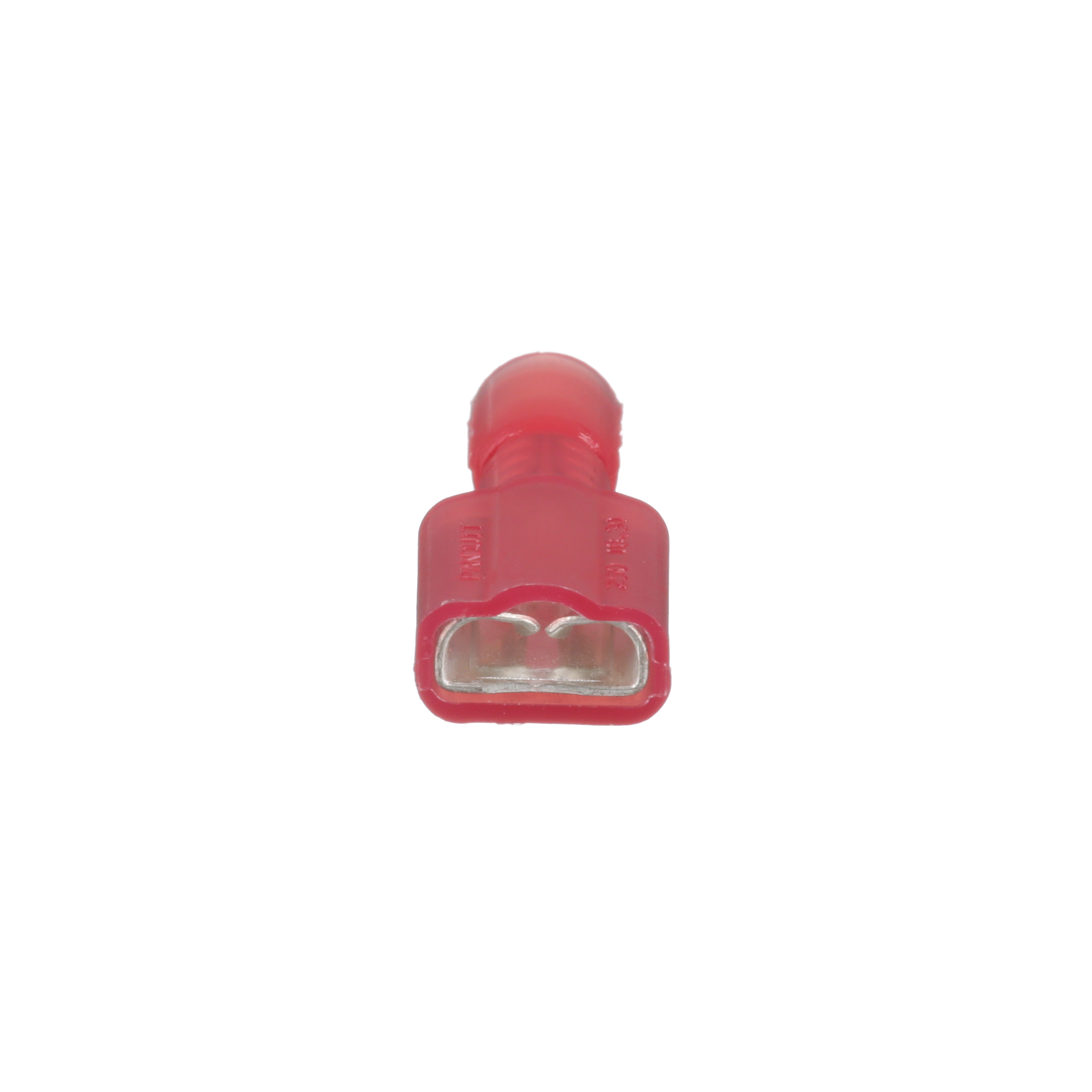

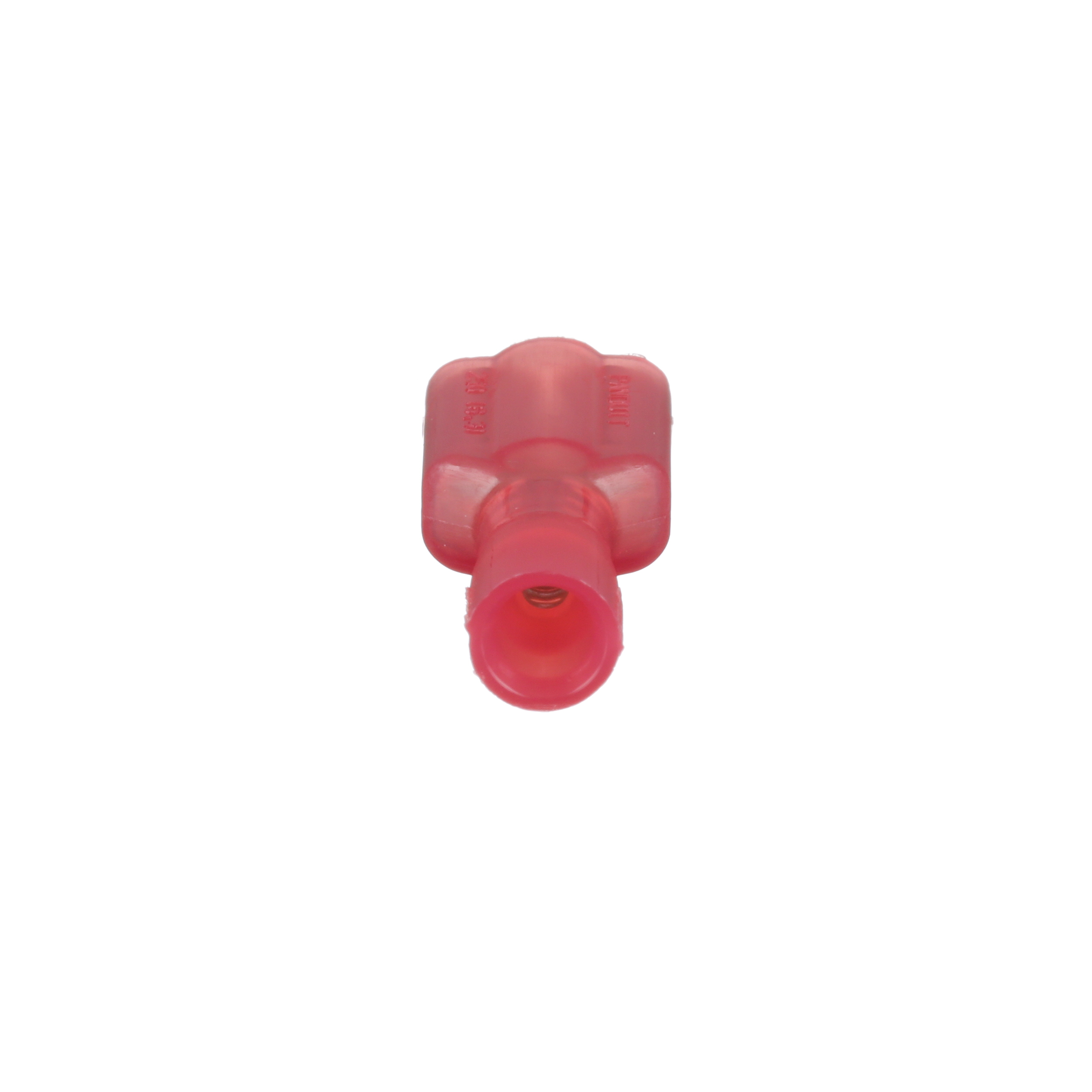

Disconnect female funnel entry nylon 22-18AWG red 0.25x0.032"

Manufacturer: Panduit | Catalog # DNF18-250FIB-C | Electrozad South Part # 70866
$121.01 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
Female disconnect, nylon fully insulated. Funnel entry. Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost. Fully insulated design provides protection from electrical shorts. Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection. UL flammability UL 94V-2/HB, maximum insulation temperature 105..C.

Technical Information

Barrel Type
Butted Seam
Color Coding
Red
Insulation Material
Nylon
Material
Brass
Max Operating Temperature
105 degrees C
Standard
CSA,E2186,UL
Tab Size
6.3 x 0.8 mm
TC Connection
Funnel
Temperature Rating
105 degrees C
Type
Loose-Piece
Wire Size
0.5 - 1.5 mm²

Packaging

Package Qty
100

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983827114
Color
Red
Finish
Tin Plated
GTIN
00074983827114
Product UPC
07498382711

Dimensions

Height
0.22 in
Overall Length
0.84 in
Width
0.35 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
