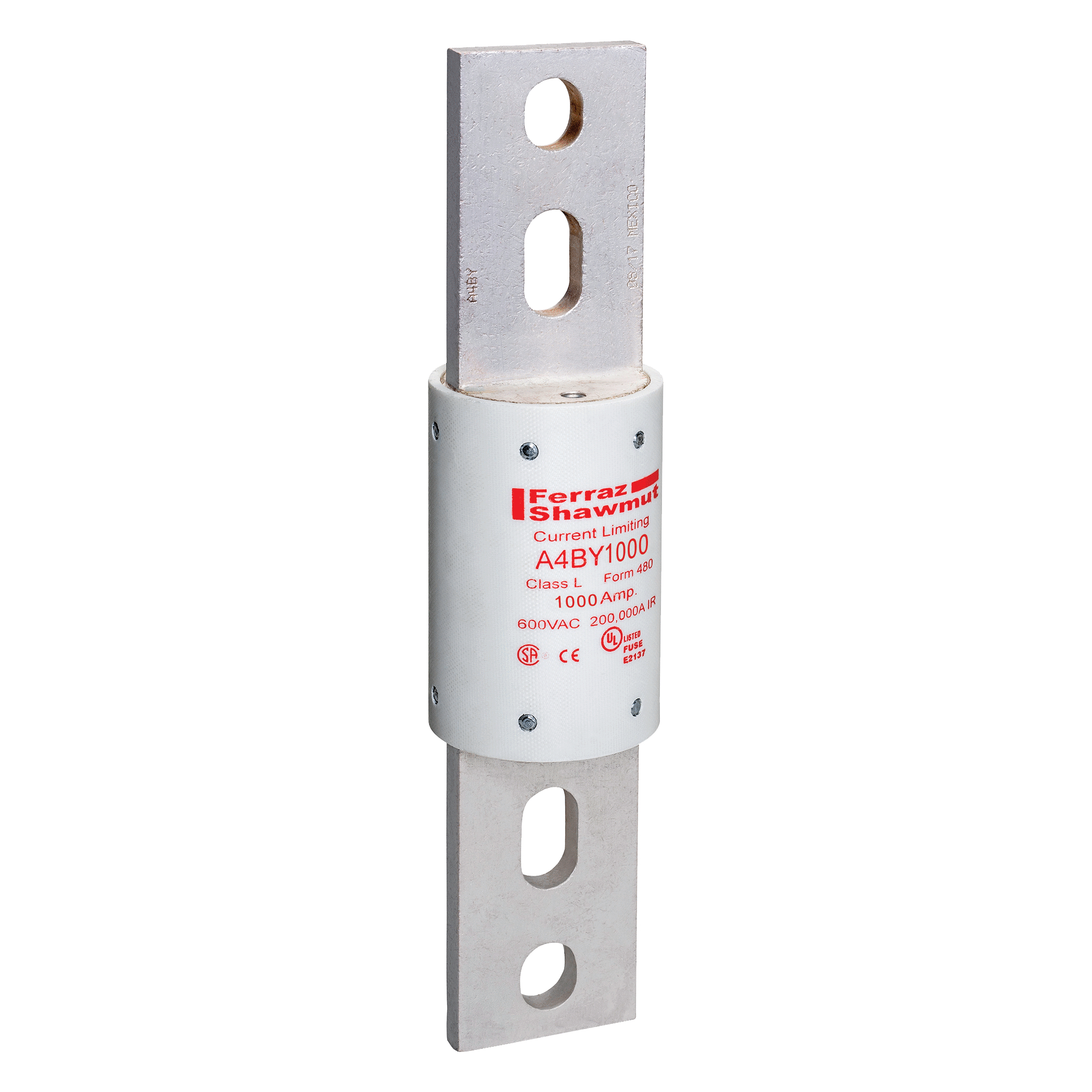

Product image for MERSEN A4BY1000 FUSE HRC-L STD 1000A 600VAC STD AMPTRAP 4SEC TIME DELAY CLASS L 1200A BODYSIZE BLADE TYPE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

MERSEN A4BY1000 FUSE HRC-L STD 1000A 600VAC STD AMPTRAP 4SEC TIME DELAY CLASS L 1200A BODYSIZE BLADE TYPE

Manufacturer: Ferraz Shawmut Mersen | Catalog # A4BY1000 | Electrozad South Part # 70922
$367.88 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Amp-Trap A4BY fuses have been the industry's favorite when it comes to protecting service entrance equipment, feeder circuits, and circuit breakers. The A4BY is a 100percent rated device and may be applied at continuous currents up to its ampere rating. A 4-second minimum time delay at 500percent rating allows the A4BY to pass normal current surges and to coordinate with ground fault relays.

Technical Information

Amperage
1000 A
Applications
For Mains, Feeders, Circuit Breakers, Load Centers, Panelboards, Switchboards, Metering Centers
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class L
Insulation Material
GMG
Interrupt Rating
200 kA
Mounting Type
Bolt-On
Rated Voltage AC
600 V
Rated Voltage DC
300 V
TC Connection
Blade
Terminal Material
Silver-Plated Copper
Terminal Type
Blade
Type
Time-Delay

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001939144
Class
L
Construction
Glass Melamine
GTIN
10782001939141
Product UPC
78200193914
Weight
4.28 lb

Dimensions

Diameter
2.5 in
Length
10.75 in
