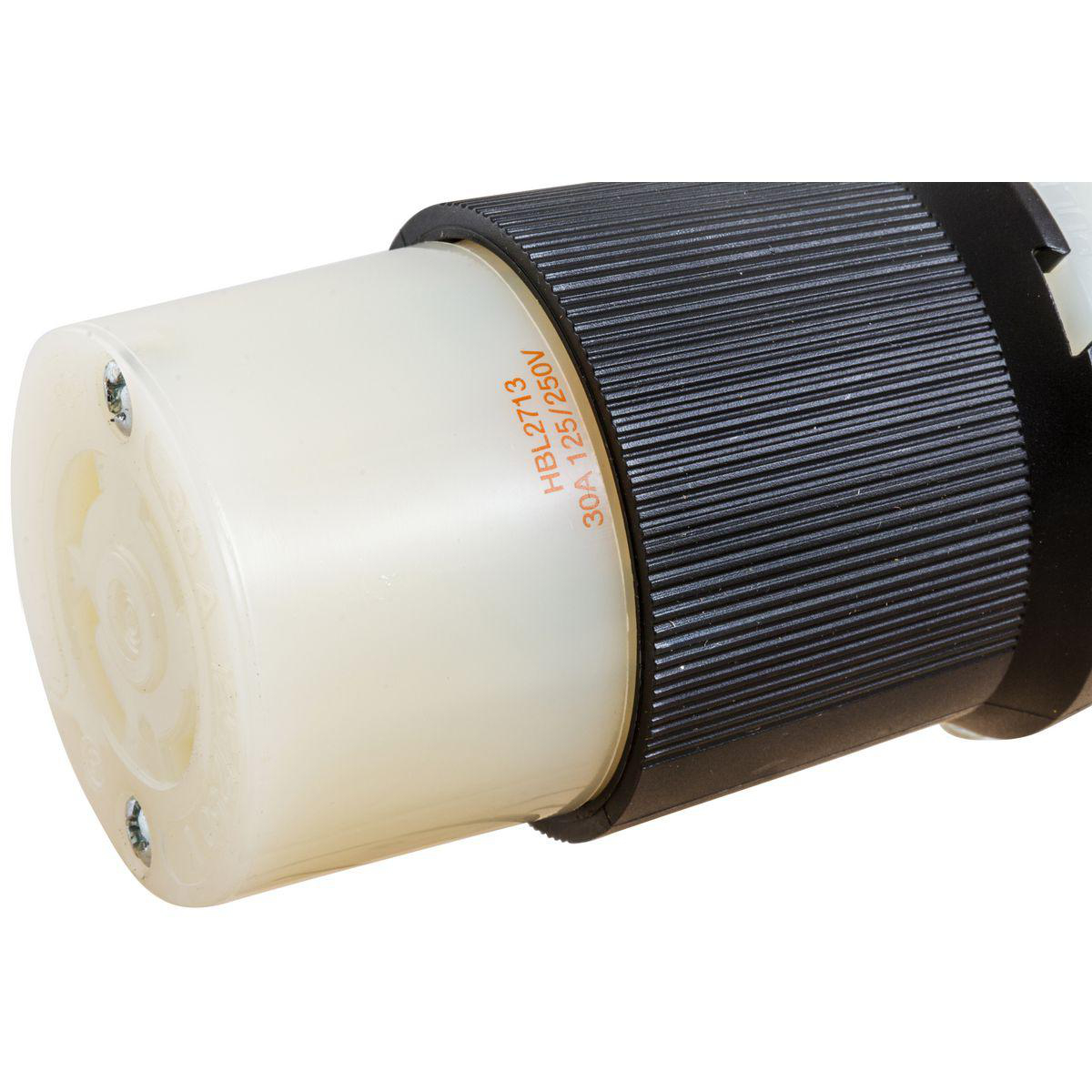

Connector nyl 2P3W 125/250V 30A L14-30R blk/wht

Manufacturer: Hubbell Wiring Devices | Catalog # HBL2713 | Electrozad South Part # 71095
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Twist-Lock® insulgrip connector body made of nylon with 3 pole, 4 wire grounding, 125/250 V AC, 30 A. 0.35 to 1.15 inch cord diameter.

Technical Information

Amperage
30 A
Applications
Heavy Duty Industrial
Conductor Size
12-8 AWG
Connection Type
Pressure Screw
Current
30 A
Material
Nylon
NEMA
L14-30R
Number of Conductors
4-Wire Grounding
Number of Phases
1
Number of Poles
3,3
Number of Wires
4
Operating Temperature
-40 degrees C
Size
2.33 in x 2.33 in x 3.86 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Pressure Screw Terminal
Temperature Rating
Maximum Continuous: 75degrees C; Minimum Continuous: -40degrees C w/o impact, -25degrees with impact.
Type
Connector Body
Voltage
125/250 V
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585039176
Color
Black and White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTIN
00783585039176
Product UPC
78358503917
Weight
0.35 lb

Dimensions

Height
3.86 in
Length
2.33 in
Width
2.33 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
