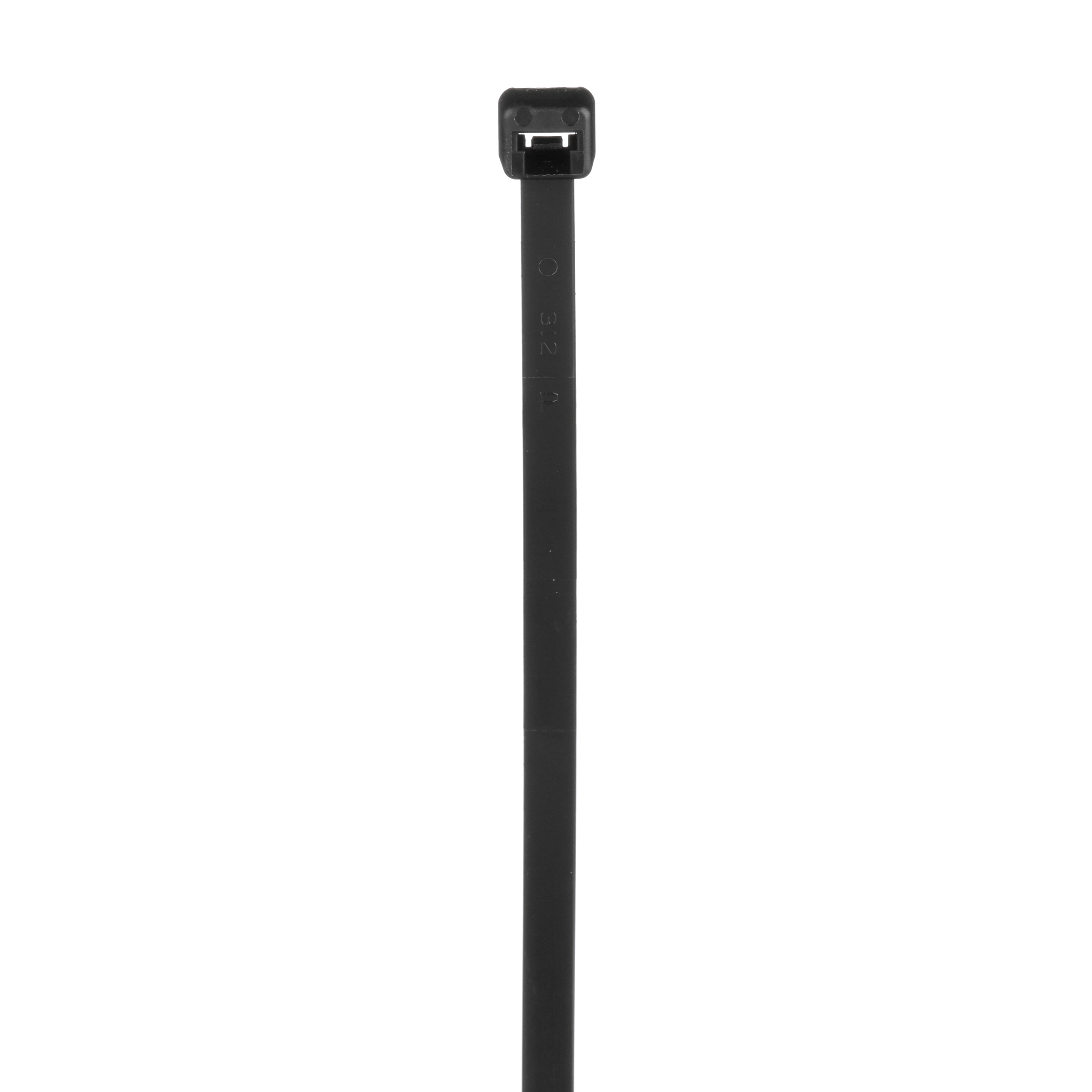

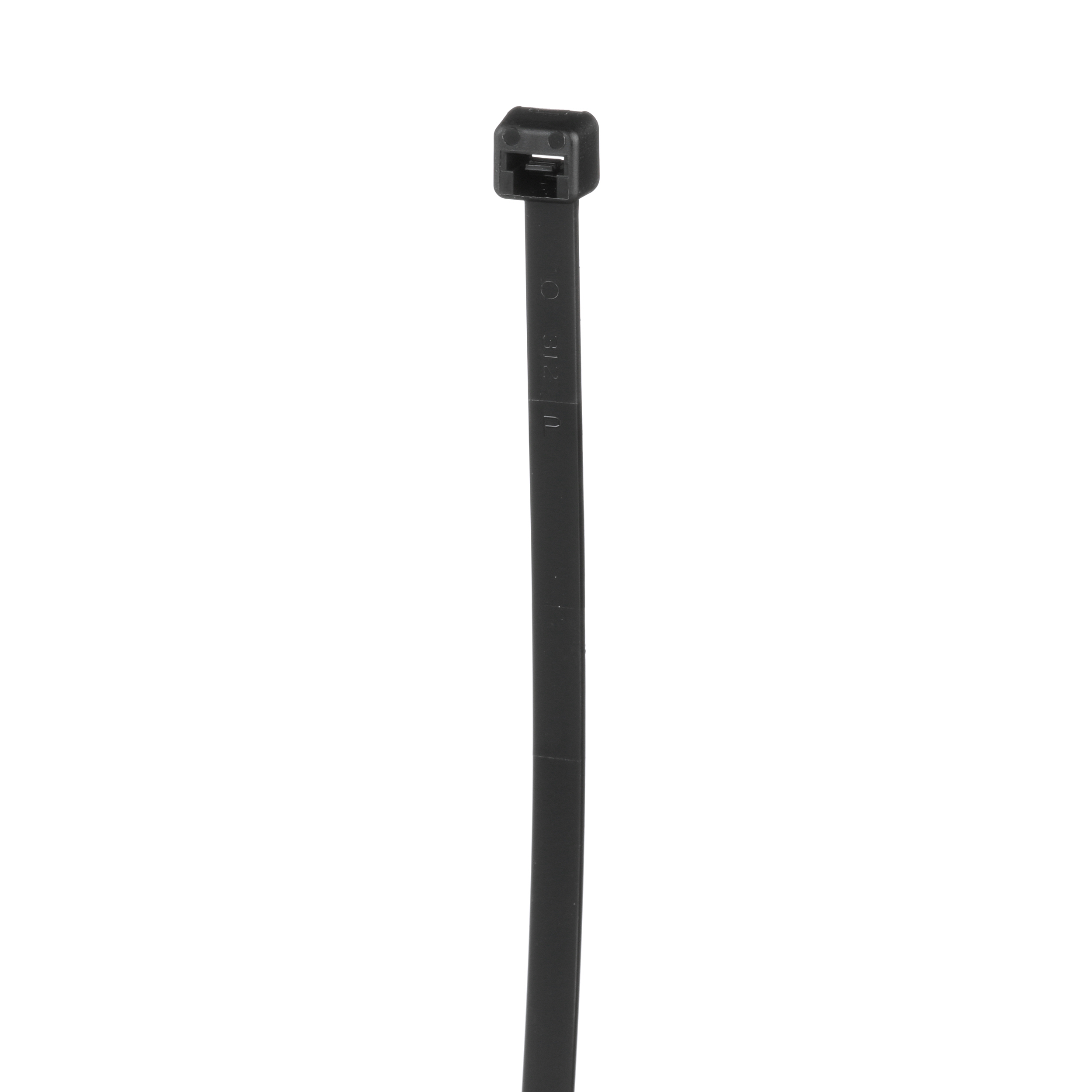

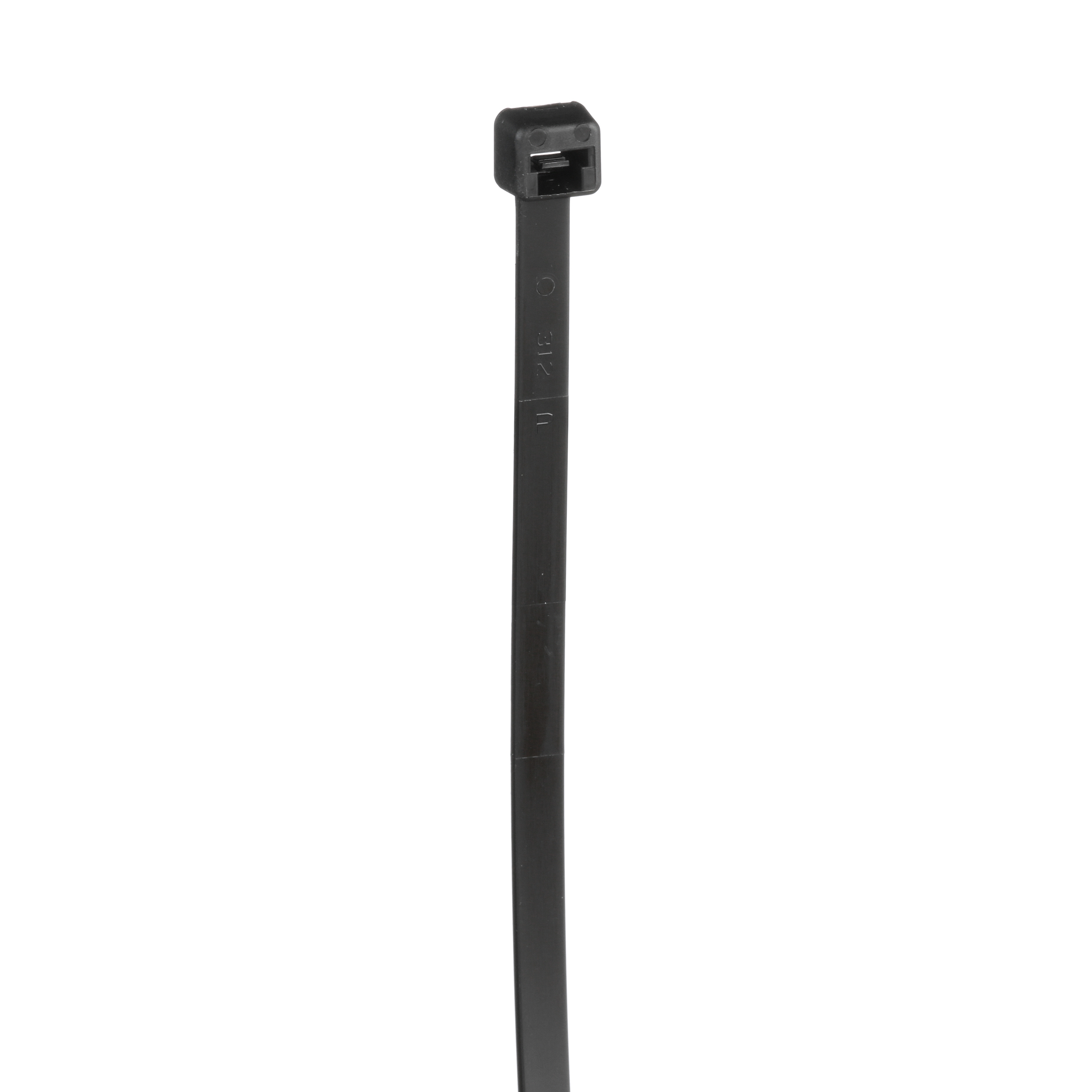

Product image for PANDUIT PLT3S-C0 PAN-TY 11.5"LONG TS STANDARD LOCKING CABLE TIE .190"WIDE BLACK 50LBS-MLS
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

PANDUIT PLT3S-C0 PAN-TY 11.5"LONG TS STANDARD LOCKING CABLE TIE .190"WIDE BLACK 50LBS-MLS

Manufacturer: Panduit | Catalog # PLT3S-C0 | Electrozad South Part # 71122
$61.34 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Pan-Ty® Locking tie. Standard cross section. Weather resistant nylon 6.6 material. Standard package. Minimum loop tensile strength 50 lb. Operating temperature -60 to -85..C. One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. General application. Greater resistance to damage caused by ultraviolet light indoor or outdoor use. Versatile cable ties can be used in countless applications. Lowest threading force of any one-piece cable tie in the industry. Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation.

Technical Information

Applications
For General, Outdoor use
Body Thickness
0.052 in
Body Width
0.19 in
Bundle Diameter
76 mm
Material
Weather Resistant Nylon 6/6
Max Operating Temperature
185 degrees F
Minimum Operating Temperature
-60 degrees C
Standard
CSA,E2186,UL
Temperature Rating
-60 to 85 degrees C
Tensile Strength
222 N
Type
Internal Toothing, Standard, Locking

Packaging

Package Qty
100
Standard Packaging Qty
100/Pack

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Ty

General Product Info

12-Digit UPC
074983540679
Color
Black
Environment
Indoor,Outdoor
GTIN
00074983540679
Product UPC
07498354067

Dimensions

Length
292 mm
Overall Length
292 mm
Thickness
1.3 mm
Width
4.8 mm

Certifications & Compliance

Country of Origin
Malaysia
