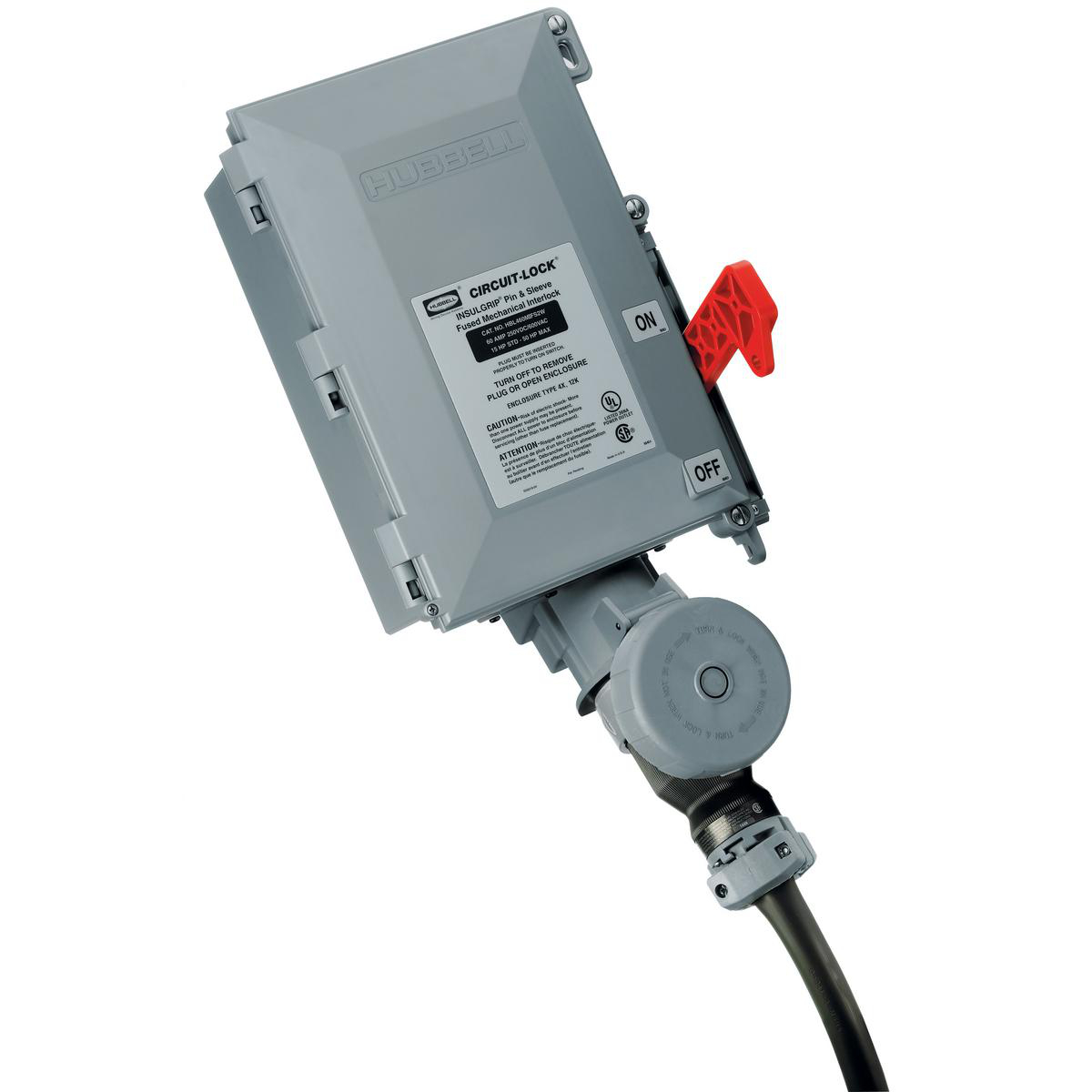

Product image for HUB HBL430MIS2W INSULGRIP MECH INTERLOCK 30A UNFUSED
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

HUB HBL430MIS2W INSULGRIP MECH INTERLOCK 30A UNFUSED

Manufacturer: Hubbell Wiring Devices | Catalog # HBL430MIS2W | Electrozad South Part # 71243
$1,805.86 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual
Hubbell CIRCUIT-LOCK motor disconnect withstand 10 000 amp fault short circuit up to 2200 volts. Available in toggle switch unit version 2-3 poles, 30-40-50-60-85 amp, 120-240-480-600 volts alone or enclosures built-in NEMA 1 (aluminium or plastic) toggle control, NEMA 3/3R (aluminium or thermoplastic rain tight) slider control, NEMA 4X ( stainless steel or thermoplastic) rotary control. Auxiliary contacts NO/NC for PLC, class J fuses protection and pin and sleeve receptacle (optional).

Technical Information

Amperage
30 A
Applications
High Ampacity Connections
Conductor Size
12 - 8 AWG
Current
30 A
Grounding
Grounding
Material
Composite
Mounting Type
Screw
Number of Phases
1,3
Number of Poles
3
Number of Wires
4
Operating Temperature
-40 degrees C
Size
Standard Sized Product
Standard
Canada,For US,UL
TC Connection
Pressure Plate
Type
Fused, Mechanically Interlocked, Single
Voltage
250 V
Wattage
18000 W
Wire Count
4
Wire Size
12 - 8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585514871
Color
Gray
Environmental Conditions
Watertight
GTIN
00783585514871
Product Series
Non-Fused Interlocks
Product UPC
78358551487
Weight
15.5 lb

Dimensions

Height
9.600 in
Length
20.600 in
Width
12.4 in

Certifications & Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
Poland
