BURNDY GD1826 CONN GRD 2" 4-2/0

Manufacturer: Burndy | Catalog # GD1826 | Electrozad South Part # 71539
$120.48 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure

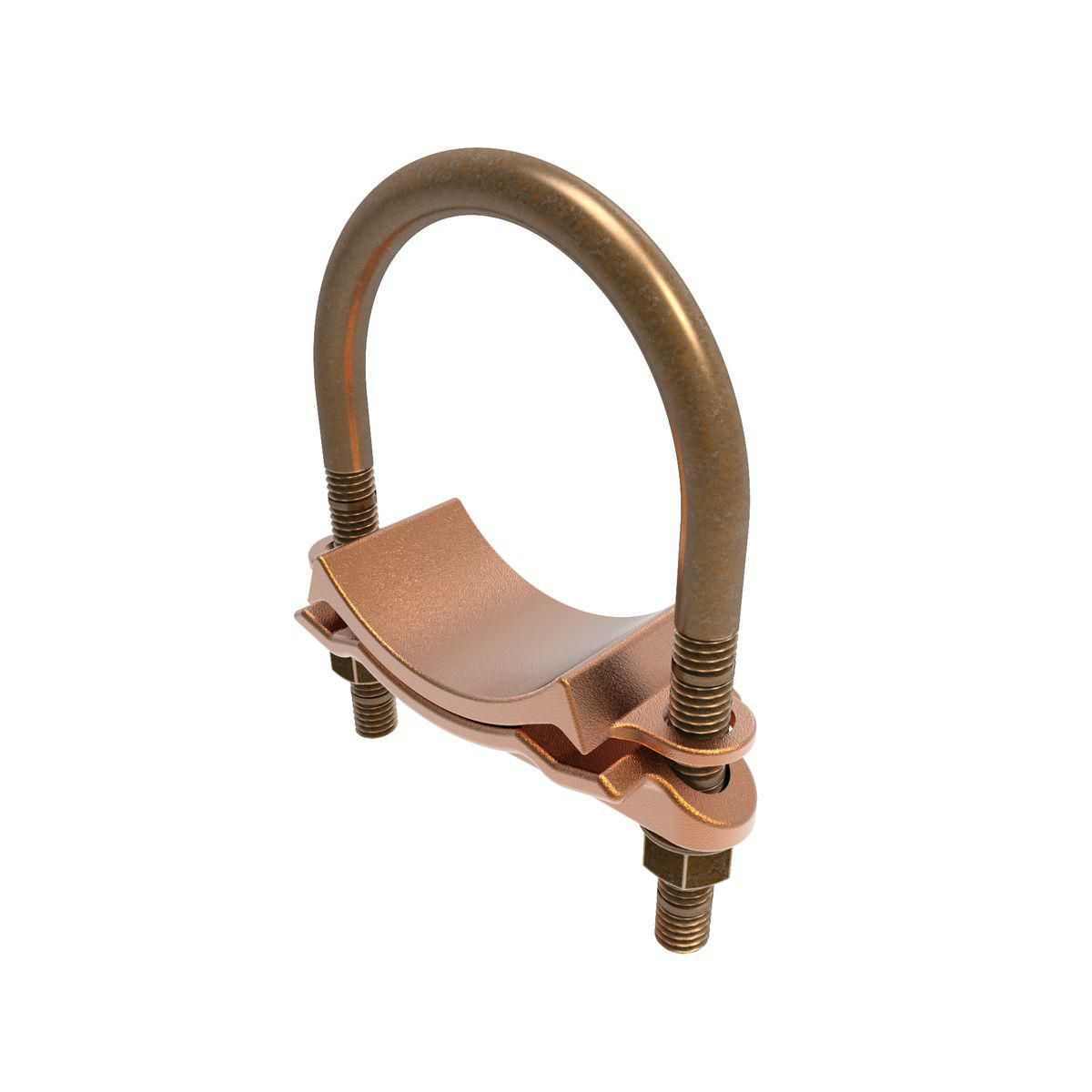

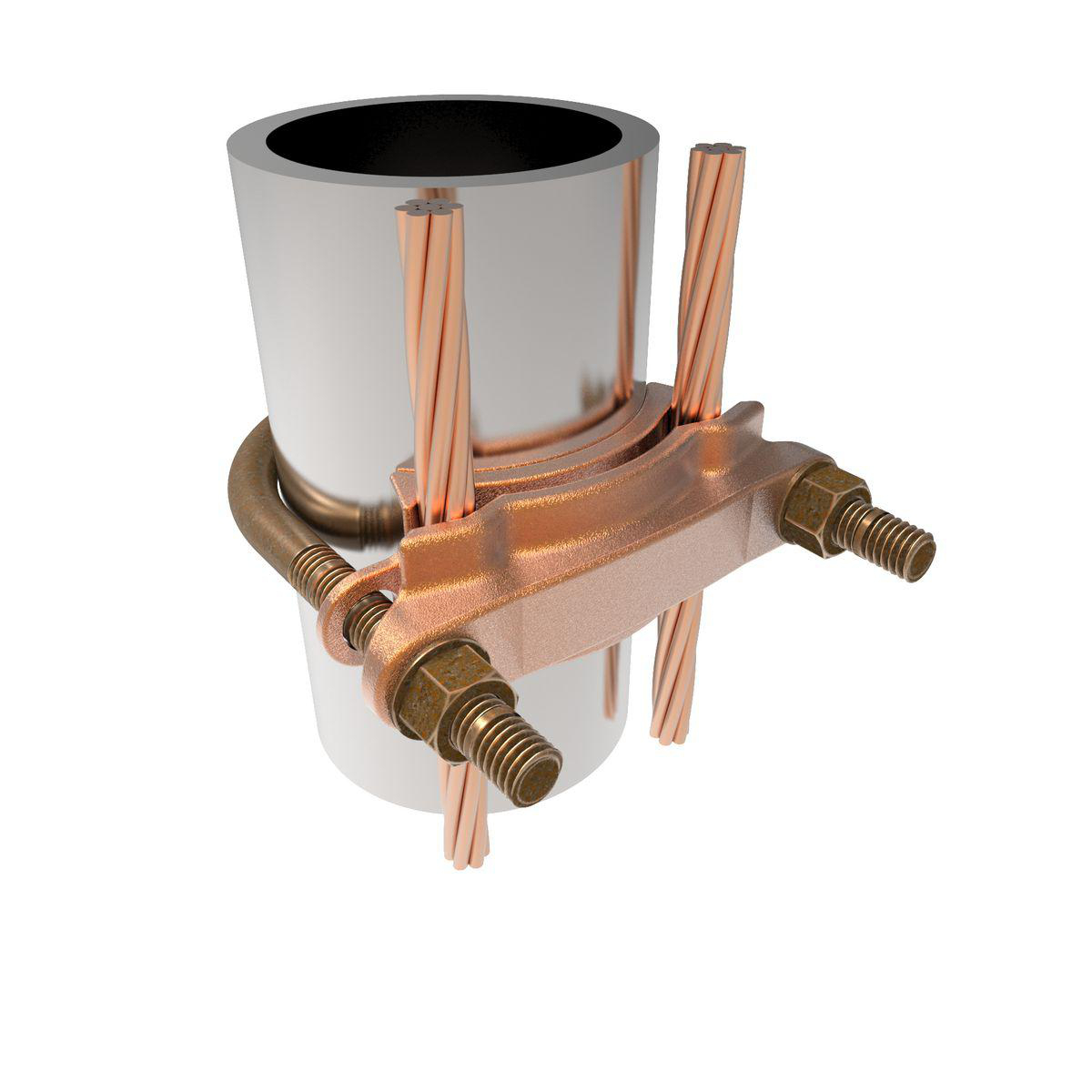

Mechanical Grounding Connector, 2 Parallel Cables to Rod or Pipe, 4 AWG ( Sol.) - 2/0 AWG (Str.), 2" to 2-3/8" Rod, 2" Pipe.

Technical Information

Applications
For 2 in IPS Water Pipe, Joining a Range of Two Parallel Copper Cables to Rod or Pipe and Burial in Ground or Concrete
Bolt Size
3/8 IN
Conductor Size
(2) 4 AWG Solid - 2/0 AWG Stranded
Material
Copper Alloy Body, Silicone Bronze Hardware
Plated?
No
Plating Type
Unplated
Type
GD

Manufacturer Information

Brand
Burndy
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810238943
GTIN
00781810238943
Product UPC
78181023894

Dimensions

Height
4.38 in
Length
3.69 in
Width
1.31 in

Certifications & Compliance

Country of Origin
USA
CSA
