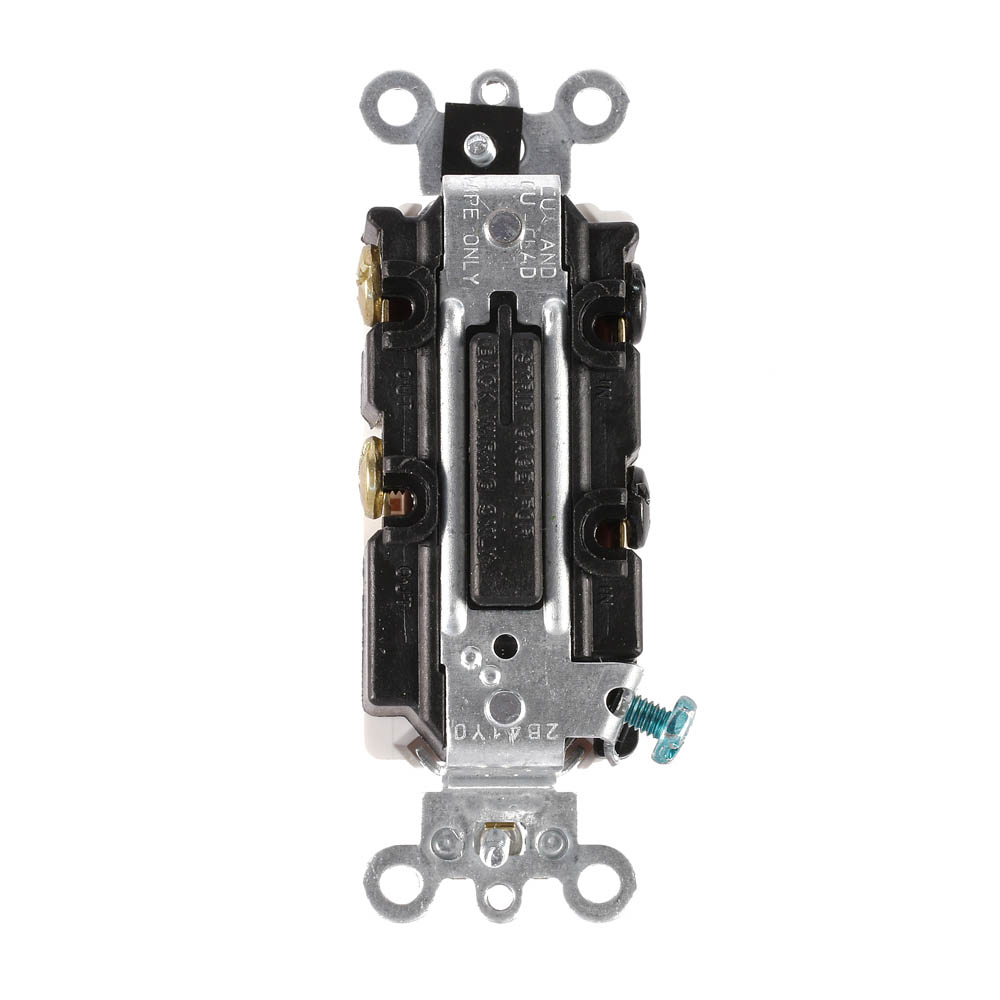

Product image for LEVITON 5624-2W SWITCH DECORA WHITE 20A 125V 277V 4WAY BACK & SIDE WIRE
Image thumbnail 0
Image thumbnail 1
Email

LEVITON 5624-2W SWITCH DECORA WHITE 20A 125V 277V 4WAY BACK & SIDE WIRE

Manufacturer: Leviton Manufacturing | Catalog # 5624-2W | Electrozad South Part # 71564
*Call For Price*
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Installation / Instruction Manual MSDS | SDS Safety Sheet
Decora plus™ AC quiet commercial specification grade rocker switch features Full rated current capacity with tungsten, fluorescent or resistive loads. Back and side-wiring terminals accept both solid and stranded wire to ease installation. New architecturally-styled smooth-action concave rocker.

Technical Information

Actuator
Rocker
Amperage
16 A
Applications
For Commercial
Body Material
Thermoplastic Polyester
Connection Type
Back Wired,Side Wired
Contact Rating
120/277 V
Device Type
Rocker Switch
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic, Steel Strap
Max Current
16 A
Mounting Type
Box
NEMA
WD-1
Number of Poles
2
Operating Temperature
-40 degrees C
Size
46 H x 1.76 W x 1.60 D IN
Standard
ANSI C-73
TC Connection
Back and Side Wired
Temperature Rating
-40 to 120 degrees C
Temperature Rise
30 degrees C
Terminal Type
Screw
Termination Type
Back Wire,Side Wire
Torque
12 lb-in
Type
4-Way, Halogen Free
Voltage
120/277 V

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477519387
Color
White
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTIN
00078477519387
Product UPC
07847751938

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
