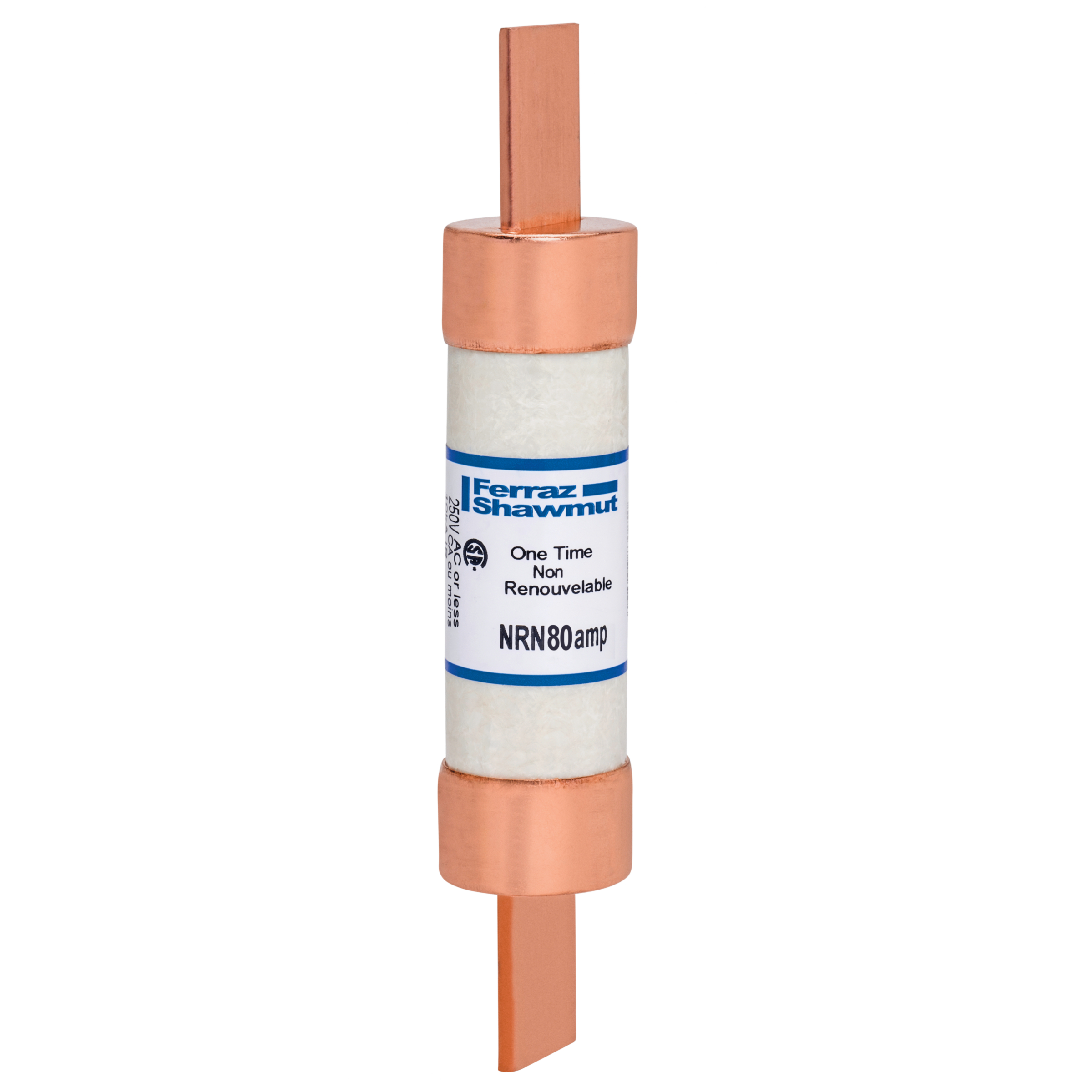

Fuse NRN - Class H 250VAC 80A Blade

Manufacturer: Ferraz Shawmut Mersen | Catalog # NRN80 | Electrozad South Part # 71705
$8.99 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen NRN (250V) and NRS (600V) fuses are standard non-time delay fuses, with a 10kA short circuit rating. 250 Volt NRN 15 amp through 60 amp fuses are certified as Type "P" fuses, satisfying the Canadian Electrical Code for low melting-point non-time delay fuses. Also qualifying for Type "P" are OTN15 through OTN60, which are Class K-5 fuses with a 50kA short circuit rating (found in the OT/OTS section of this cata log).

Technical Information

Amperage
80 A
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class H
Insulation Material
PolyTube
Interrupt Rating
10 kA
Mounting Type
Clip
Rated Voltage AC
250 V
Terminal Material
Copper
Terminal Type
Blade
Type
Non Time-Delay

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
068938830236
Class
H
GTIN
30068938830237
Product UPC
06893883023
Weight
0.29 lb

Dimensions

Diameter
1.06 in
Length
5.88 in
