SIED Q370 BREAKER 70A 3P PLUGIN | Electrozad South

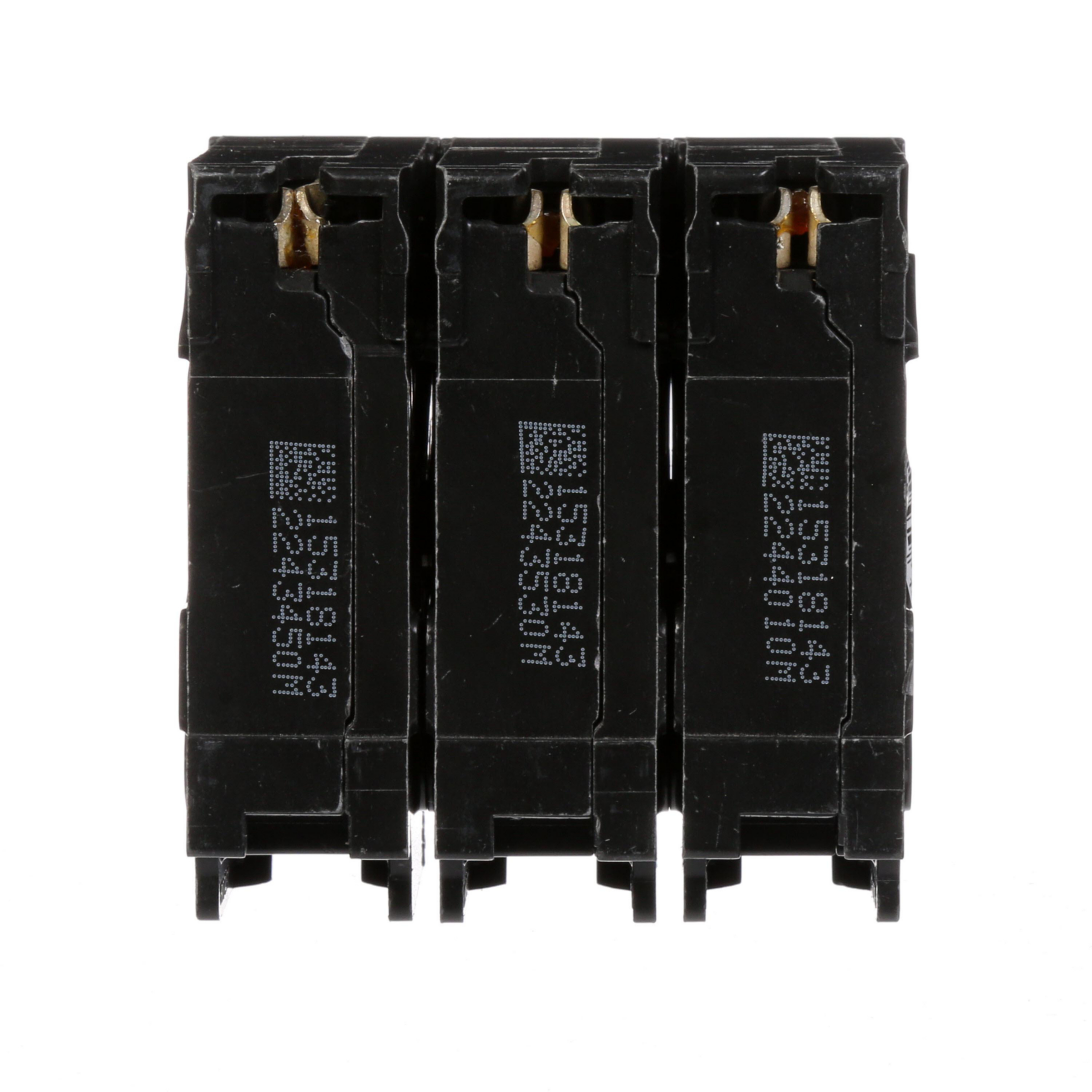

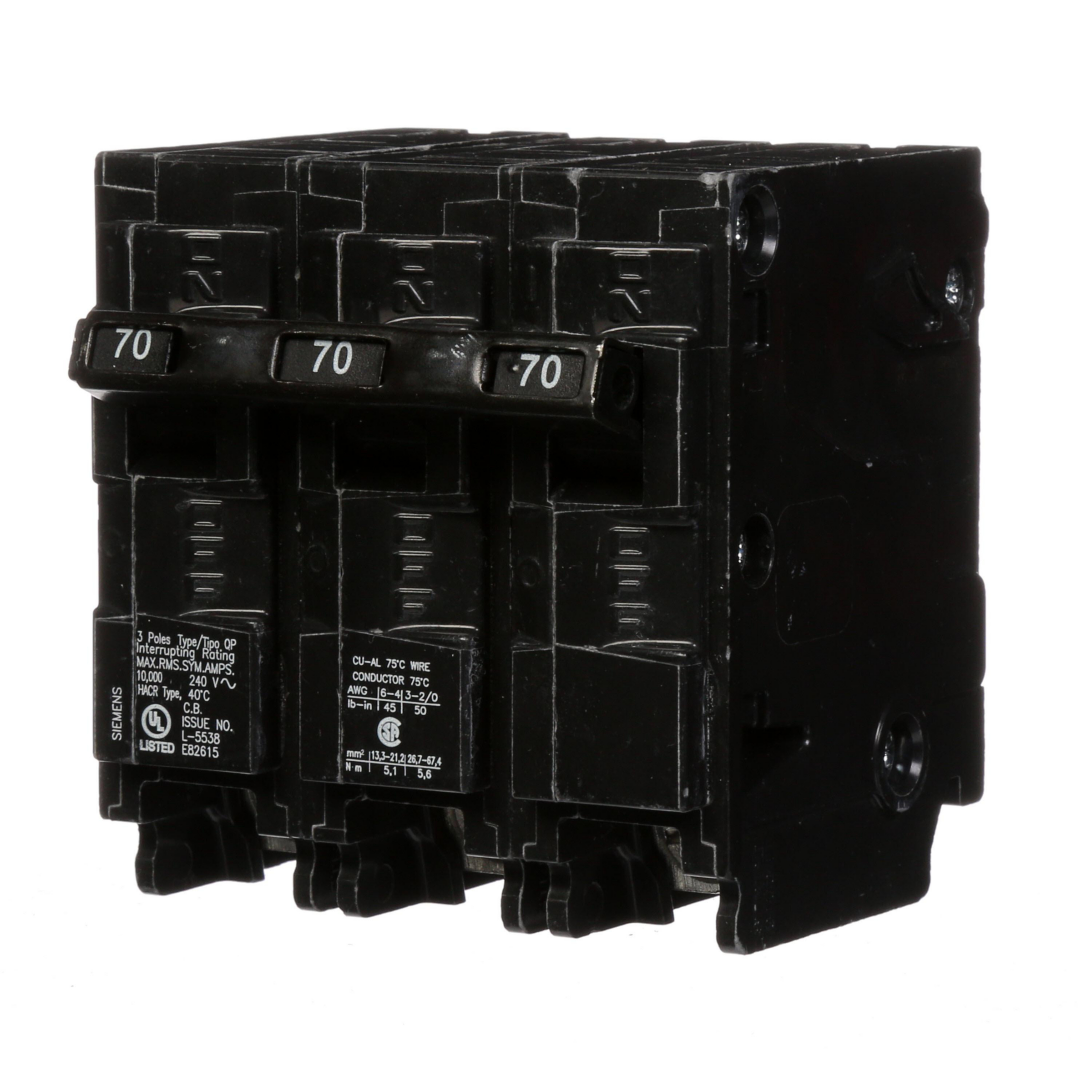

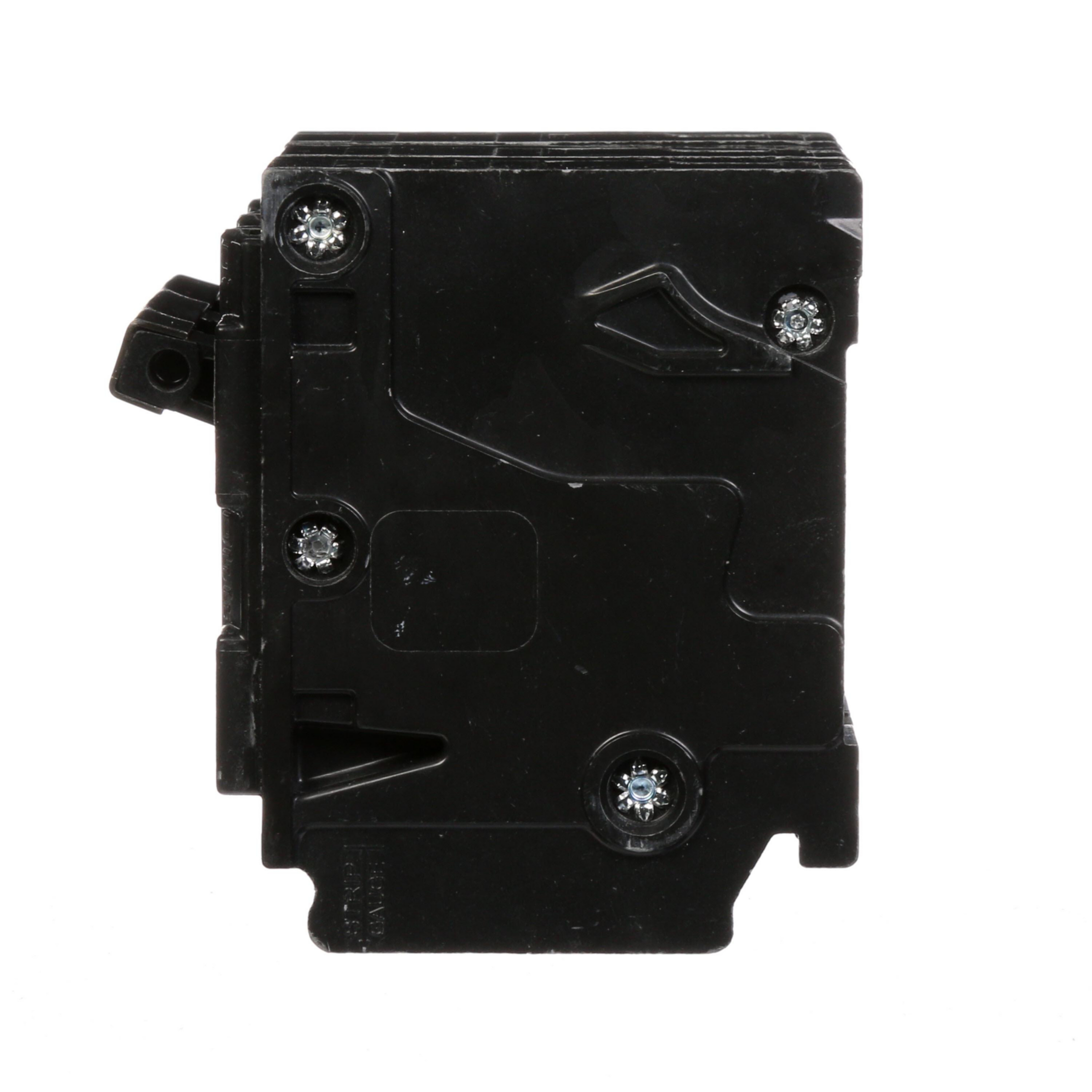

Product image for SIED Q370 BREAKER 70A 3P PLUGIN
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

SIED Q370 BREAKER 70A 3P PLUGIN

Manufacturer: Siemens Distribution | Catalog # Q370 | Electrozad South Part # 71843
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page
Molded case circuit plug-in breakers for panelboard mounting with insta-wire in 3 types of tripping speed Q=10KA, QH=22KA. Available in versions 1 pole 120vac, 2 poles common trip 120/240vac, 2 poles common trip 240vac and 3 poles common trip 208Yvac.

Technical Information

Actuator
N/A
Amperage
70 A
Applications
Electrical Distribution
Conductor Size
8-4AWG(CU)/8-2AWG(AL)
Connection Type
Plug-In
Enclosure
N/A
Frame
QP(125A)
Interrupt Rating
10 kA
Load Rating
N/A
Number of Phases
-99999
Number of Poles
3
Operating Temperature
N/A
TC Connection
PLUG-IN
Trip Range
Thermal Magnetic
Trip Type
Thermal Magnetic
Type
QP/MP

Manufacturer Information

Brand
Siemens
Sub Brand
Circuit Breakers

General Product Info

12-Digit UPC
783643148451
GTIN
00783643148451
Product UPC
78364314845
Weight
0.995 lb

Dimensions

Height
3.4 in
Length
3 in
Width
3 in

Certifications & Compliance

Country of Origin
Mexico
