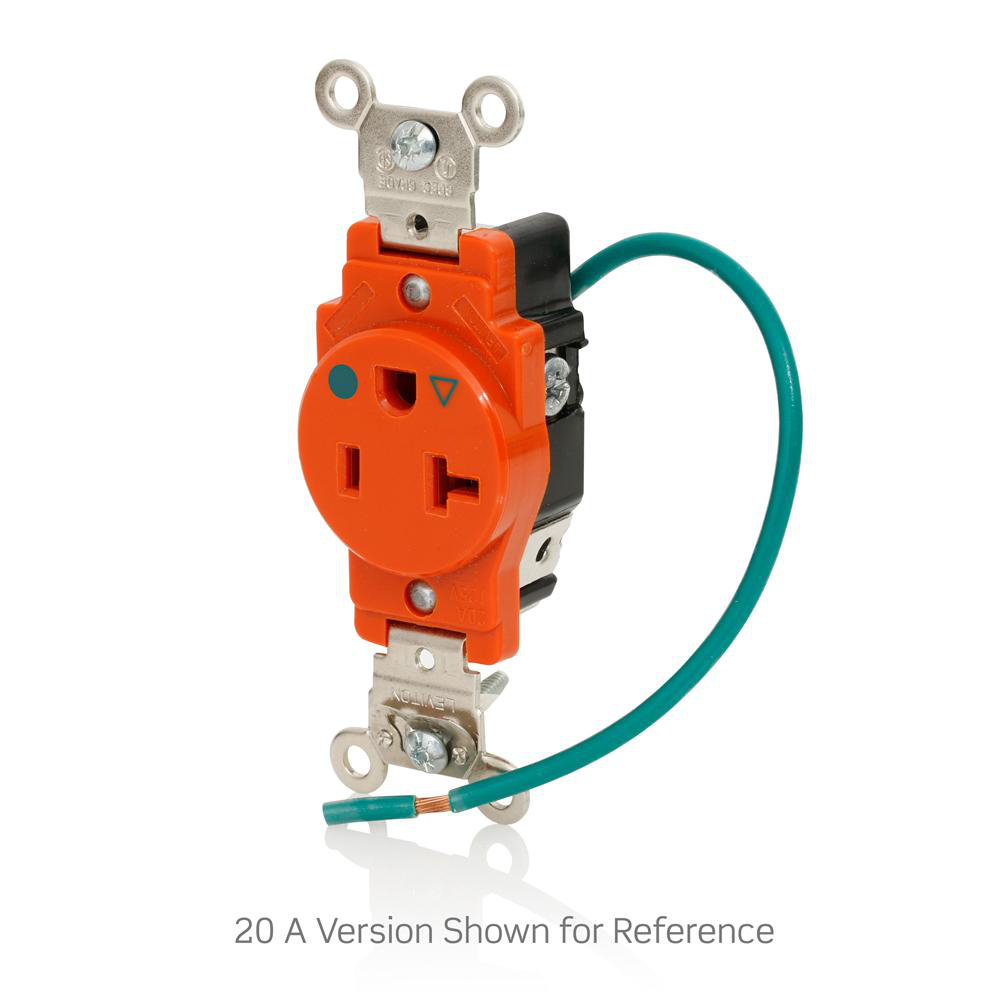

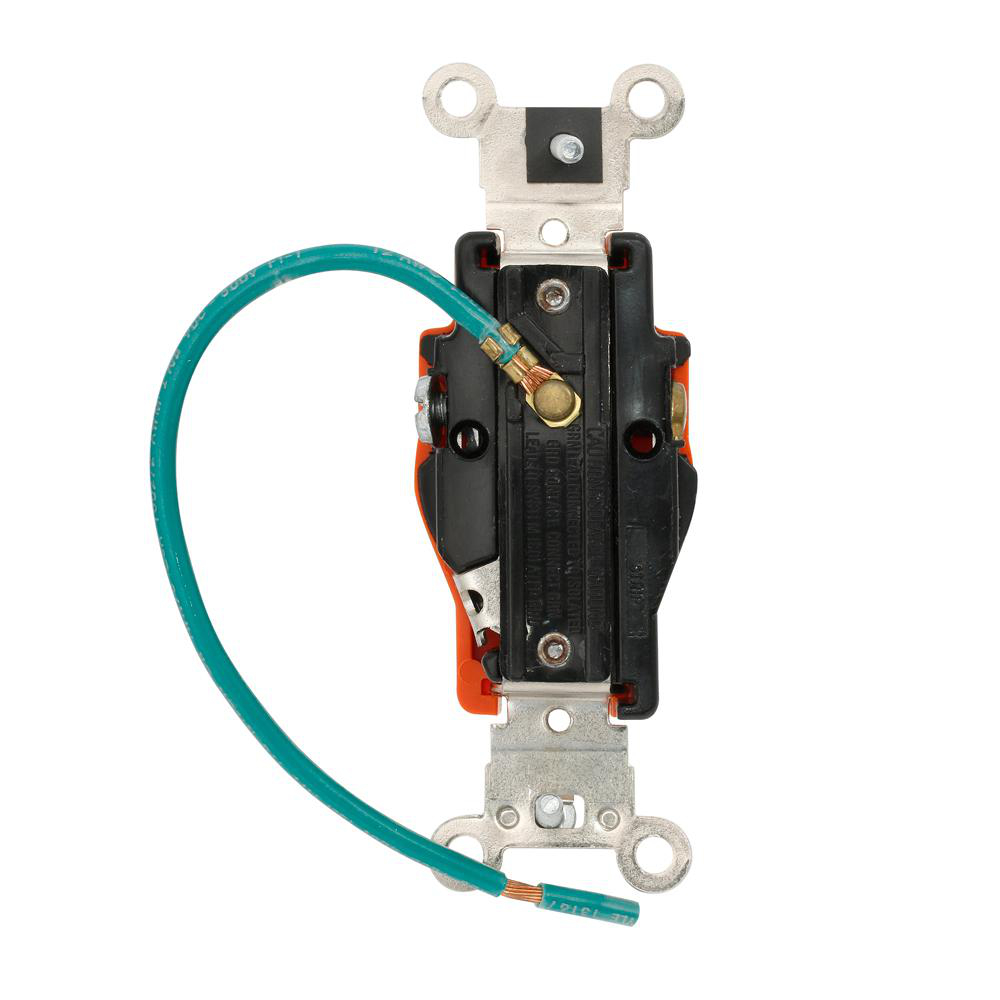

Receptacle straight 2P3W 125V 15A orange

Manufacturer: Leviton Manufacturing | Catalog # 8210-IG | Electrozad South Part # 7195
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL
Leviton hospital grade receptacle undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools. Isolated Ground, Back and side wired, Steel strap.

Technical Information

Amperage
15 A
Applications
For Hospital
Body Material
Nylon
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Device Type
Single Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Hospital
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Nylon
Mounting Type
Wall Box
NEMA
5-15R
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
46 H x 1.55 W x 1.12 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Type
Single Outlet,Straight Blade
Voltage
125 V
Wire Count
3
Wire Size
14 - 10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477029916
Color
Orange
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477029916
Product UPC
07847702991

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Please Contact Customer Service
