Reel Smart™ DNF14-250FIB-3K Disconnect, Blue, 14-16 AWG, 0.250 x 0.032" Tab | Electrozad South
Product image for Reel Smart™ DNF14-250FIB-3K Disconnect, Blue, 14-16 AWG, 0.250 x 0.032" Tab
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Reel Smart™ DNF14-250FIB-3K Disconnect, Blue, 14-16 AWG, 0.250 x 0.032" Tab

Manufacturer: Panduit | Catalog # DNF14-250FIB-3K | Electrozad South Part # 71959
$376.00 /m (1000 ea)
ea
Order in multiples of 3000 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

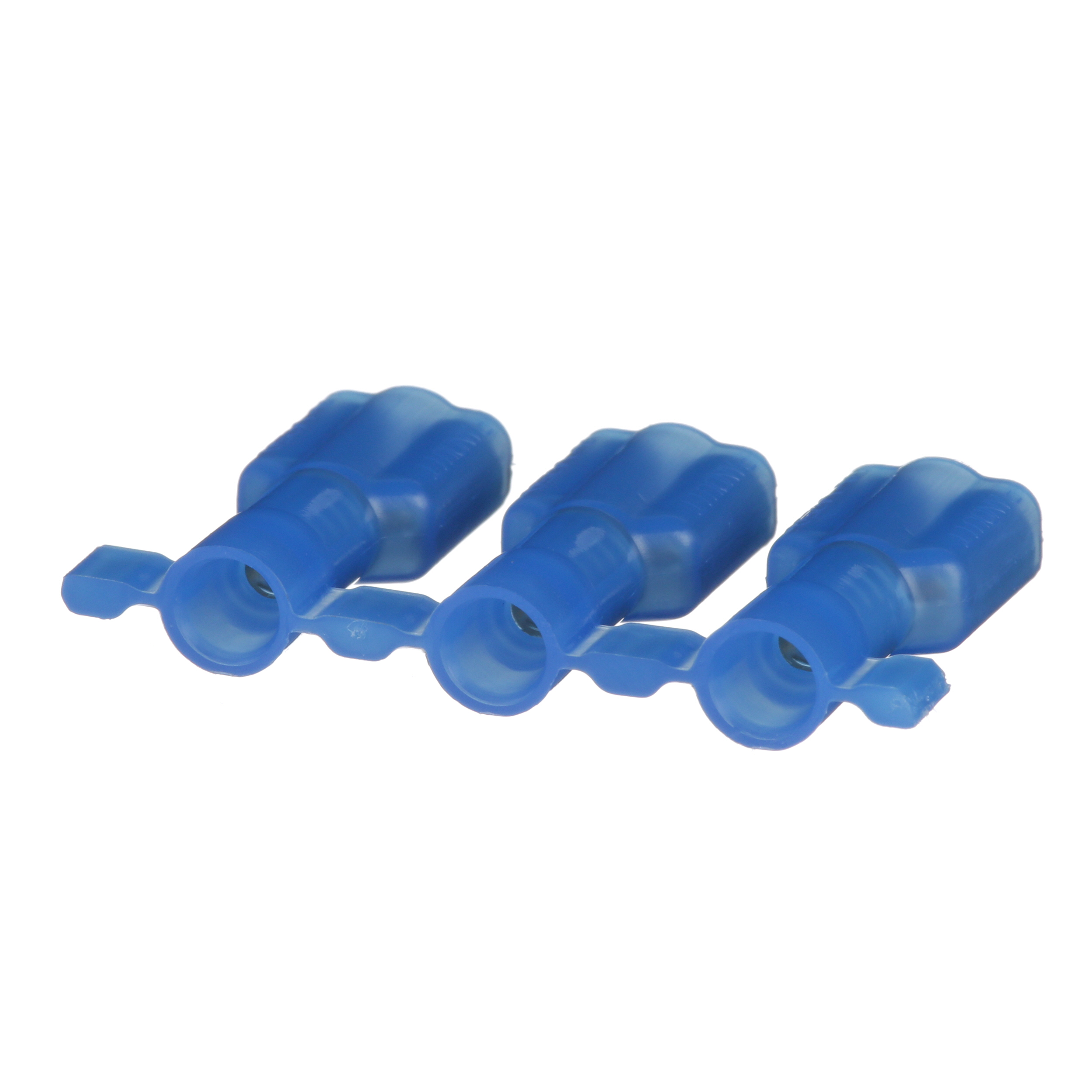

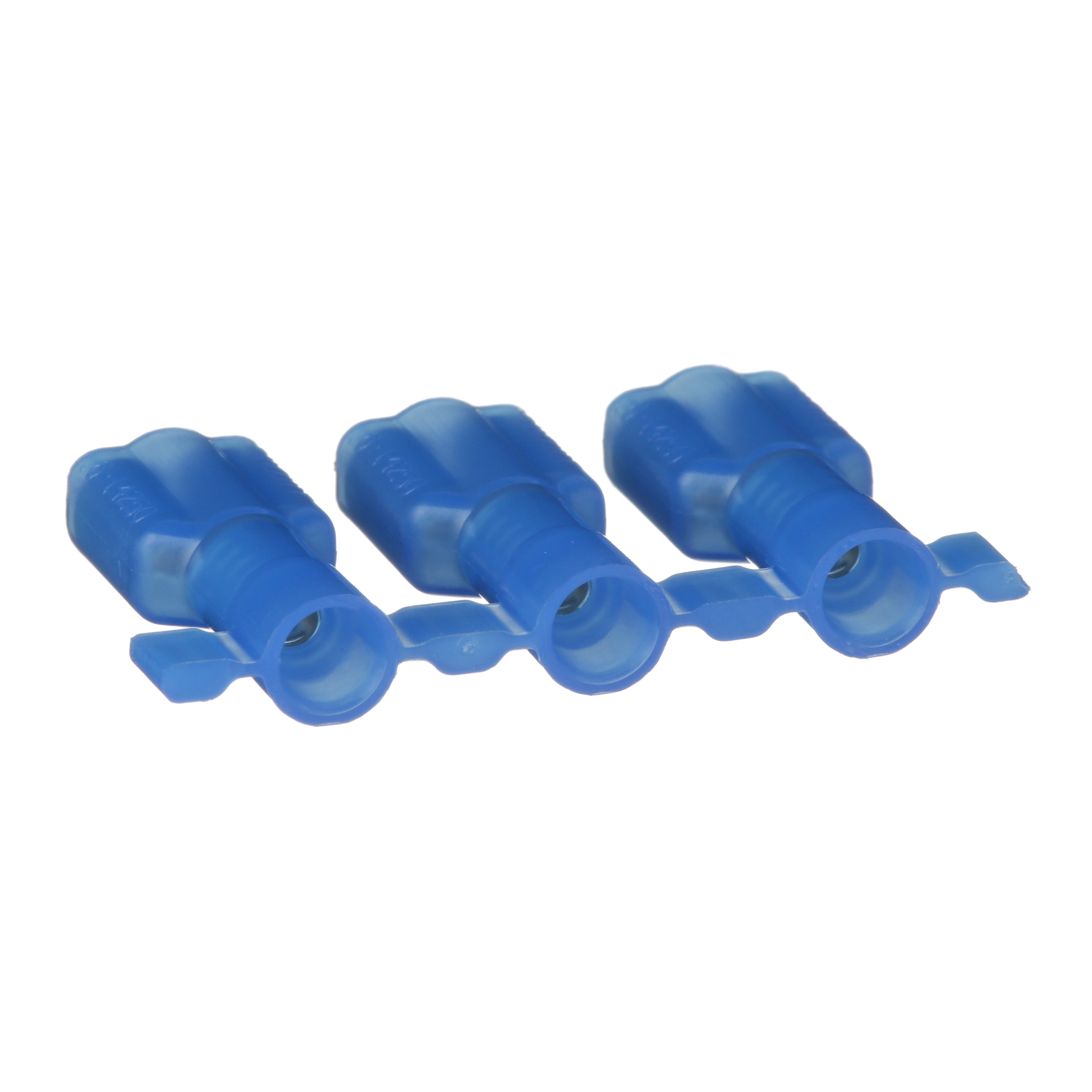

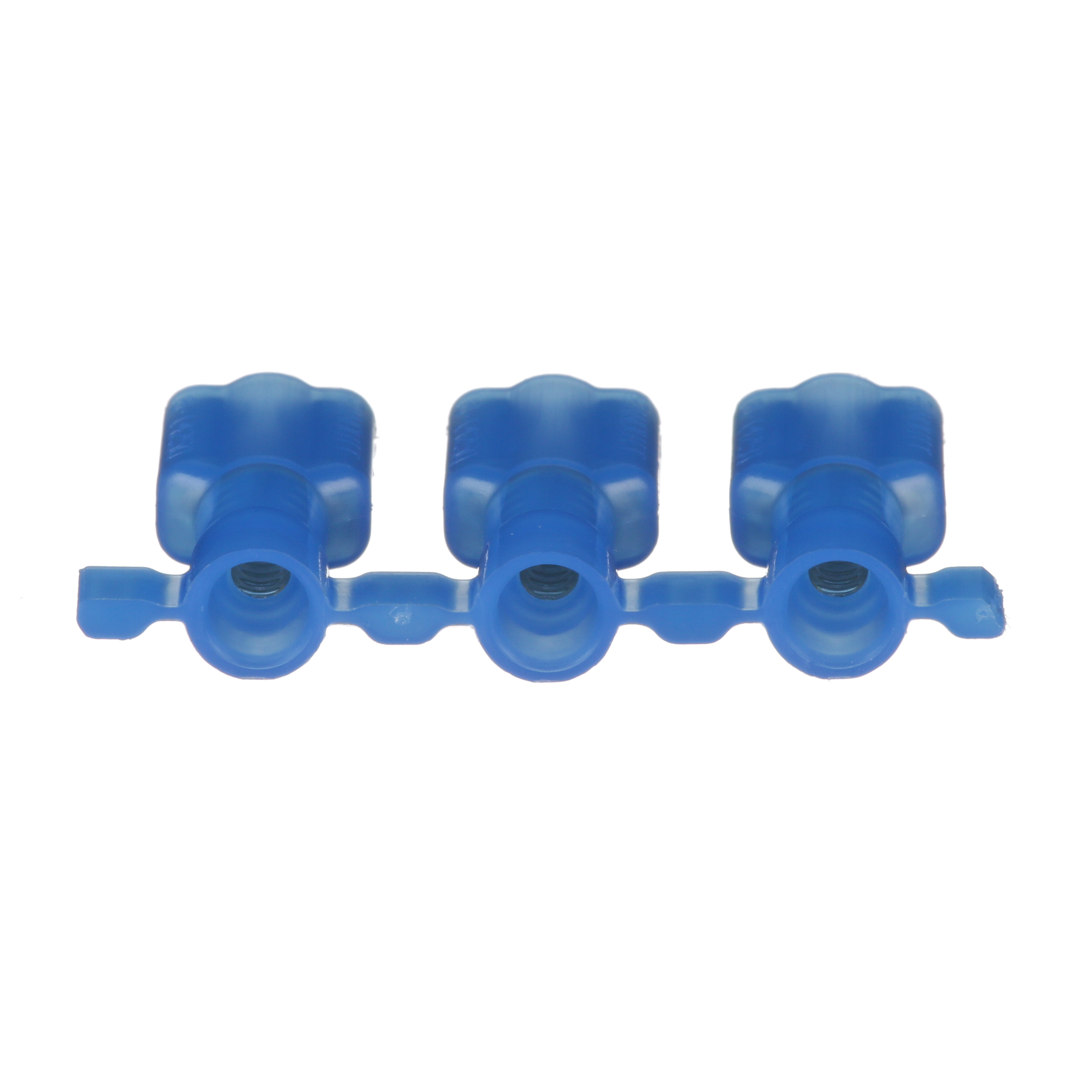

Panduit DNF14-250FIB-3K Female Disconnect

Technical Information

Barrel Type
Butted Seam
Conductor Size
16-14 AWG
Insulation Material
Nylon
Material
Brass
Max Operating Temperature
105 degrees C
Standard
CSA,E2186,UL
Tab Size
1/4 in x 0.032 in
TC Connection
Funnel
Temperature Rating
221 degrees F
Type
Insulated
Wire Size
1.5 - 2.5 mm²

Packaging

Package Qty
3000

Manufacturer Information

Brand
Panduit
Sub Brand
Reel Smart™

General Product Info

12-Digit UPC
074983826933
Color
Blue
Finish
Tin Plated
GTIN
00074983826933
Product UPC
07498382693

Dimensions

Height
0.22 in
Overall Length
0.84 in
Width
0.35 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
