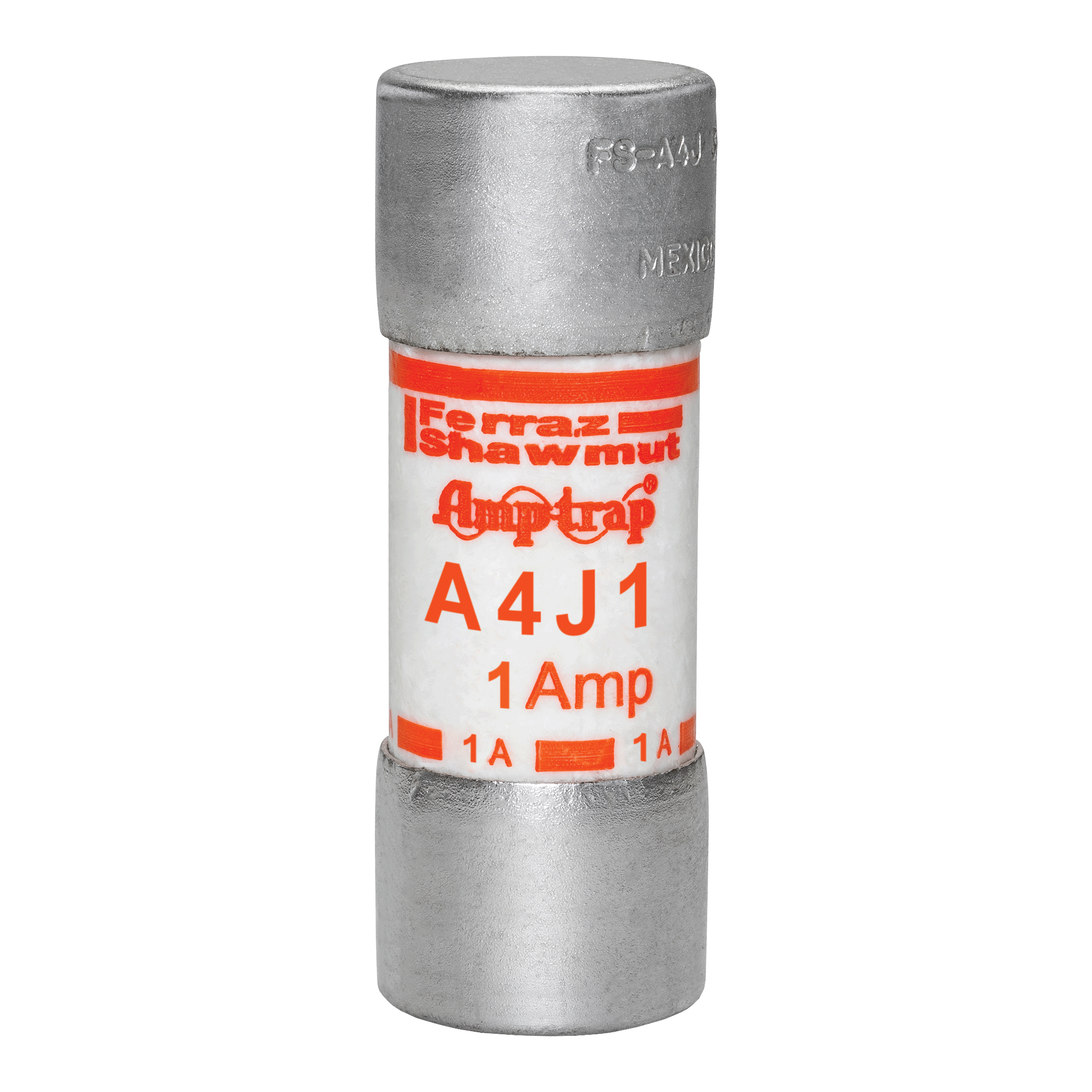

MERSEN A4J1 FUSE HRCI-J 1A 600VAC 300VDC FAST ACTING NON TIME DELAY

Manufacturer: Ferraz Shawmut Mersen | Catalog # A4J1 | Electrozad South Part # 71999
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Amp-Trap fast-acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.

Technical Information

Amperage
1 A
Applications
For Capacitors, Load Centers, Panelboards, Switchboards, Bus Duct, Feeder Circuits, Circuit Breakers, Lighting, Heating and General Loads
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Class J
Insulation Material
PolyTube
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
300 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
North American Power Fuses

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001960032
Class
J
Construction
Fiberglass
GTIN
30782001960033
Product UPC
78200196003
Weight
0.097 lb

Dimensions

Diameter
0.81 in
Length
2.25 in
