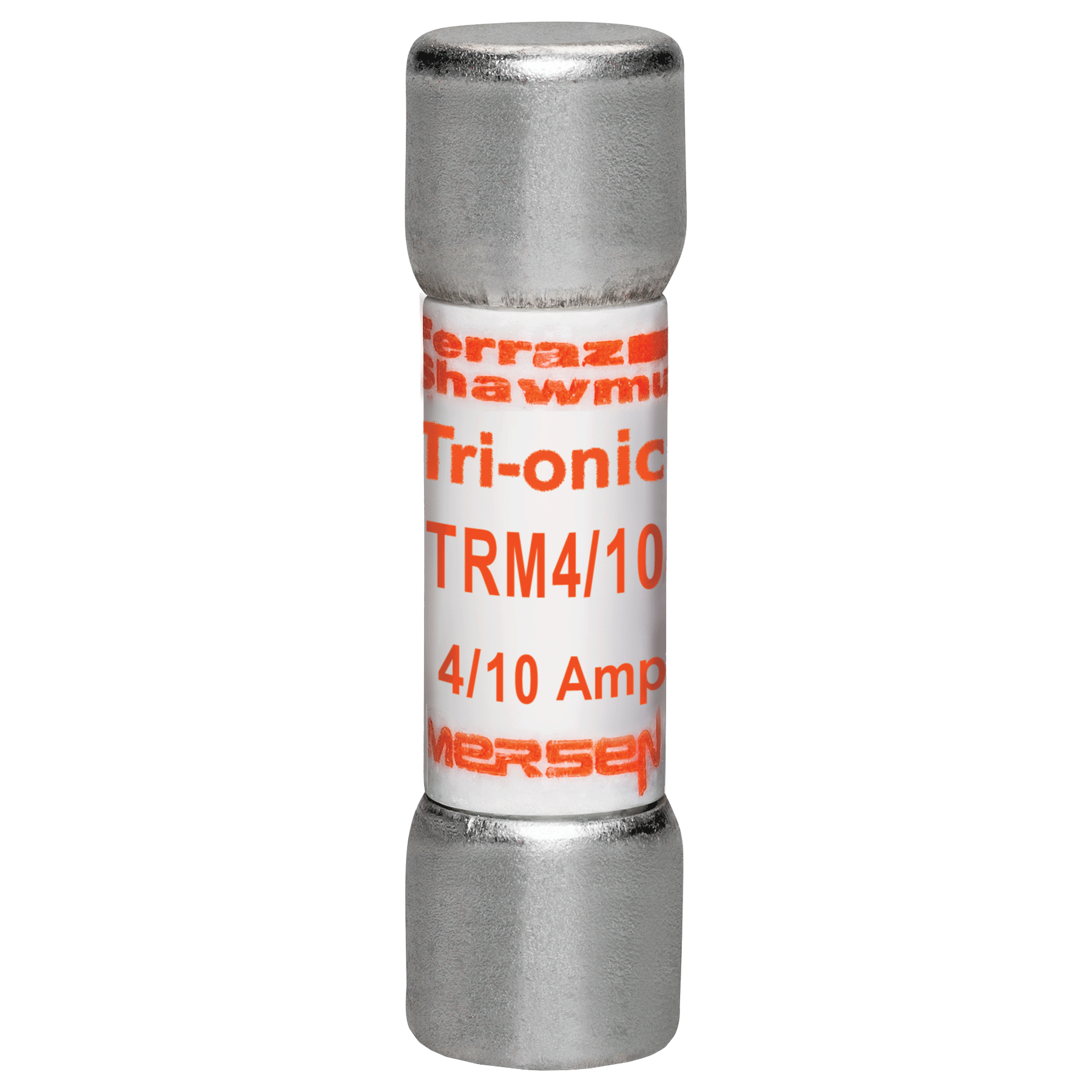

MERSEN TRM4/10 FUSE MIDGET 4/10A 250V TIME DELAY 10KA 1-1/2" X 13/32"

Manufacturer: Ferraz Shawmut Mersen | Catalog # TRM4/10 | Electrozad South Part # 72447
*Call For Price*
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
Tri-Onic® TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).

Technical Information

Amperage
0.4 A
Applications
For Small Motors, Small Transformers, Lighting Circuits, Control Circuits
Connection Type
Ferrule
Contact Material
Tin Plated Copper
Frequency
50/60 Hz
Fuse Class
Midget
Insulation Material
GMG
Interrupt Rating
10 kA
Mounting Type
Clip
Rated Voltage AC
250 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Time-Delay, Low Voltage

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Tri-Onic®

General Product Info

12-Digit UPC
782001743093
Class
M
Construction
Poly Tube
GTIN
30782001743094
Product UPC
78200174309
Weight
0.013 lb

Dimensions

Diameter
0.41 in
Length
1.5 in
