MERSEN P243E FUSEBLOCK 70A 200A RATED FOR A50P A50QS SEMICONDUCTOR FUSE | Electrozad South

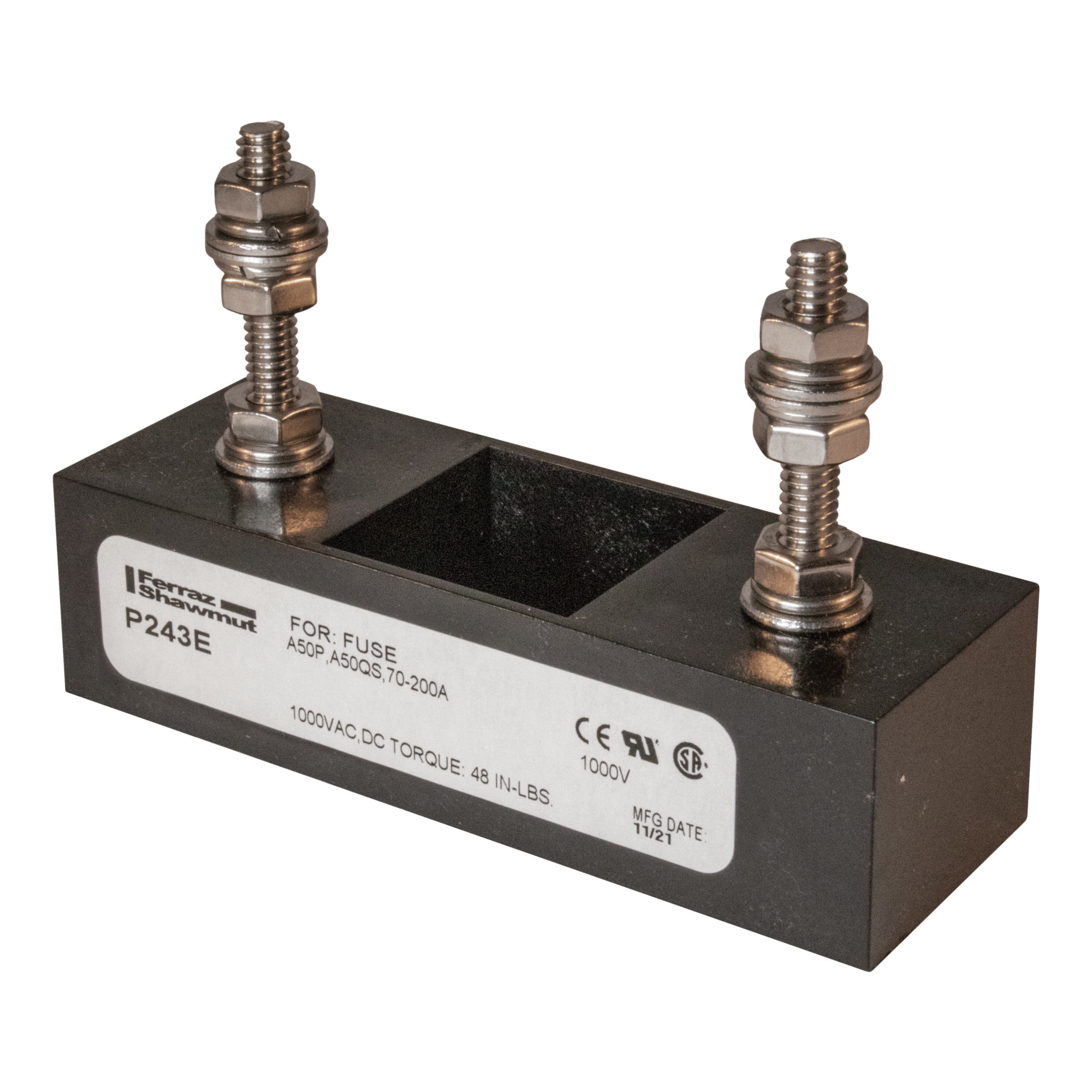

Product image for MERSEN P243E FUSEBLOCK 70A 200A RATED FOR A50P A50QS SEMICONDUCTOR FUSE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

MERSEN P243E FUSEBLOCK 70A 200A RATED FOR A50P A50QS SEMICONDUCTOR FUSE

Manufacturer: Ferraz Shawmut Mersen | Catalog # P243E | Electrozad South Part # 72551
$224.22 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen P-Block series for Form 101 fuses are glass-filled polycarbonate or laminated phenolic insulator blocks with studs to accommodate bolt-in fuses. All studs, clips and mounting hardware are tin or zinc-plated

Technical Information

Amperage
200 A
Connection Type
Stud
Frequency
50/60 Hz
Fuse Class
Semiconductor
Fuse Interrupt Rating
200 A
Fuse Type
Semiconductor
Insulation Material
Phenolic
Max Operating Temperature
80 degrees C
Mounting Type
Direct Screw Mount
Number of Poles
1
Rated Voltage AC
1000 V
Rated Voltage DC
1000 V
Short Circuit Current Rating
10000 A
Standard
CSA,E2186,UL
TC Connection
Stud
Terminal Material
Tin-Plated Copper
Terminal Type
Stud
Torque
36 lb-in
Torque Rating
36 lb-in
Type
1-Phase
Voltage
1000 V

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001973902
GTIN
00782001973902
Product UPC
78200197390
Weight
0.27 lb

Dimensions

Height
2.79 in
Length
4.4 in
Width
2.79 in

Certifications & Compliance

Country of Origin
Mexico
