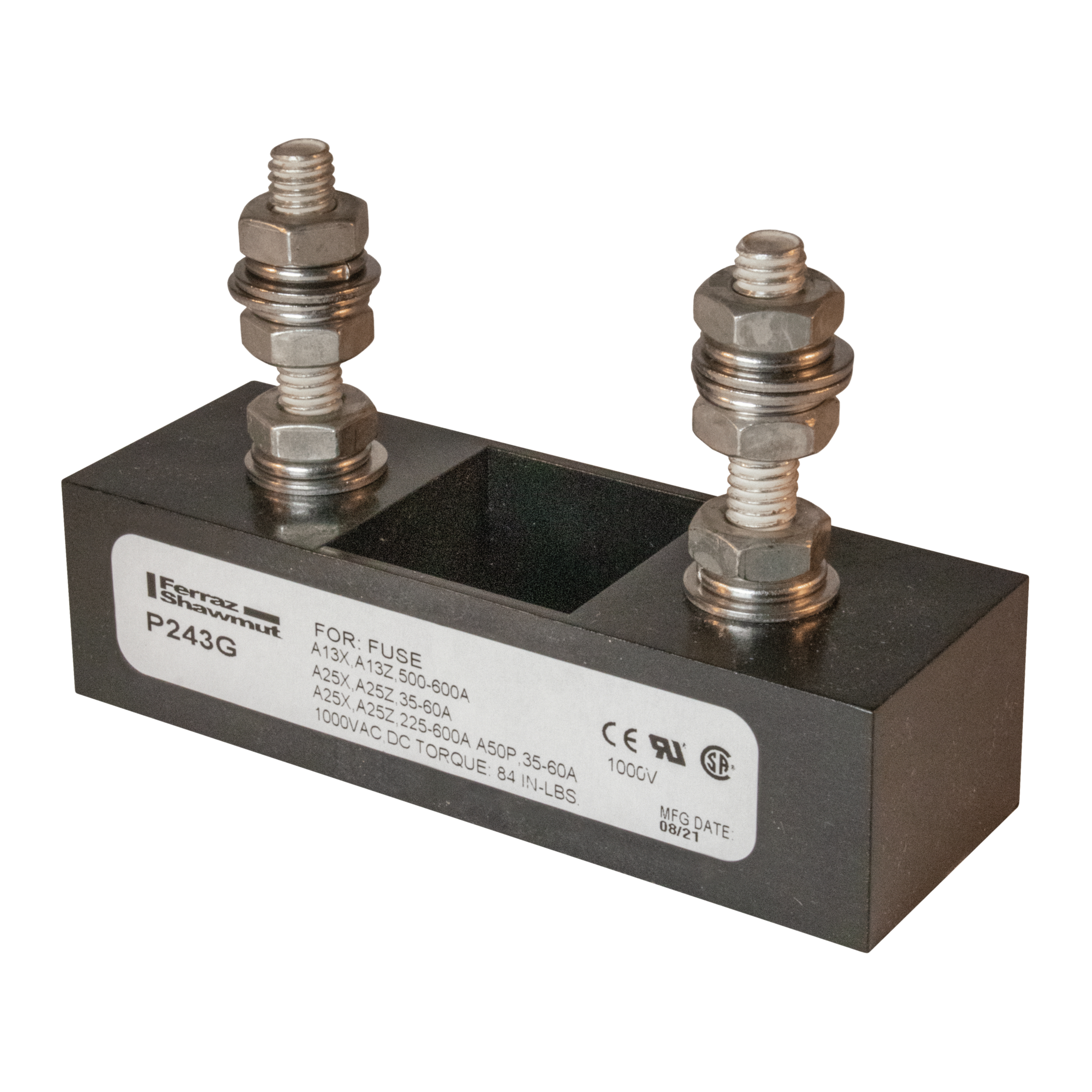

MERSEN P243G FUSEBLOCK 35A 60A RATED FOR A50P SEMICONDUCTOR FUSE

Manufacturer: Ferraz Shawmut Mersen | Catalog # P243G | Electrozad South Part # 72574
$224.22 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen P-Block series for Form 101 fuses are glass-filled polycarbonate or laminated phenolic insulator blocks with studs to accommodate bolt-in fuses. All studs, clips and mounting hardware are tin or zinc-plated

Technical Information

Amperage
600 A
Connection Type
Stud
Connector Type
Stud
Frequency
50/60 Hz
Fuse Class
Semiconductor
Fuse Interrupt Rating
600 A
Fuse Type
Semi-Conductor
Insulation Material
Phenolic
Material
Phenolic
Max Operating Temperature
80 degrees C
Mounting Type
Direct Screw Mount
Number of Poles
1
Rated Voltage AC
1000 V
Rated Voltage DC
1000 V
Short Circuit Current Rating
10000 A
TC Connection
Stud
Terminal Material
Tin-Plated Copper
Terminal Type
Stud
Torque
84 lb-in
Torque Rating
84 lb-in
Type
Laminated
Voltage
1000 V

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001974190
GTIN
00782001974190
Product UPC
78200197419
Used With
A25X, A25Z, A30QS Semiconductor Fuses
Weight
0.36 lb

Dimensions

Height
2.79 in
Length
4.4 in
Width
1-1/2 in

Certifications & Compliance

Country of Origin
Mexico
