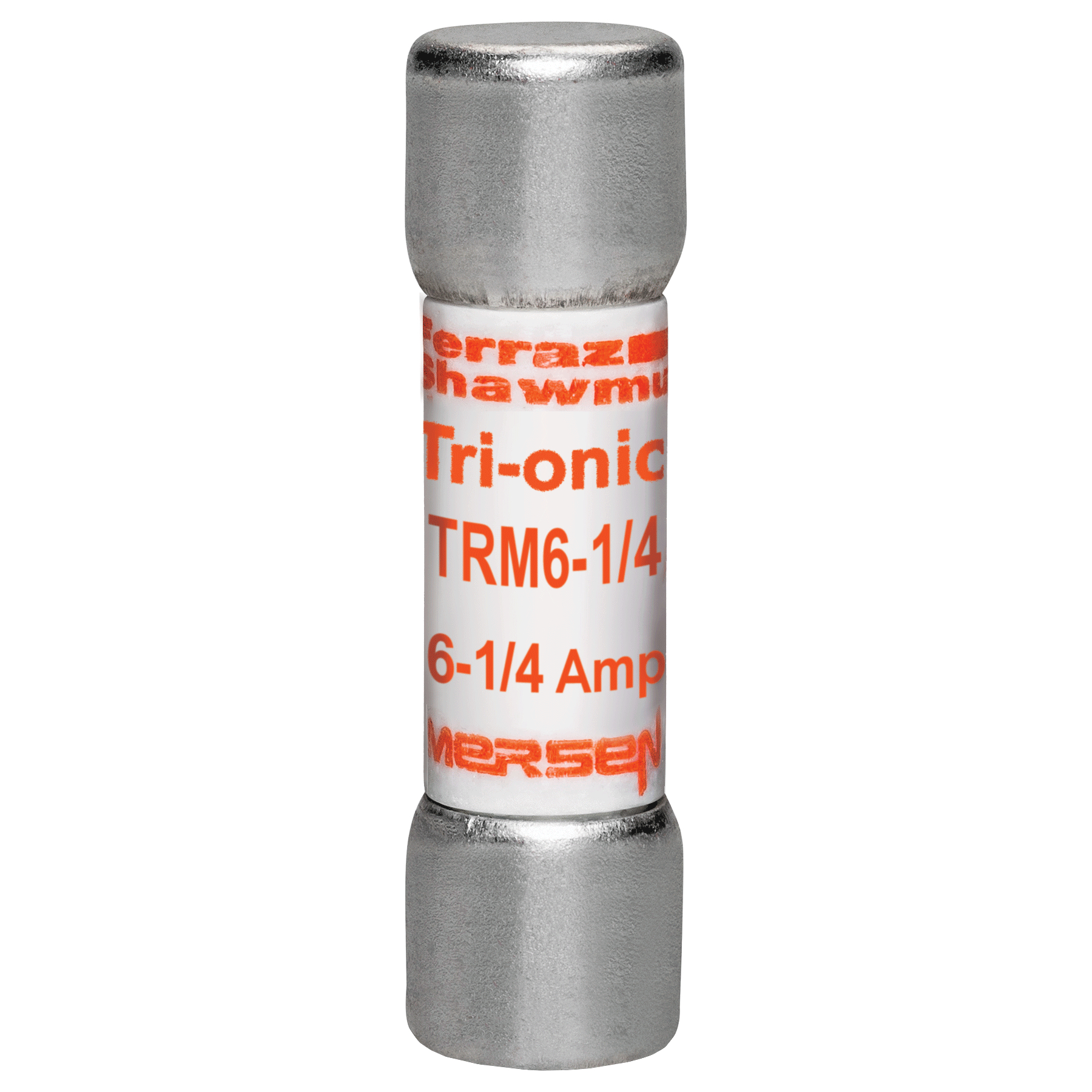

MERSEN TRM6-1/4 FUSE MIDGET 6-1/4A 250V TIME DELAY 10KA 1-1/2"X 13/32"

Manufacturer: Ferraz Shawmut Mersen | Catalog # TRM6-1/4 | Electrozad South Part # 73938
$5.32 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Tri-Onic® TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).

Technical Information

Amperage
6.25 A
Applications
For Supplemental Protection, Small Motors, Small Transformers, Lighting Circuits, Control Circuits up to 250 VAC
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Midget
Insulation Material
GMG
Interrupt Rating
10 kA
Mounting Type
Clip
Rated Voltage AC
250 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Time-Delay

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001746490
Class
M
GTIN
30782001746491
Product UPC
78200174649
Used With
UltraSafe Fuseholders
Weight
0.013 lb

Dimensions

Diameter
0.41 in
Length
1.5 in
