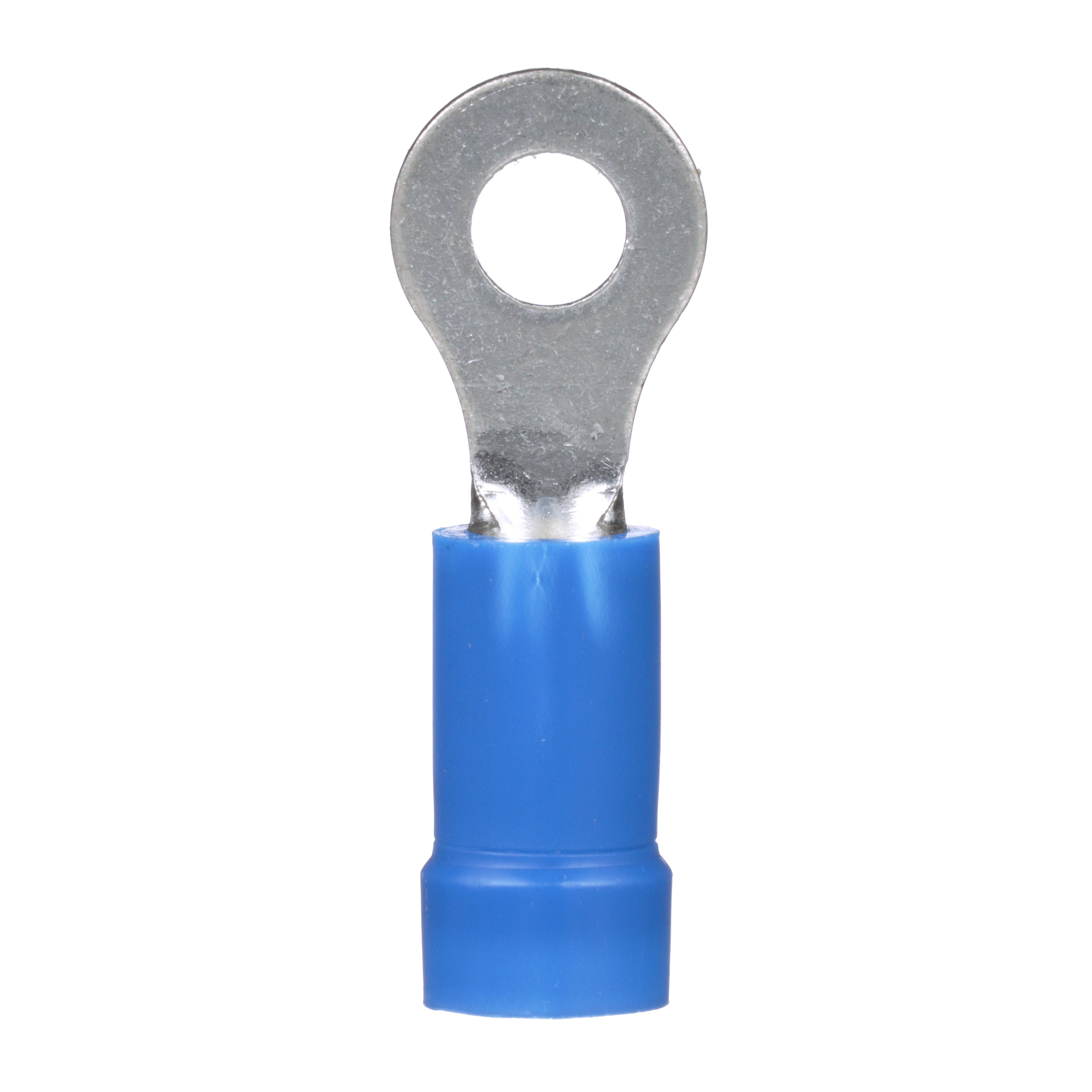

Product image for PANDUIT PV14-6R-C TERMINAL RING #6S #6STUD #16G- #14G VINYL INSULATED
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

PANDUIT PV14-6R-C TERMINAL RING #6S #6STUD #16G- #14G VINYL INSULATED

Manufacturer: Panduit | Catalog # PV14-6R-C | Electrozad South Part # 74219
$91.30 /c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
The PV14-6R-C Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Applications
For M3.5 Bolts
Barrel Length
0.46 in
Barrel Type
Funnel
Conductor Size
16-14 AWG
Enclosure
Ring shape
Insulation Material
PVC
Material
Copper
Max Operating Temperature
105 degrees C
Size
#6
Stud Size
#6
TC Connection
Funnel Entry
Temperature Rating
221 degrees F
Tongue Thickness
0.03 in
Tongue Width
0.31 in
Type
Loose-Piece
Wire Size
#14 AWG

Packaging

Package Qty
100

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983801169
Color
Blue
Finish
Tin Plated
GTIN
00074983801169
Product UPC
07498380116

Dimensions

Overall Length
0.92 in
Width
7.9 mm

Certifications & Compliance

Country of Origin
Mexico
