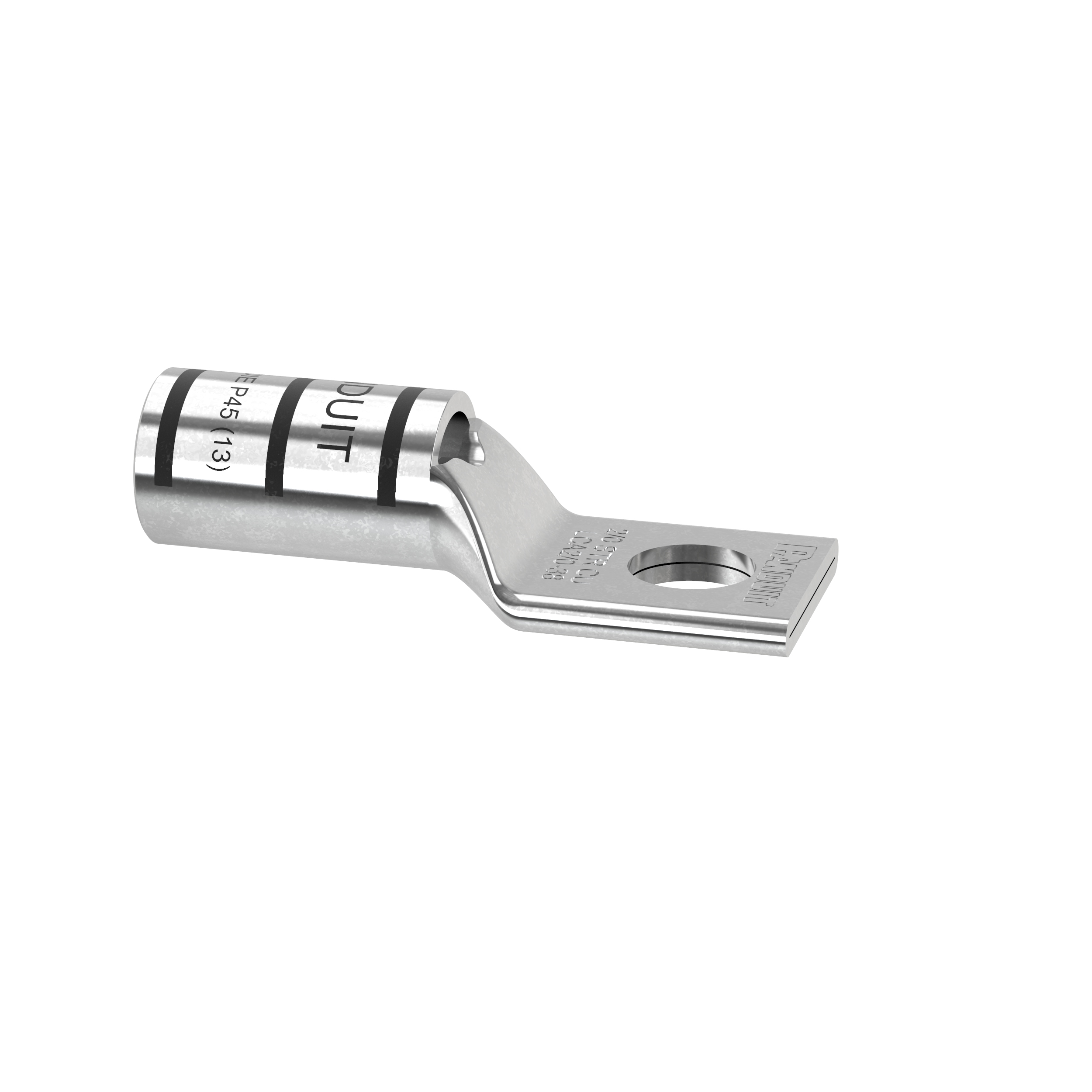

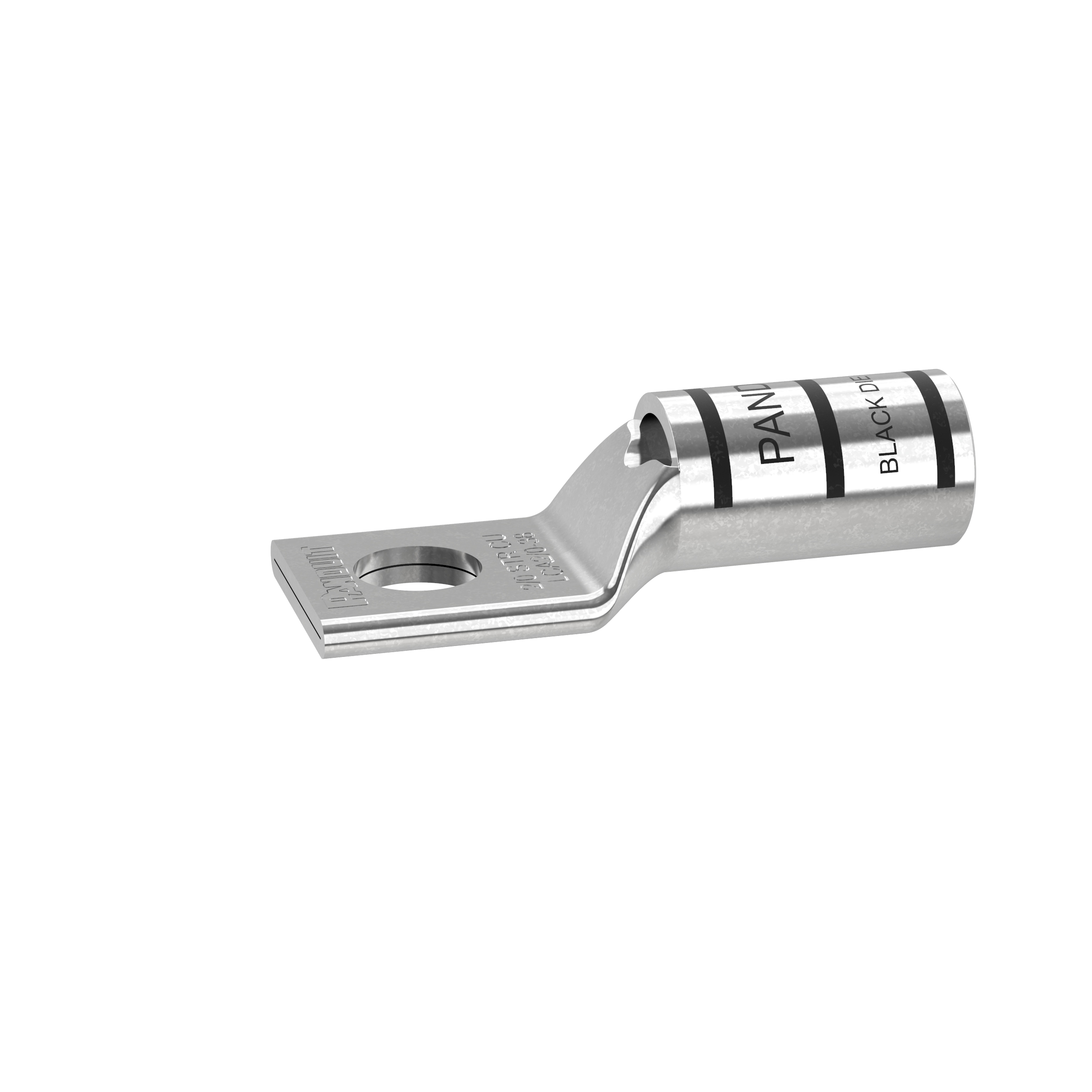

Lug standard barrel 1-hole 2/0AWG copper 3/8"

Manufacturer: Panduit | Catalog # LCA2/0-38-X | Electrozad South Part # 75054
$1,341.30 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
19 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
One-hole standard barrel with window lug. LCA type, straight tongue angle, 2/0 AWG code conductor size. 0.98 inch barrel length. Inspection window to visually assure full conductor insertion. Tin-plated to inhibit corrosion. Use up to 35 kV and 90.. temperature rate. For use with stranded copper conductors.

Technical Information

Angle
Straight
Barrel Length
0.98 in
Barrel Type
Standard with Inspection Window, Straight
Cable Size
AWG
Conductor Size
2/0 AWG
Material
Copper
Number of Holes
1
Size
2/0 AWG Code
Stud Size
3/8 in
Tongue Thickness
0.13 in
Tongue Type
Standard
Tongue Width
0.85 in
Type
Type LCA

Packaging

Package Qty
10

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983900305
Color
Black
Finish
Tin Plated
GTIN
00074983900305
Product UPC
07498390030

Dimensions

Outer Diameter
0.58 in
Overall Length
2.15 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
