PANDUIT F1.5X2WH6 WIRING DUCT NARROW SLOT F 1.5X2 6'L PVC WHITE STD. CTN. QTY 120 FT

Manufacturer: Panduit | Catalog # F1.5X2WH6 | Electrozad South Part # 7523
$8.38 /ft
ft
Order in multiples of 6 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure

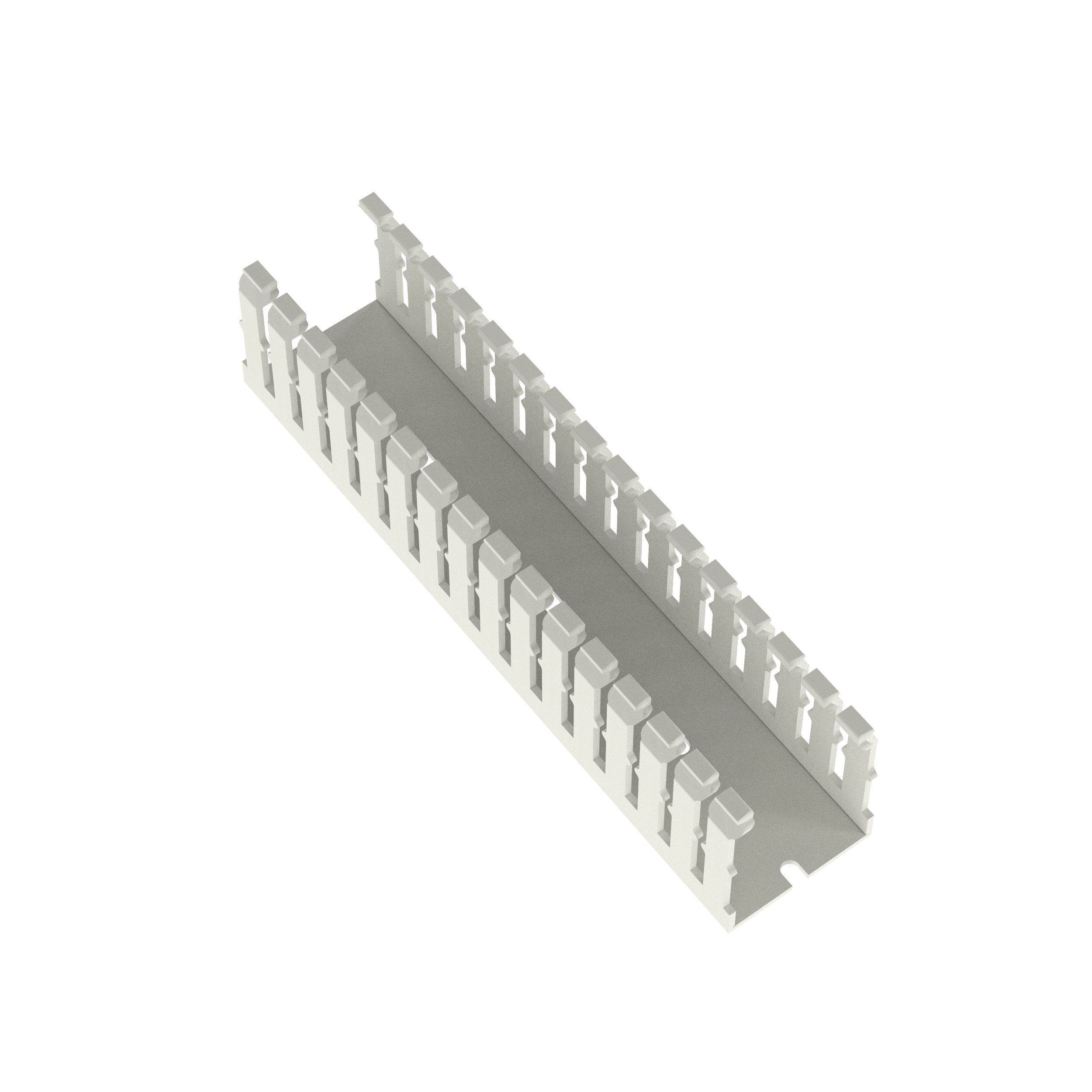

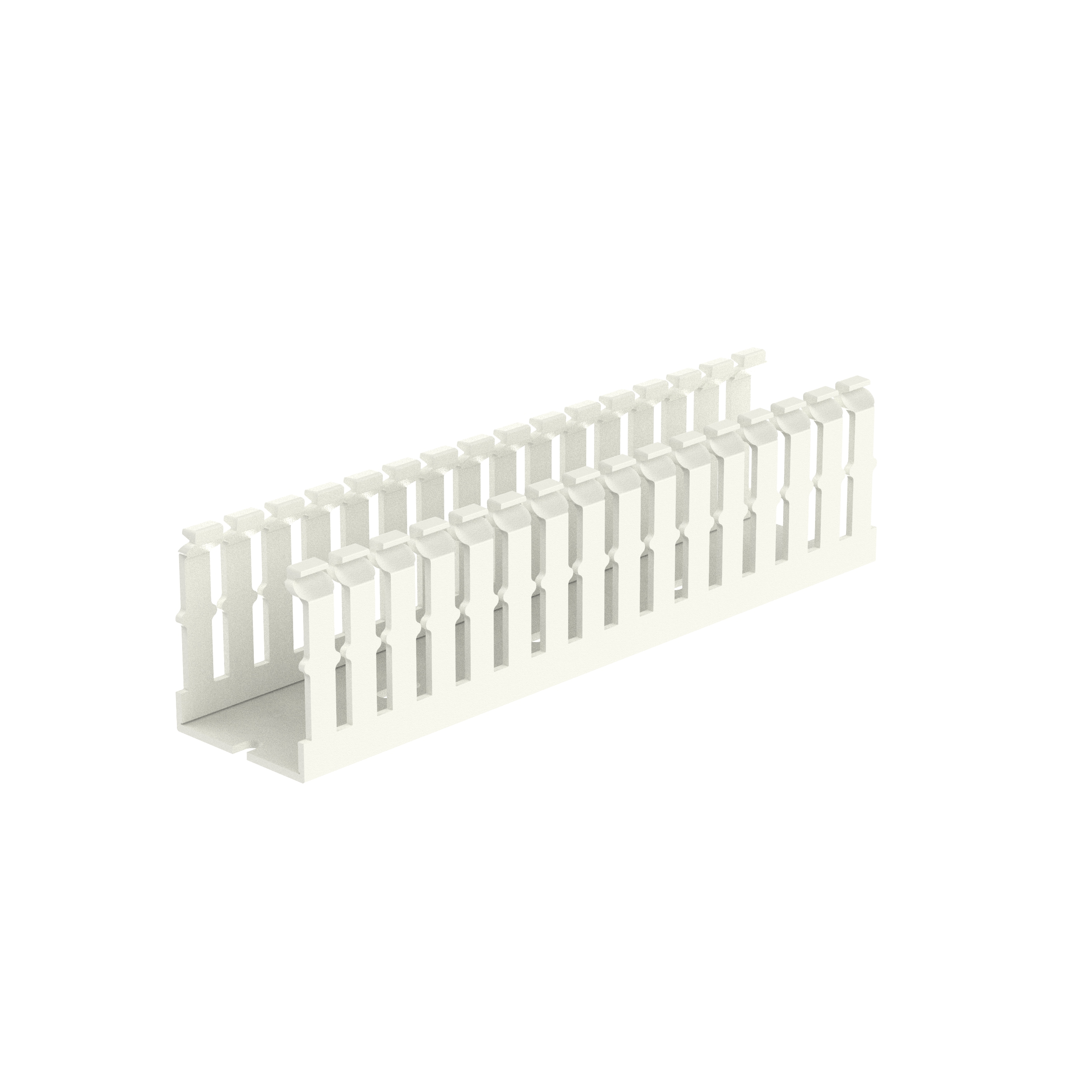

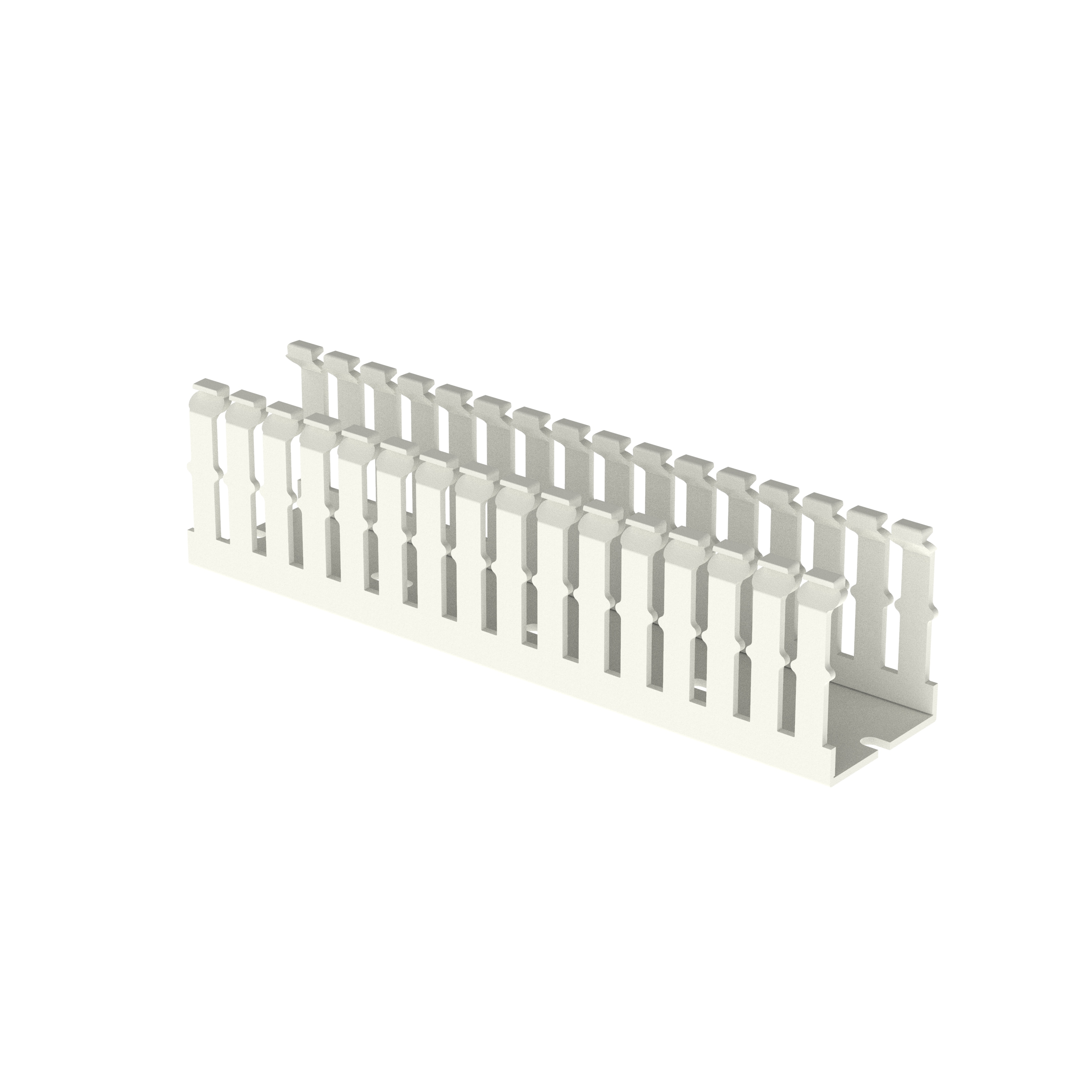

The F1.5X2WH6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122..F (50..C). Mounting holes provided. Lead-free PVC. 1.5" x 2" (38.1 mm x 50.8 mm) and 6' (1.83 m) long. Cover sold separately. Color White.

Technical Information

Material
PVC
Mounting Type
Mounting Holes
Size
44.5 x 53.8 mm
TC Connection
Standard Mounting Holes
Type
Type F

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Panduct

General Product Info

12-Digit UPC
074983375325
Color
White
GTIN
00074983375325
Product UPC
07498337532

Dimensions

Height
2.12 in
Length
1.8 m
Overall Length
6 ft
Thickness
0.08 IN
Width
44.5 mm

Certifications & Compliance

Country of Origin
USA
