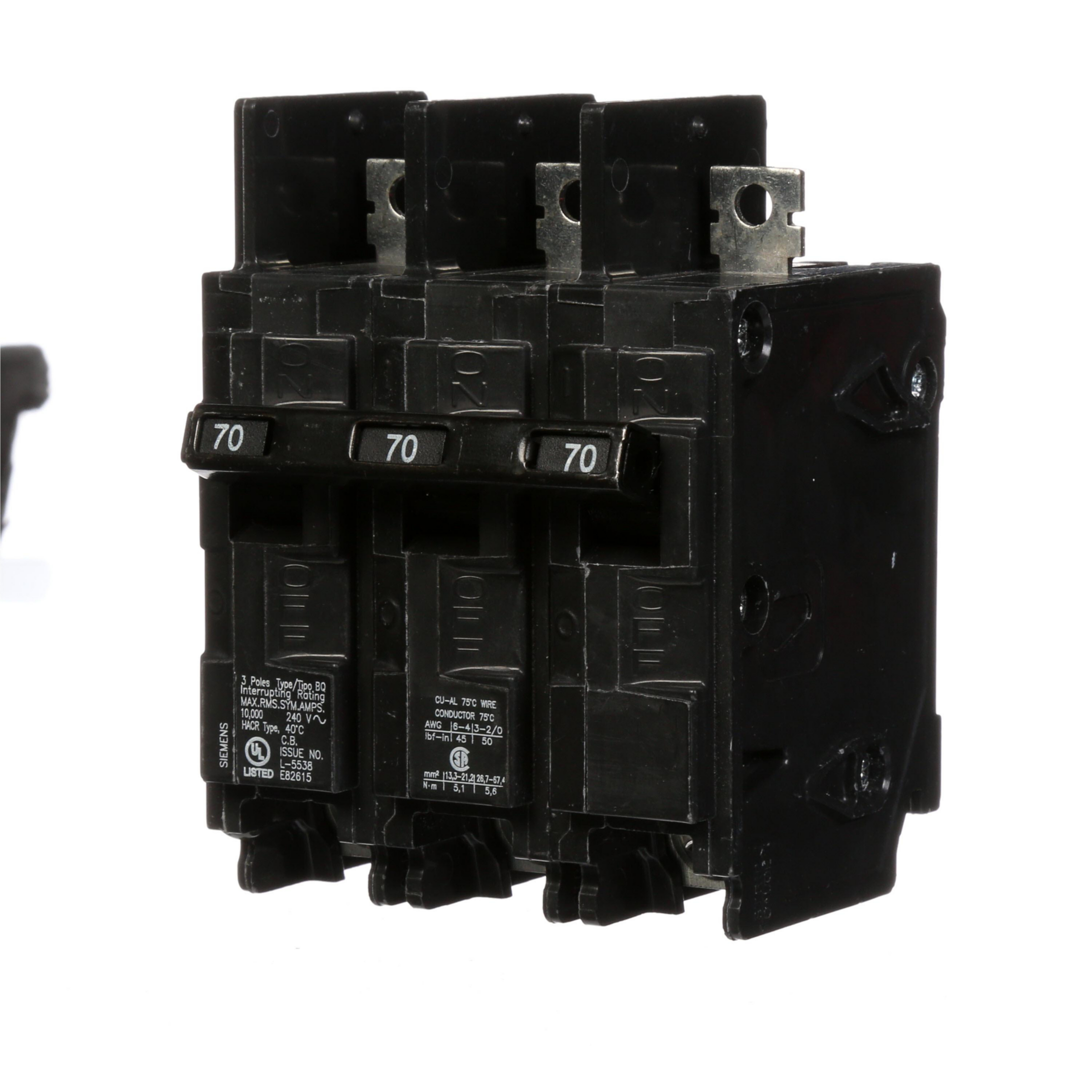

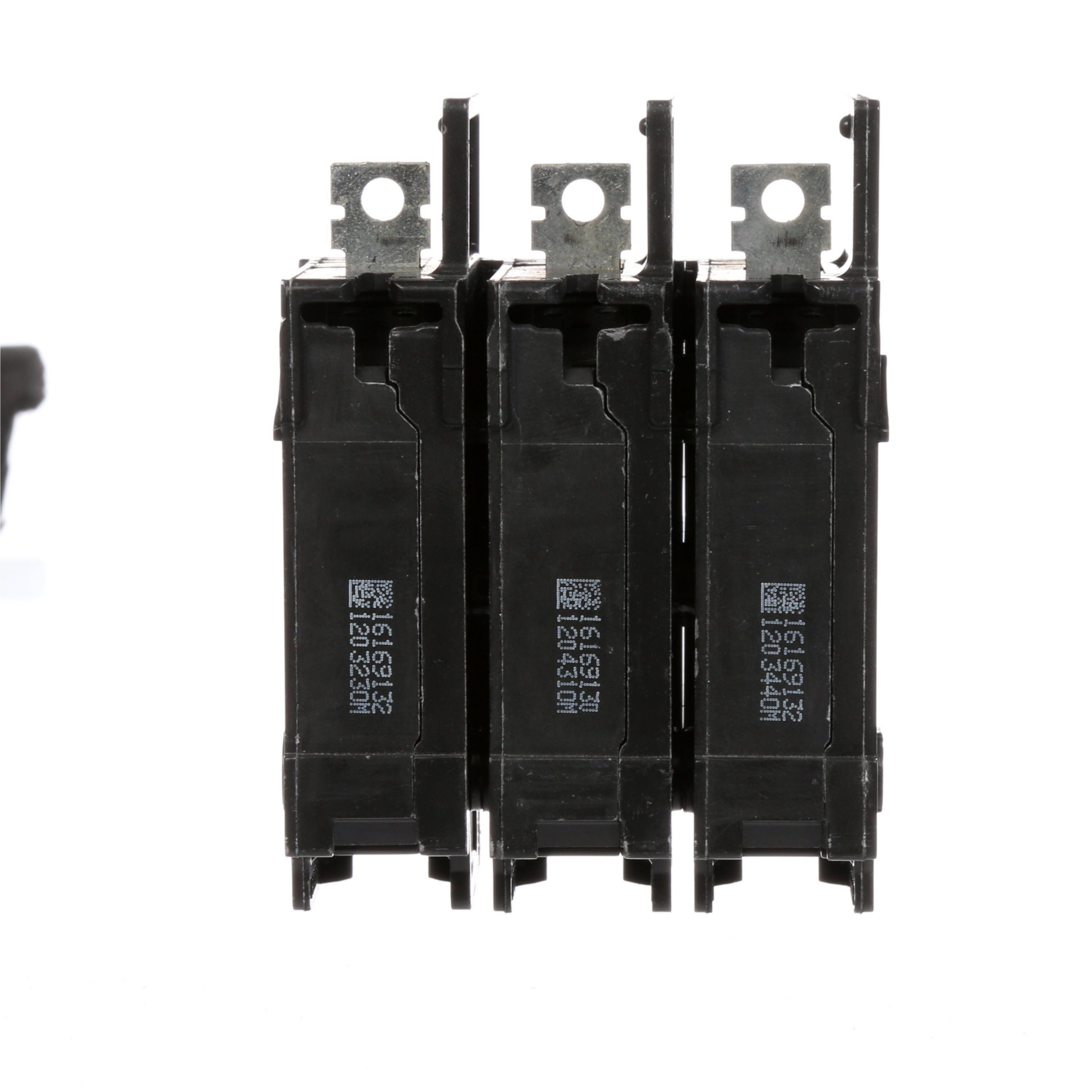

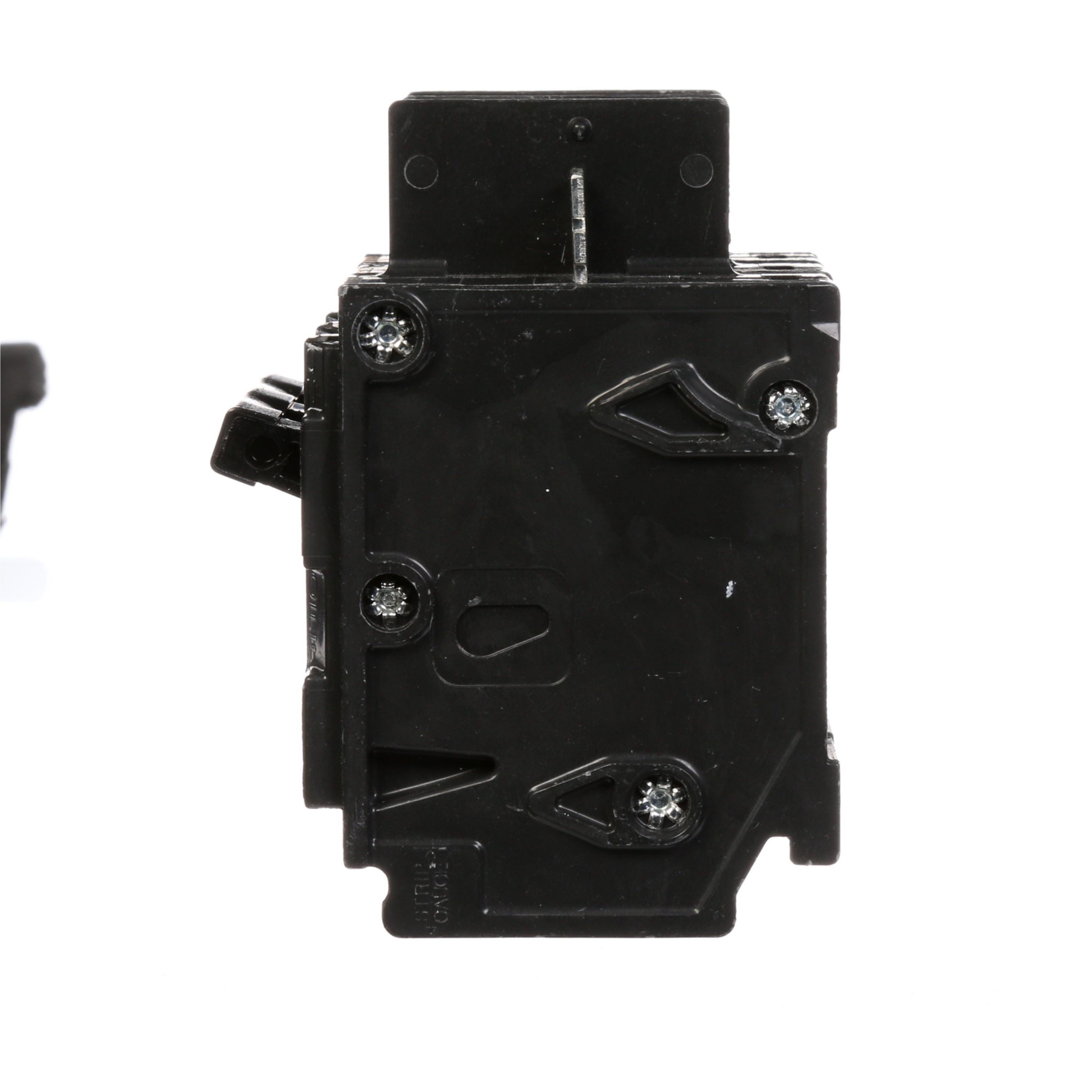

SIED BQ3B070 BREAKER 70A 3P BOLTON C/W 1 SCREW PER POLE

Manufacturer: Siemens Distribution | Catalog # BQ3B070 | Electrozad South Part # 7634
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page
Molded case circuit bolt-on breakers for loadcenter mounting with insta-wire in 2 types of tripping speed BQ=10KA, BQH=22KA. Available in versions 1 pole 120vac, 2 poles common trip 240vac and 3 poles common trip 240vac.

Technical Information

Actuator
Switch Position Knob
Applications
Electrical Distribution
Enclosure
N/A
Frame
N/A
Interrupt Rating
10 kA
Load Rating
N/A
Number of Phases
-99999
Number of Poles
3
Operating Temperature
N/A
Standard
CSA,E2186,UL
TC Connection
BOLT-ON
Trip Range
Thermal Magnetic
Trip Type
Thermal Magnetic
Type
BQ

Manufacturer Information

Brand
Siemens
Sub Brand
Panelboards

General Product Info

12-Digit UPC
783643102644
GTIN
00783643102644
Product UPC
78364323730
Weight
1.010 lb

Dimensions

Height
3 in
Length
4.000 in
Width
4.000 in

Certifications & Compliance

Country of Origin
Mexico
