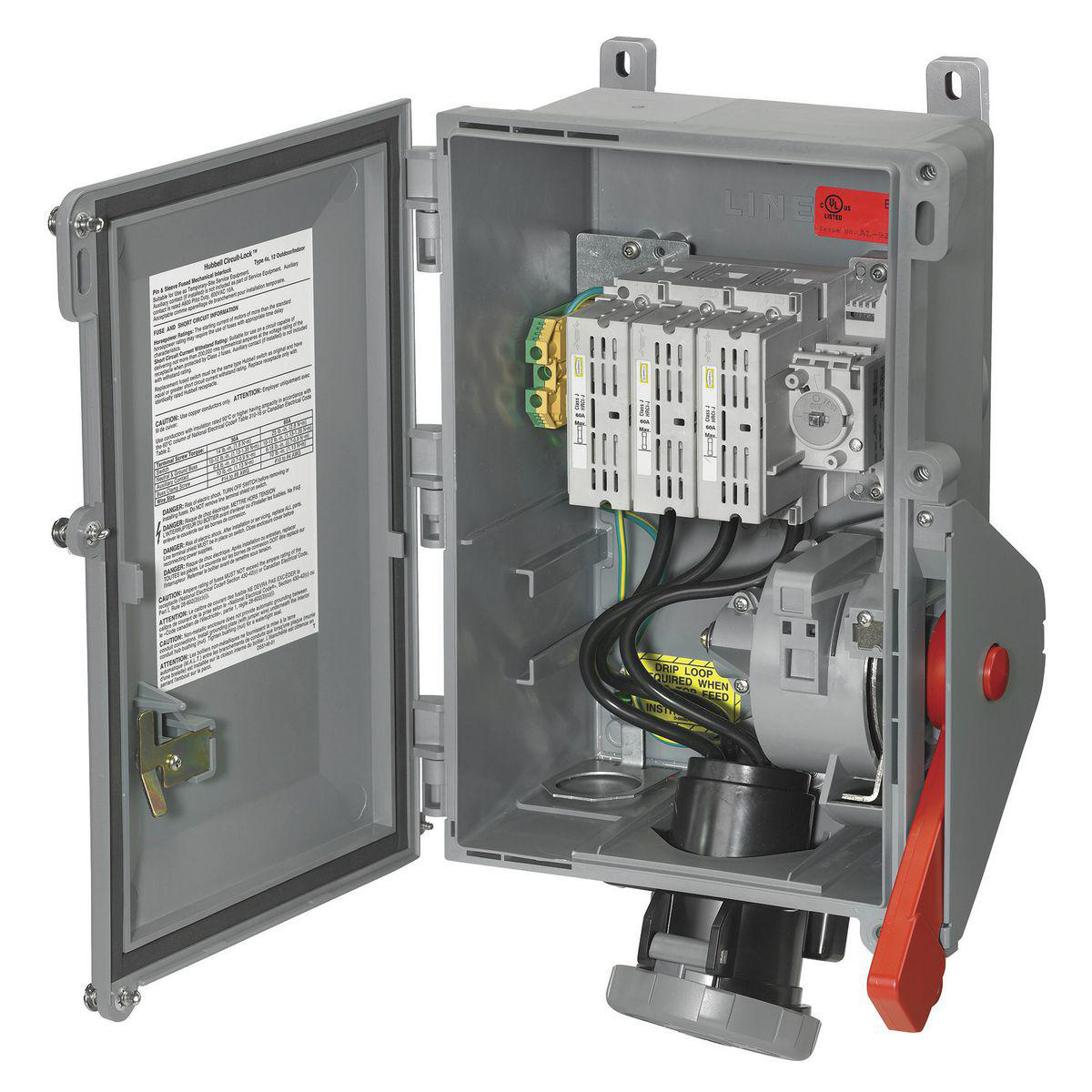

Switch box+outlet pin&sleeve 3ph4W 60A 600Vfuse

Manufacturer: Hubbell Wiring Devices | Catalog # HBL460MIF5W | Electrozad South Part # 76637
$3,760.08 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Hubbell CIRCUIT-LOCK motor disconnect withstand 10 000 amp fault short circuit up to 2200 volts. Available in toggle switch unit version 2-3 poles, 30-40-50-60-85 amp, 120-240-480-600 volts alone or enclosures built-in NEMA 1 (aluminium or plastic) toggle control, NEMA 3/3R (aluminium or thermoplastic rain tight) slider control, NEMA 4X ( stainless steel or thermoplastic) rotary control. Auxiliary contacts NO/NC for PLC, class J fuses protection and pin and sleeve receptacle (optional).

Technical Information

Amperage
60 A
Applications
For High Ampacity Watertight Connections
Connection Type
Pressure Screw
Current
60 A
Material
Thermoplastic
Number of Phases
3
Number of Poles
3
Number of Wires
4
Operating Temperature
-40 degrees C
Size
Standard Sized Product
Standard
CSA,Canada,For US,UL
Style
Standard Service
TC Connection
Pressure Plate
Terminal Type
Screw
Type
Single, Fused, IEC 309 Pin and Sleeve Device, Standard, 3-Pole, 4-Wire
Voltage
600 V
Wattage
36 kW
Wire Count
4
Wire Size
8-2 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585406015
Color
Black
Environmental Conditions
Watertight
GTIN
00783585406015
Product UPC
78358540601
Weight
18.5 lb

Dimensions

Height
9.200 in
Length
19.400 in
Width
12.4 in

Certifications & Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
Puerto Rico
Overview
  • Plug-Check™ mechanism to detect the presence of plug
  • Replaceable spring-loaded receptacle liftcover with gasket
  • Removable door for ease of wiring and installation
