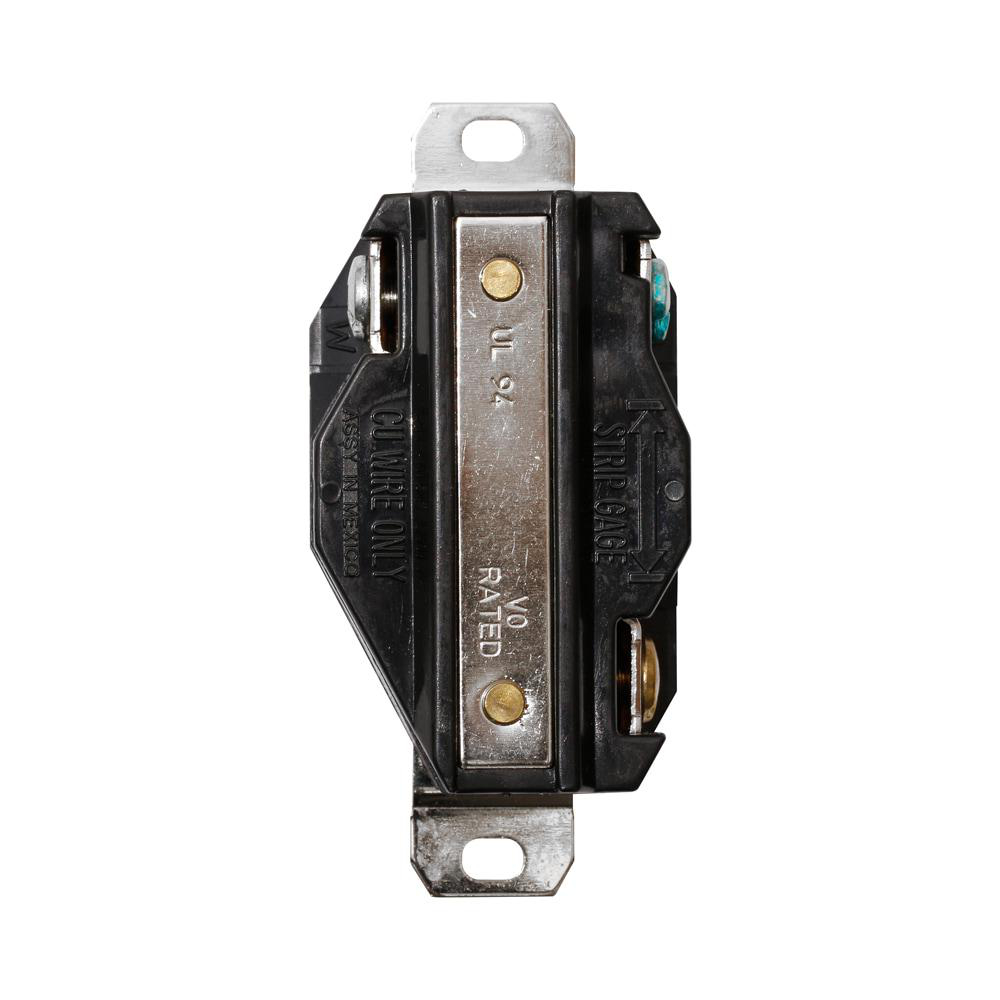

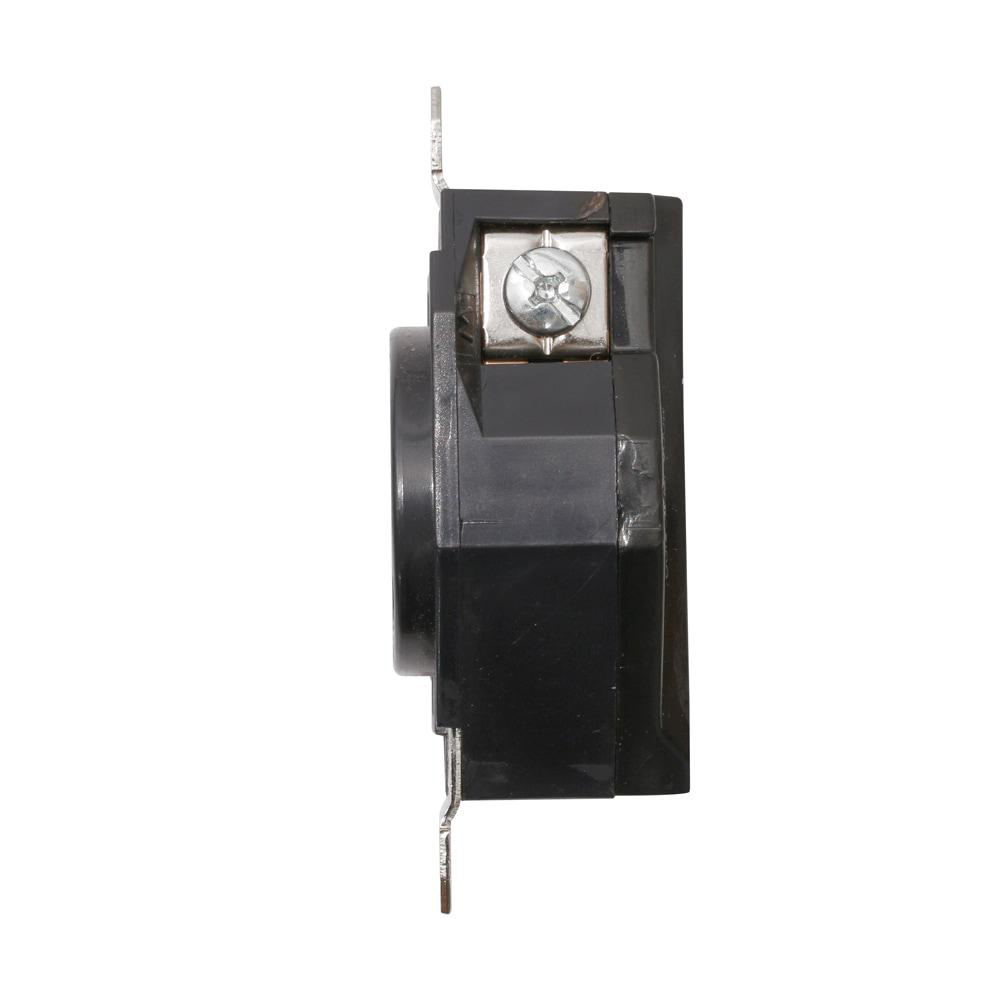

Product image for LEVITON 3720 RECEPTACLE 20A 2P3W 347V 1R SINGLE TWISTLOCK BACK SIDE WIRED
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

LEVITON 3720 RECEPTACLE 20A 2P3W 347V 1R SINGLE TWISTLOCK BACK SIDE WIRED

Manufacturer: Leviton Manufacturing | Catalog # 3720 | Electrozad South Part # 76922
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Installation / Instruction Manual MSDS | SDS Safety Sheet
Industrial grade single locking receptacle.

Technical Information

Applications
Industrial
Conductor Size
14-8 AWG
Connection Type
Screw
Contact Material
Brass
Dielectric Strength
2000 V
Grade
Industrial
Material
Nylon, Ultramid Face
Mounting Type
Inner Lying
NEMA
L24-20R
Number of Poles
2
Number of Wires
3
Size
4.6"
Standard
ANSI C-73
TC Connection
Back Wired;Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Type
Covers
Wire Size
14 - 8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
V-0-Max™

General Product Info

12-Digit UPC
785007765281
Color
Black
Finish
Clear
GTIN
60078477880427
Product UPC
07847788042
UNSPSC
39121305

Dimensions

Height
4.938 in
Width
3 in

Certifications & Compliance

Certifications
CSA,UL
Country of Origin
Mexico
