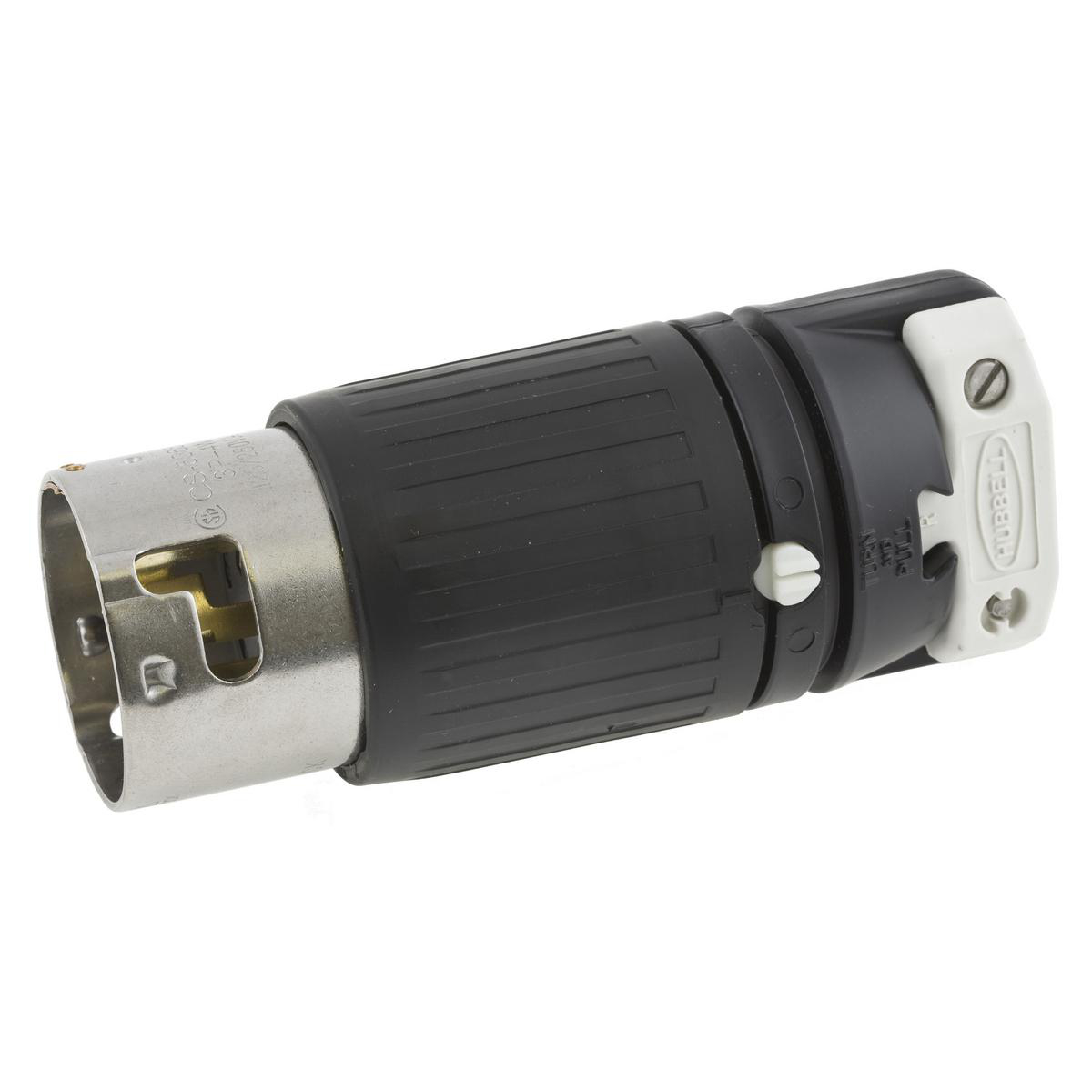

Plug HBL lock cable 2P 3W 50A 600V black

Manufacturer: Hubbell Wiring Devices | Catalog # HBL3763C | Electrozad South Part # 76933
$230.14 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Hubbell TWIST-LOCK cable plugs and connectors are made of white nylon locking blade insert, black housing and 2 pieces screw cable clamp. Flanged inlet and outlet are made of white one-piece nylon. Box single/duplex receptacle are made of black or orange (isolated) thermoplastic. Full line of accessories like stainless steel and weatherproof cover plate. They follow NEMA and NON-NEMA lock coding version 1-2-3-4 pole, 20-30-50 amp, 125-250-277-347-480-600 volts.

Technical Information

Amperage
50 A
Applications
Extra Heavy Duty Industrial Application
Conductor Size
6 AWG
Cord Type
Portable
Current
50 A
Grounding
Yes
Material
Plastic
Mounting Type
Cord
Number of Phases
1
Number of Poles
2
Number of Wires
4
Operating Temperature
-40 degrees C
Size
2.56 in x 2.56 in x 6.37 in
Standard
CSA C22.2 No.42,UL 498
TC Connection
Pressure Screw Terminal
Type
Insulgrip, Standard Sized, Straight Angled
Voltage
250 V
Wattage
30000 W
Wire Count
3
Wire Size
8-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585235615
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585235615
Product UPC
78358523561
Weight
1.20 lb

Dimensions

Height
6.37 in
Length
2.56 in
Width
2.56 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Thermoplastic polyester interior provides heat resistance and impact strength
  • Heavy duty two-piece external cord clamp provides maximum strain relief
  • Super tough nylon housing offers better impact qualities
  • Stainless steel shroud protects contacts and prevents mismating
  • Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
