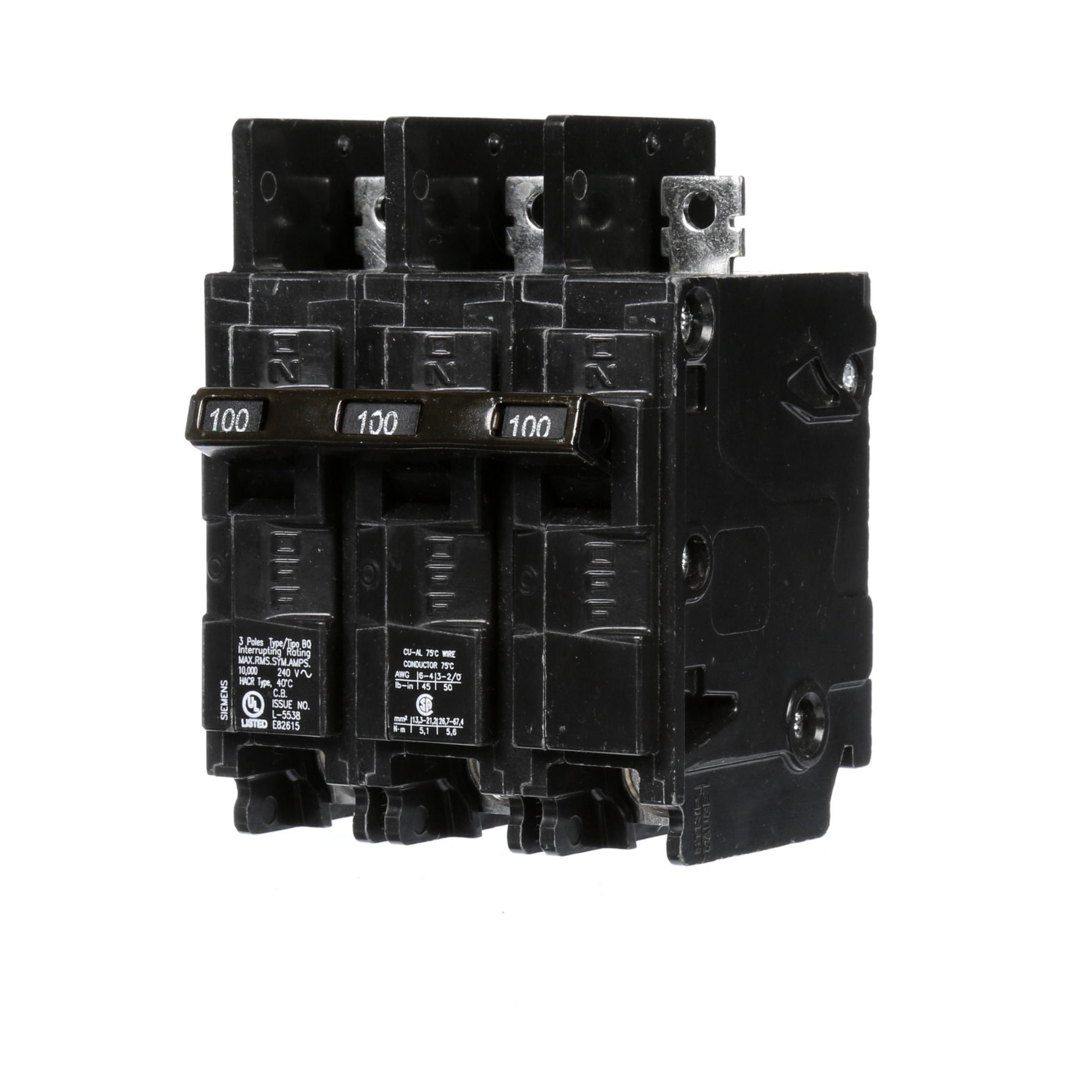

Image thumbnail 1

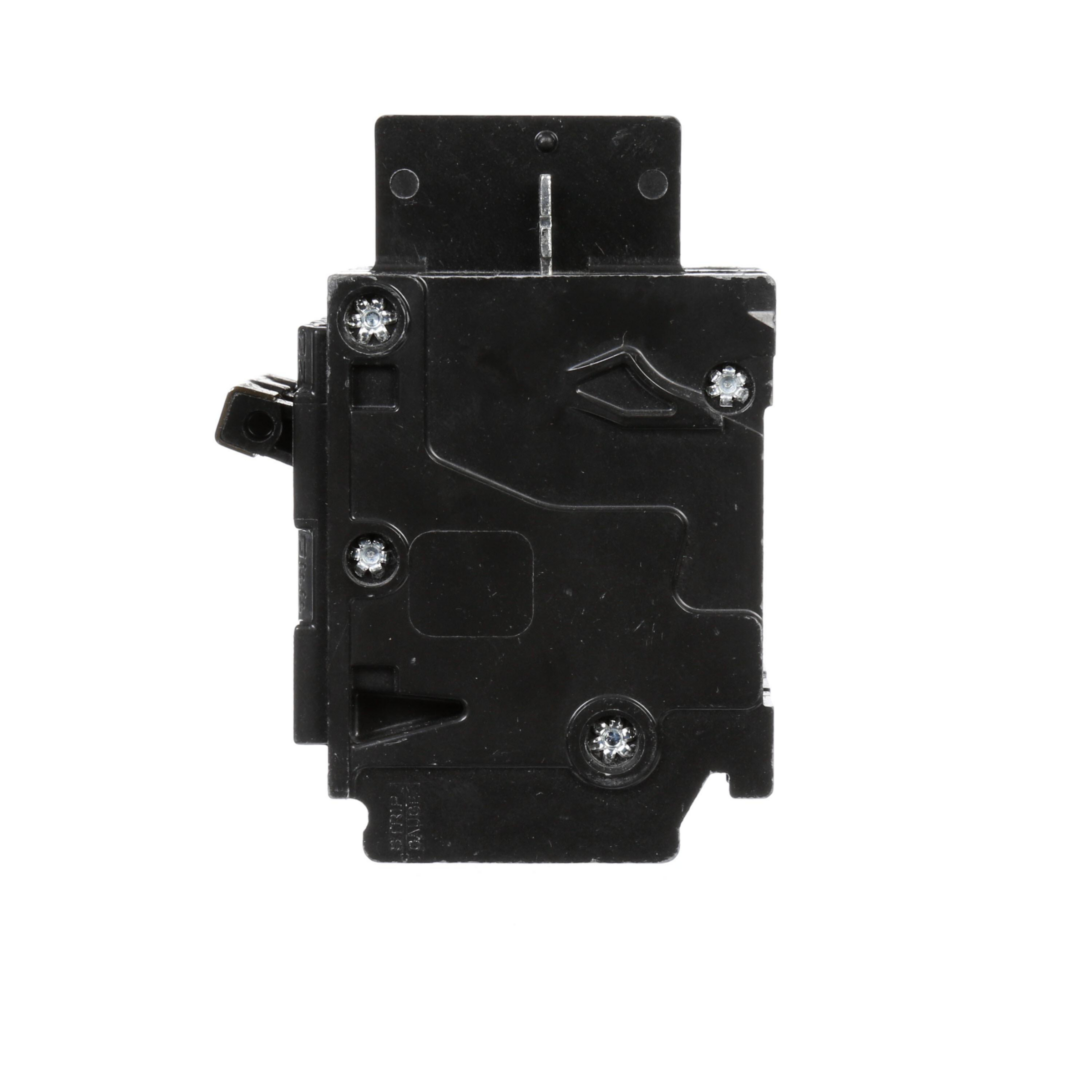

Image thumbnail 2

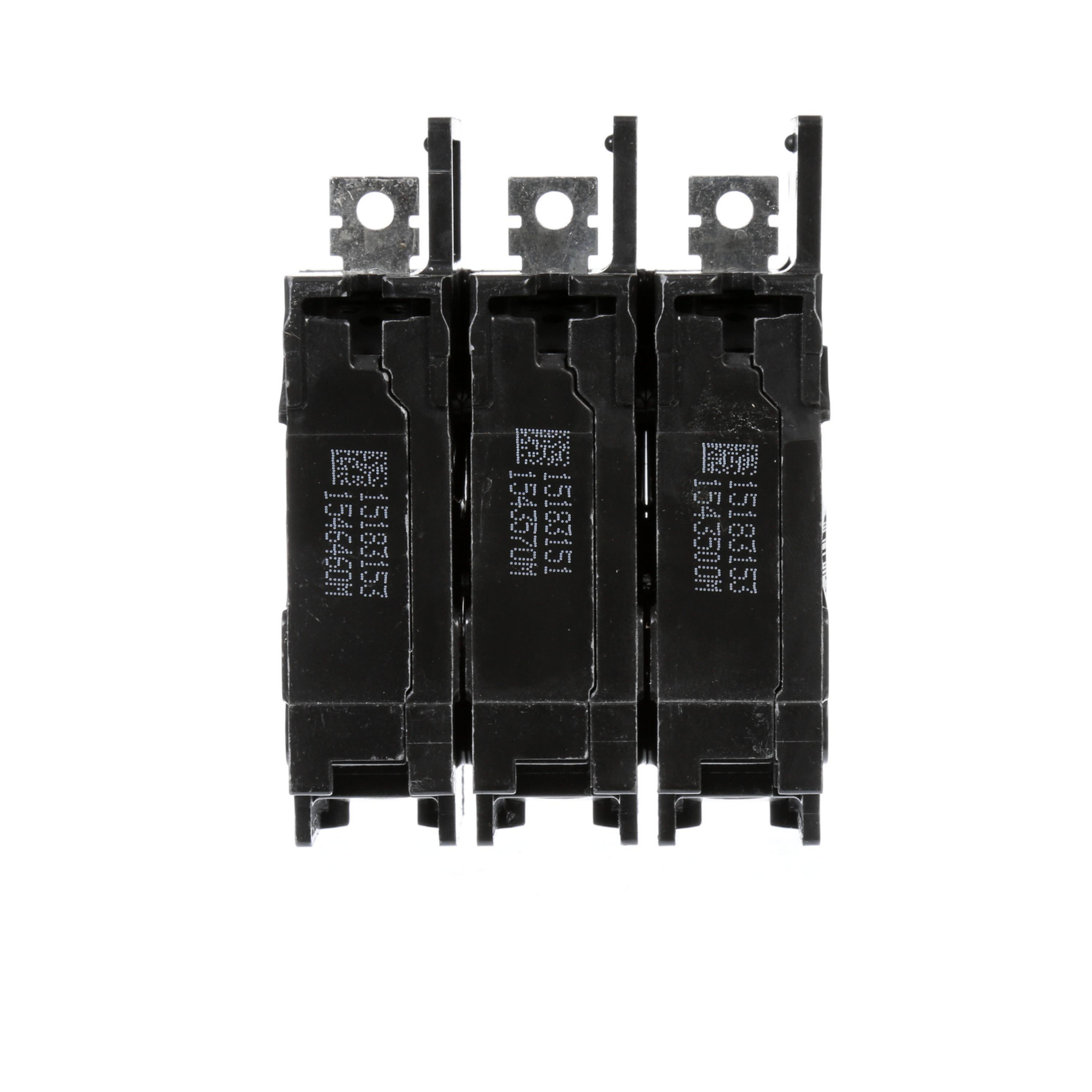

Image thumbnail 3
Email

SIED BQ3B100 BREAKER 100A 3P BOLTON C/W 1SCREW PER POLE 10KA

Manufacturer: Siemens Distribution | Catalog # BQ3B100 | Electrozad South Part # 7717
$363.02 /ea
pc
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page
Molded case circuit bolt-on breakers for loadcenter mounting with insta-wire in 2 types of tripping speed BQ=10KA, BQH=22KA. Available in versions 1 pole 120vac, 2 poles common trip 240vac and 3 poles common trip 240vac.

Technical Information

Actuator
Switch Position Knob
Applications
Electrical Distribution
Enclosure
N/A
Frame
N/A
Interrupt Rating
10 kA
Load Rating
N/A
Number of Phases
-99999
Number of Poles
3
Operating Temperature
N/A
Standard
CSA,E2186,UL
TC Connection
BOLT-ON
Trip Range
Thermal Magnetic
Trip Type
Thermal Magnetic
Type
BQ

Manufacturer Information

Brand
Siemens
Sub Brand
Panelboards

General Product Info

12-Digit UPC
783643102668
GTIN
00783643102668
Product UPC
78364310266
Weight
1.010 lb

Dimensions

Height
3.7 in
Length
12.9 in
Width
4.500 in

Certifications & Compliance

Country of Origin
Mexico
