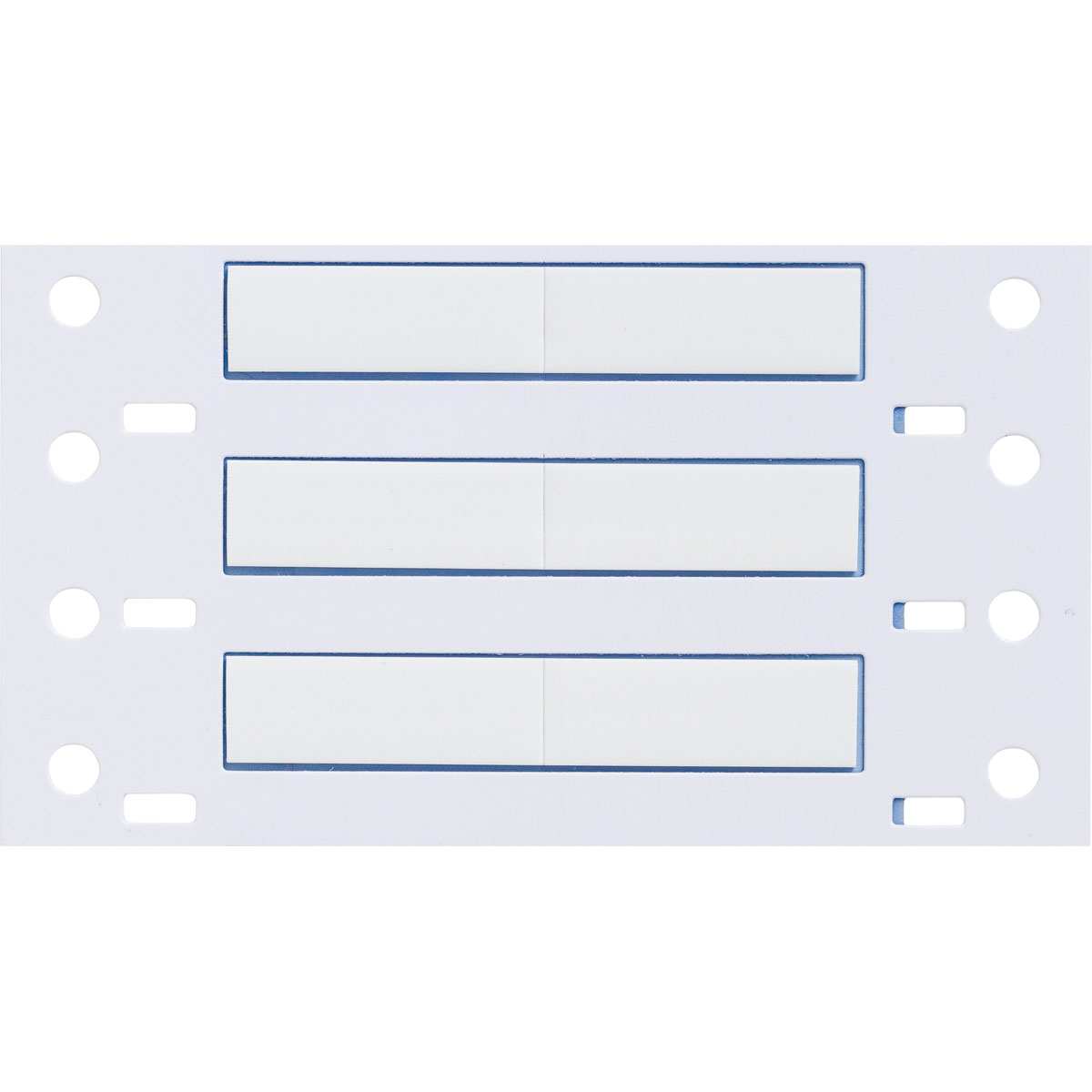

Product image for Sleeve wire marker 1x0.335" 5000pk
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Sleeve wire marker 1x0.335" 5000pk

Manufacturer: Brady | Catalog # PS-187-2-WT-2 | Electrozad South Part # 77173
$2,842.16 /ea
rl
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
Brady's PermaSleeve® heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification. The full-circle insulating sleeves meet the rigid insulating material requirements and physical properties of MIL-DTL-23053/5 Class 1, MIL-M-81531, MIL-STD-202F, METHOD 215, and UL224 when printed with R5000 dot matrix and R4300 and R4502S (for black sleeves only) thermal transfer ribbons. These fade resistant, smudge-proof sleeves can be used on with Brady's Sleeve & Datab™ Printers, as well as Thermal Transfer printers.

Technical Information

Applications
For Cable and Wire Marking
Cable Size
20-10 AWG
Material
B-342 Heat Shrink Polyolefin
Max Temperature
135 degrees C
Min Temperature
-55 degrees C
Shrink Ratio
3:1
Temperature Rating
-94 to 267 degrees F
Type
Heat Shrink Tubing
Wire Size
0.062-0.15 in

Manufacturer Information

Brand
Brady
Sub Brand
PermaSleeve®

General Product Info

12-Digit UPC
662820112167
Color
White
Finish
Matte
GTIN
00662820112167
Product UPC
66282011216
Used With
Brady IP Series and Bradyprinter PR Plus Series Thermal Transfer Label Printer

Dimensions

Diameter
0.187 in
Height
0.335 in
Length
0.335 in
Roll Width
2 in
Width
1 in
Overview
  • Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
  • 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
  • Fade-resistant and smudge-proof for superior aesthetic appearance
  • A ribbon is required to print this material. Use Part Number IP-R6600 for the BradyPrinter i5100 or BRADY IP® Series Label Printer; use R6600 for a different printer
  • Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
