PANDUIT LCA6-56-L LUG #6G WIRE 5/16"H 1HOLE COPPER COMPRESSION 5/16"STUD

Manufacturer: Panduit | Catalog # LCA6-56-L | Electrozad South Part # 77611
$335.62 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
56 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure Installation / Instruction Manual

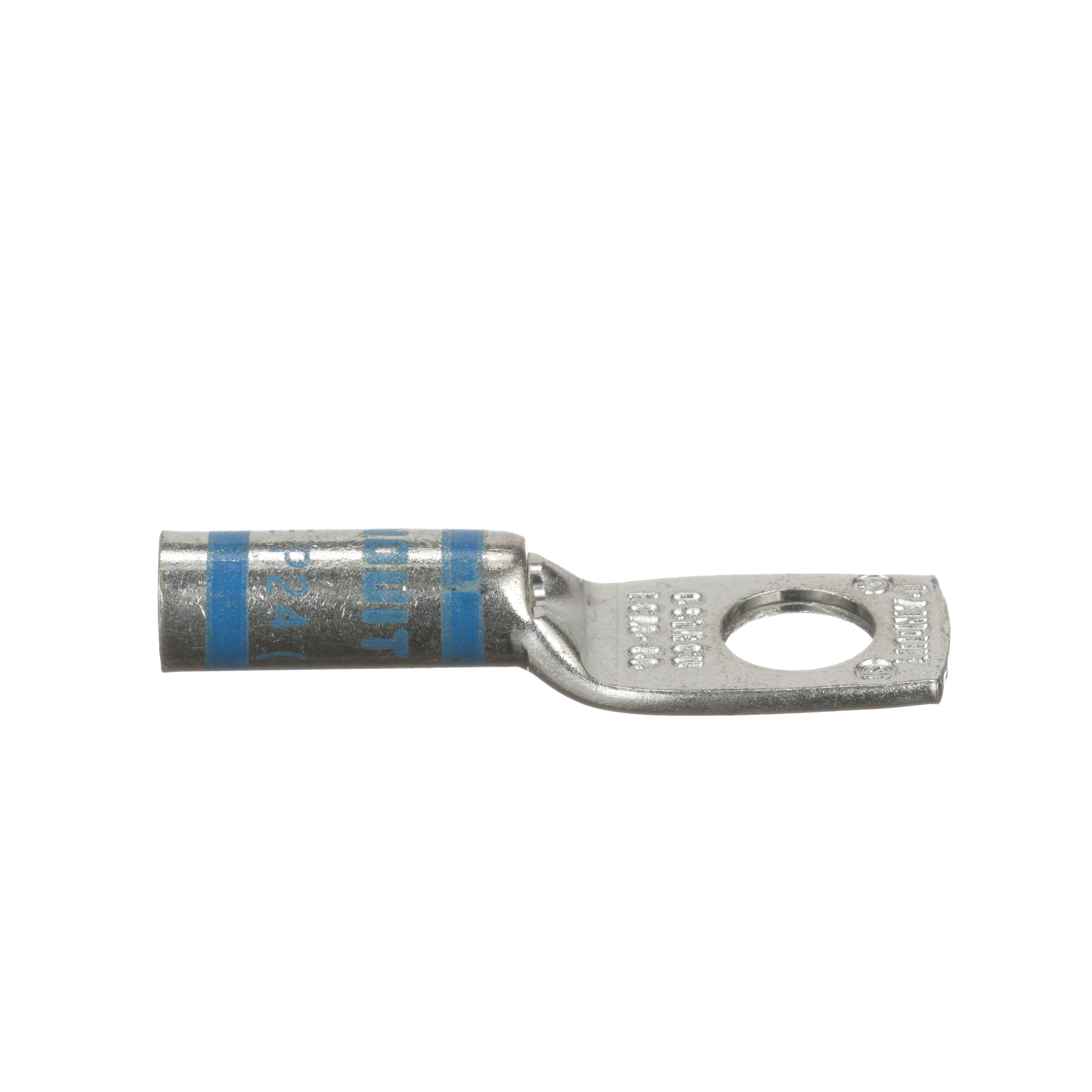

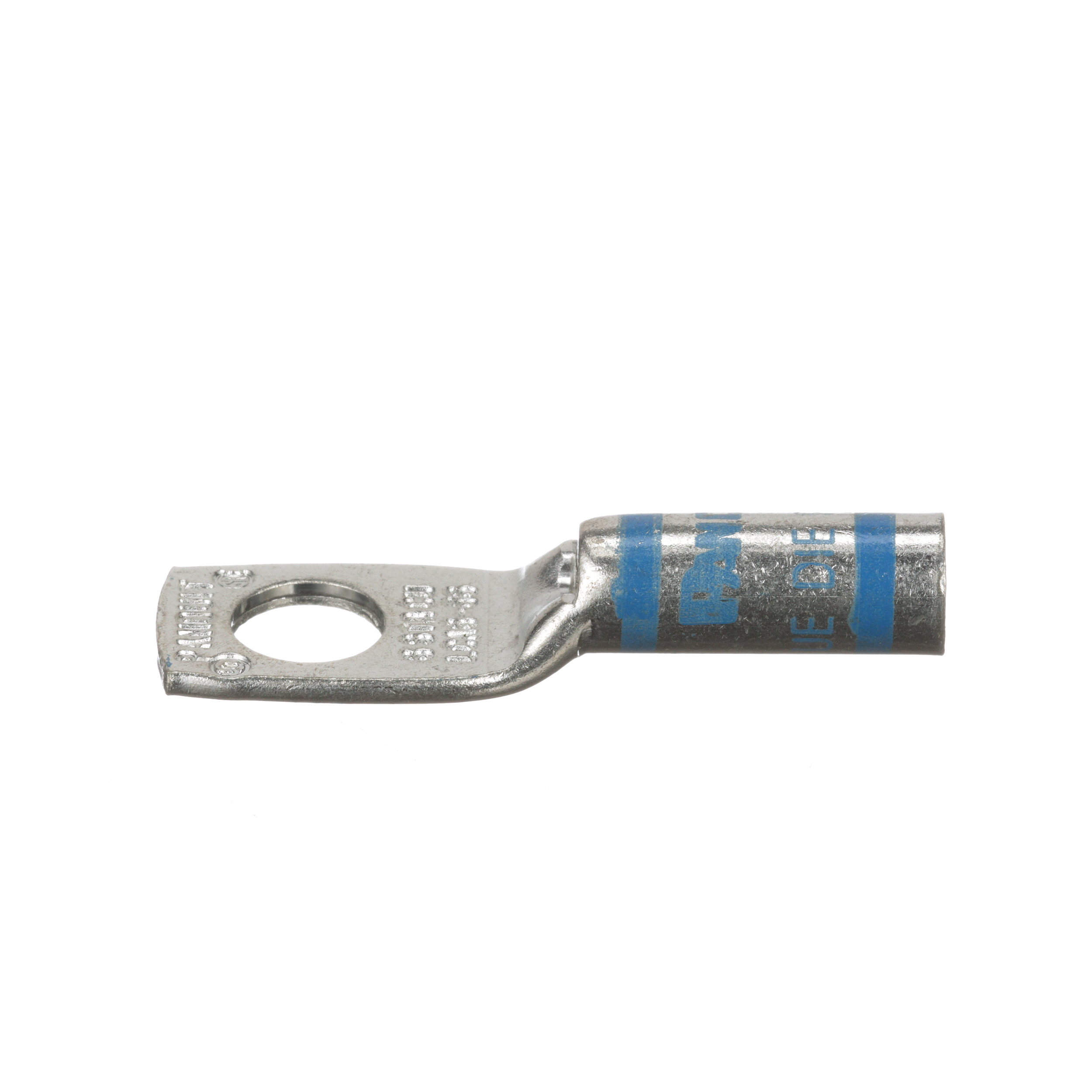

The LCA6-56-L Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.

Technical Information

Angle
Straight
Barrel Length
0.81 in
Barrel Type
Standard
Cable Size
AWG
Material
Copper
Number of Holes
1
Size
#6 AWG Code
Stud Size
0.3125 in
Tongue Thickness
0.07 in
Tongue Type
Standard
Tongue Width
0.56 in
Type
Type LCA

Packaging

Package Qty
50

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983900077
Color
Blue
Finish
Tin Plated
GTiN
00074983900077
Product UPC
07498390007

Dimensions

Outer Diameter
0.31 in
Overall Length
1.73 in

Certifications & Compliance

Country of Origin
Mexico
