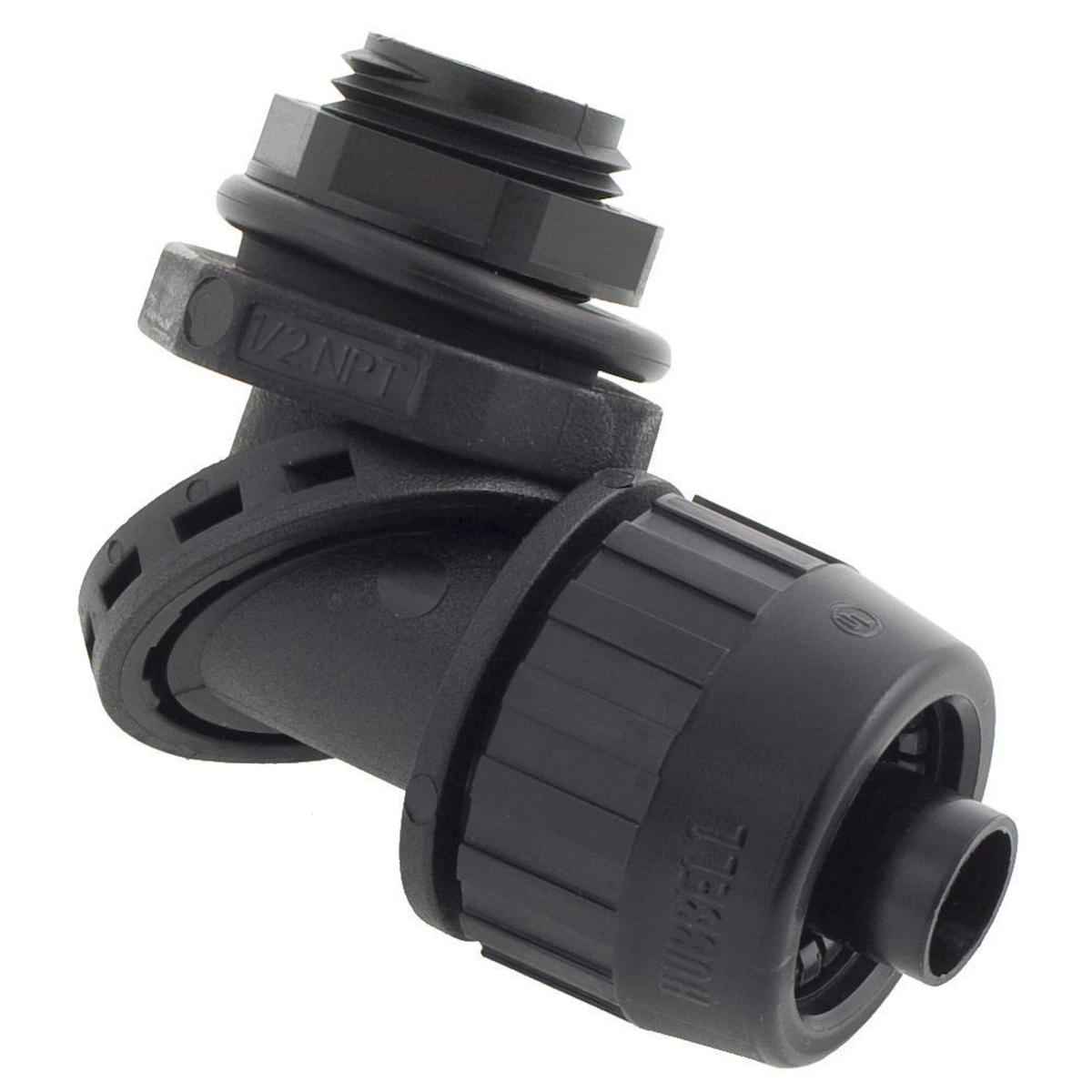

Elbow 90Dmale N-M liquidtite fitting 1/2" black

Manufacturer: Hubbell Wiring Devices | Catalog # PS0509NBK | Electrozad South Part # 77623
$14.53 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Hubbell POLYTUFF are non-metallic conduit and fittings made of PVC. Give high flexibility, non conductivity, corrosion resistance to suit harsh industrial environment. Sizes ranging from .. to 2 inch diameter. They come in straight fixed 90 degree elbow and swivel-lock connectors, in 2 pieces that allow adjustment for 0 to 90 degrees to get maximum flexibility in installation. Also available in strait, 45-90 degrees metallic connectors to suit type 3R, 4, 12 and 13 environmental rating.

Technical Information

Applications
Fittings are to be used with PolyTuff® I and PolyTuff® II
Material
Nylon
Size
1/2 in
Standard
12,13,CSA,UL,UL50 Type 4X
Style
SwivelLok® Multi-Position
TC Connection
External Threaded
Temperature Rating
-40 to 225 degrees C
Trade Size
1/2 in
Type
90°, One-Piece, Non-Metallic

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Kellems Wire Management

General Product Info

12-Digit UPC
783585339108
Color
Black
Environmental Conditions
Suitable for use in wet locations when a listed sealing ring is used between box and fitting
Finish
Smooth
GTIN
00783585339108
Product UPC
78358533910

Dimensions

Height
1 in
Length
3.300 in
Width
1.300 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Non integral ferrule provides conduit seal and pullout protection
  • Nylon compression nut has a tapered dome to tighten ferrule onto conduit
  • Neoprene O-ring provides liquidtight seal
  • Swiveled to any position from straight to 90°
