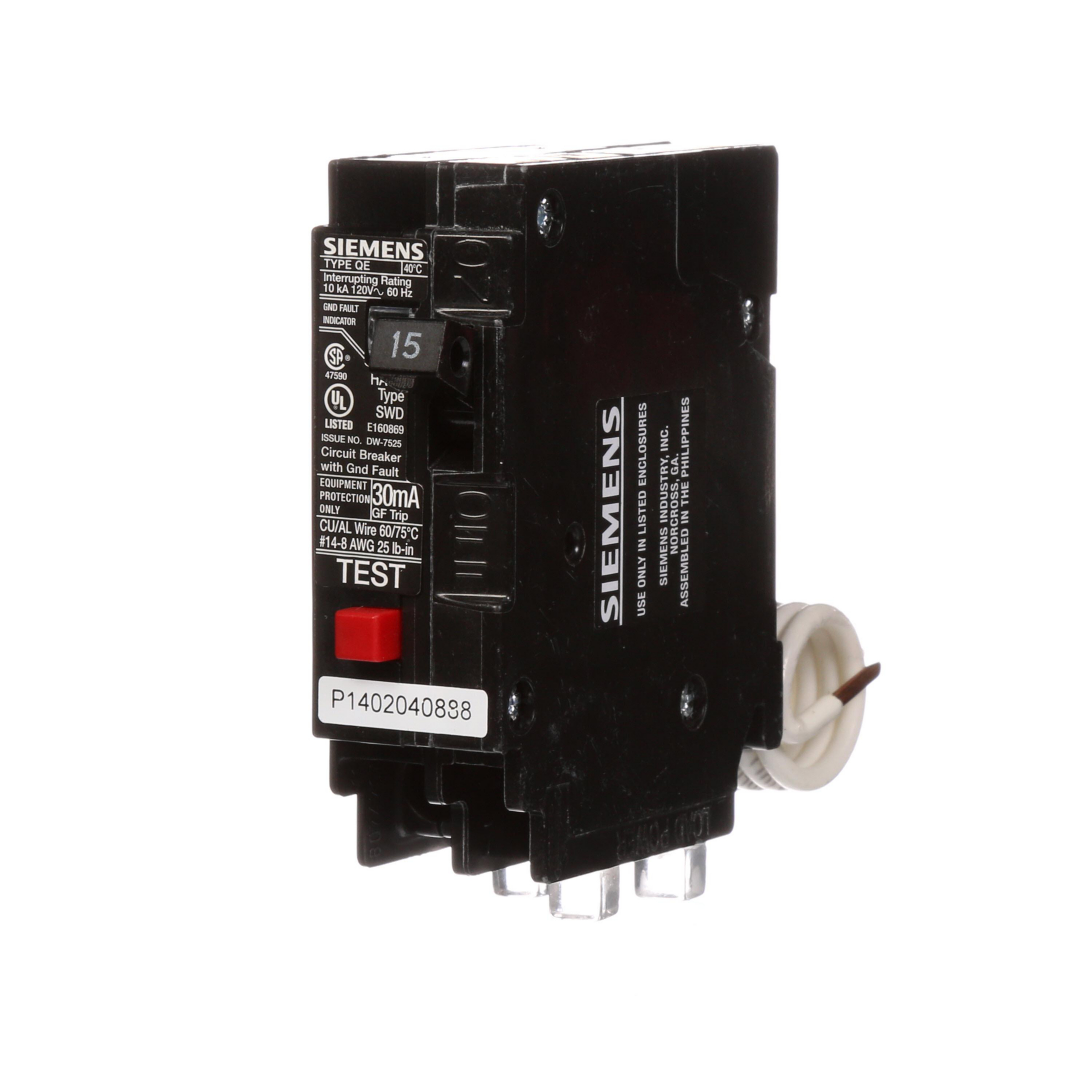

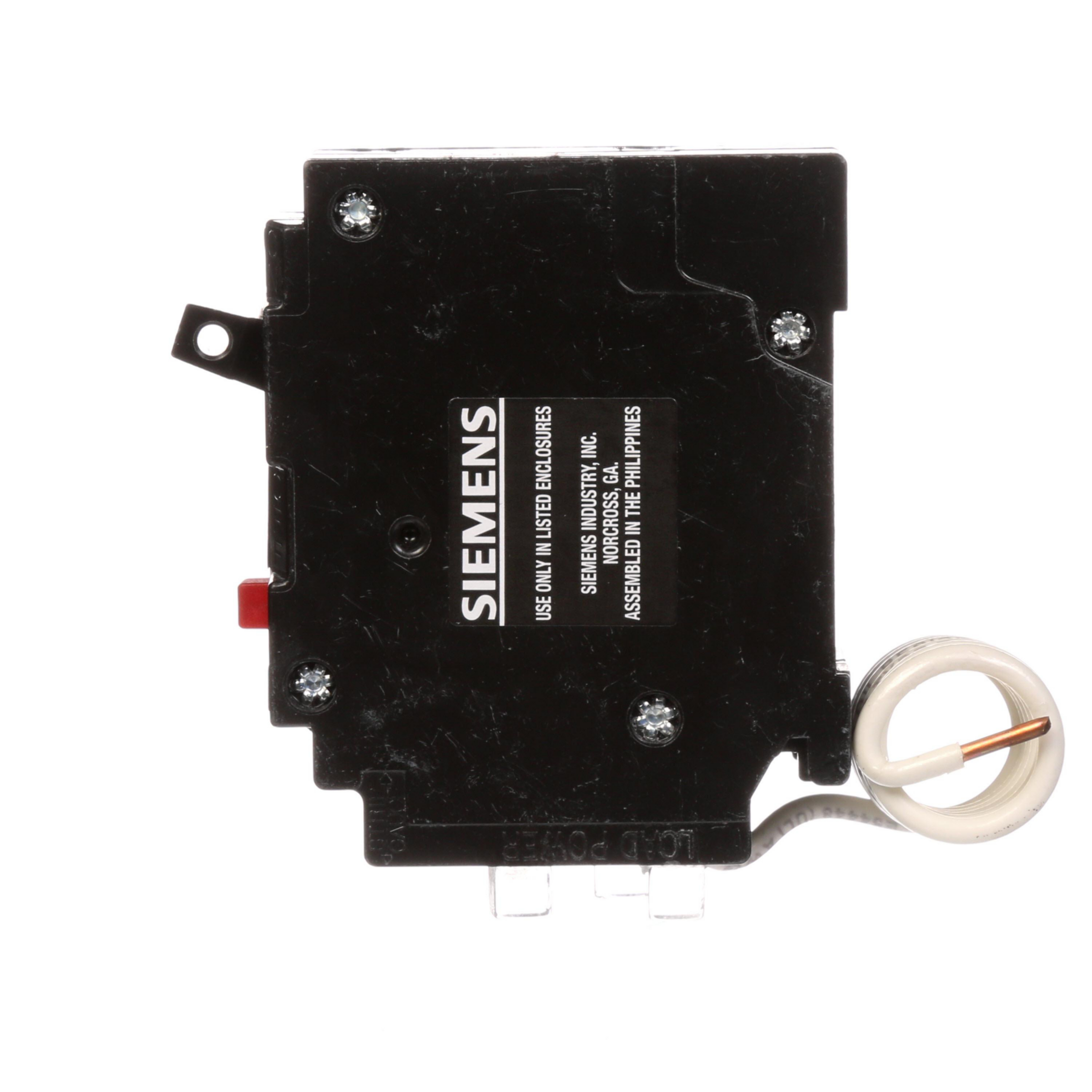

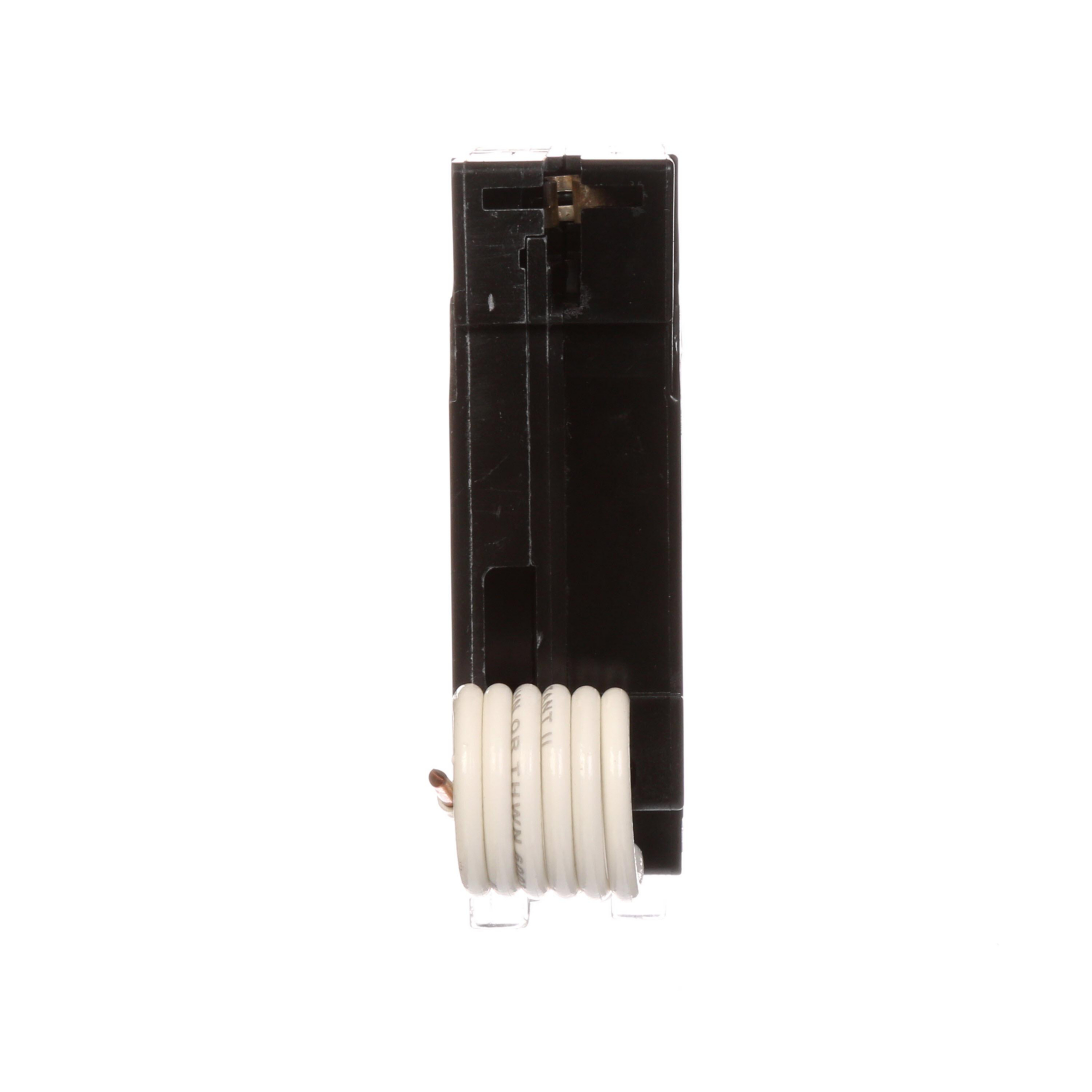

Product image for Breaker plug-in GFCI 1P 15A 120V GFI 30mA typeQE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Breaker plug-in GFCI 1P 15A 120V GFI 30mA typeQE

Manufacturer: Siemens Distribution | Catalog # QE115 | Electrozad South Part # 78516
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page D BRAND LOGO IMAGE URL
Molded case circuit plug-in GFCI breakers for panelboard mounting with insta-wire is an ground fault the equipment at 30 mA or person at 5mA trigging. Available in 4 types of tripping speed QF=10KA and QHF=22KA came on 1 pole 120vac, 2 poles 120/240vac versions.

Technical Information

Actuator
N/A
Amperage
15 A
Applications
Electrical Distribution
Conductor Size
14-10AWG(CU)/12-8AWG(AL)
Connection Type
Plug-In
Enclosure
N/A
Frame
N/A
Interrupt Rating
10 kA
Load Rating
N/A
Number of Phases
-99999
Number of Poles
1
Operating Temperature
N/A
Standard
CSA,UL
TC Connection
PLUG-IN
Trip Range
Thermal Magnetic
Trip Type
A-Curve, Thermal Magnetic
Type
QE

Manufacturer Information

Brand
Siemens
Sub Brand
Circuit Breakers

General Product Info

12-Digit UPC
783643229068
GTIN
00783643229068
Product UPC
78364322906
Weight
0.350 lb

Dimensions

Height
1.3 in
Length
4.4 in
Width
3.3 in

Certifications & Compliance

Country of Origin
Philippines
