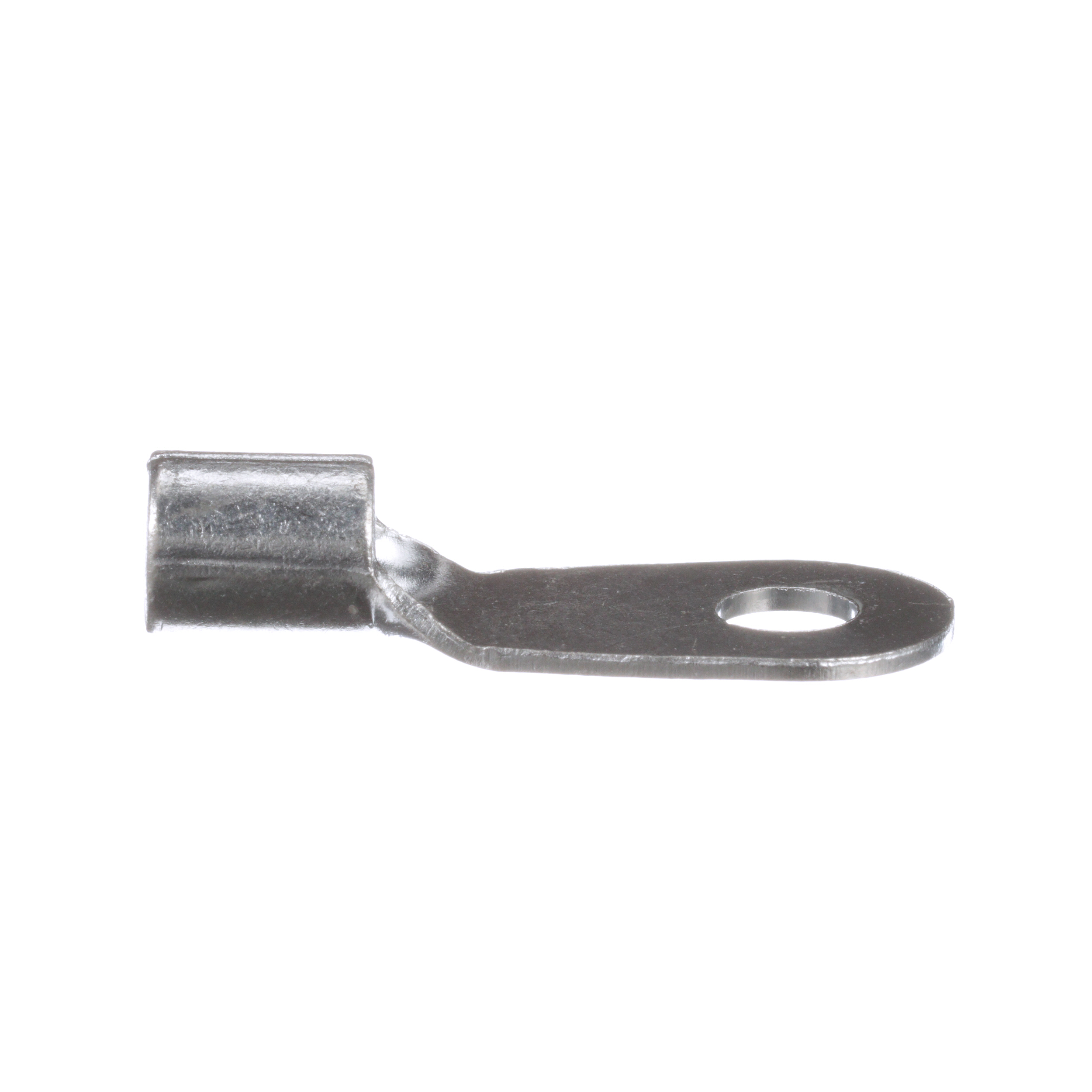

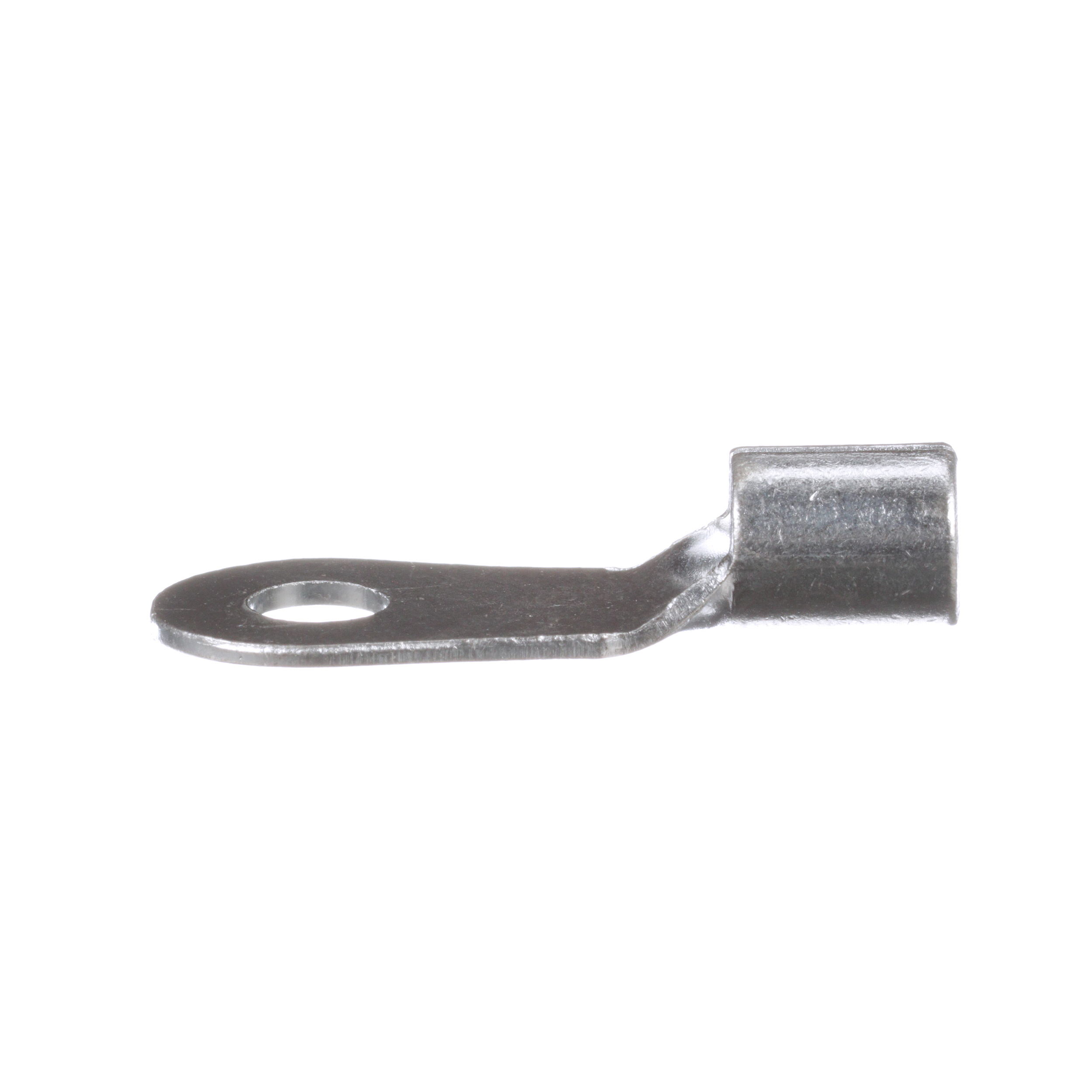

Pan-Term® P8-10R-T Ring Terminal, Bare, 8 AWG, #10 Stud, PK200

Manufacturer: Panduit | Catalog # P8-10R-T | Electrozad South Part # 78653
$755.50 /m (1000 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
The P8-10R-T Pan-Term® Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Length
0.46 in
Barrel Type
Brazed Seam
Color Coding
Metallic
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
150 degrees C
Size
#10
TC Connection
Standard
Temperature Rating
302 F
Tongue Thickness
0.04 in
Tongue Width
0.47 in
Type
Ring Terminal
Wire Size
#8 AWG

Packaging

Package Qty
200

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983870844
Color
NA
Finish
Tin-Plated
GTIN
00074983870844
Product UPC
07498387084

Dimensions

Outer Diameter
0.27 in
Overall Length
1.14 in
Width
0.47 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
