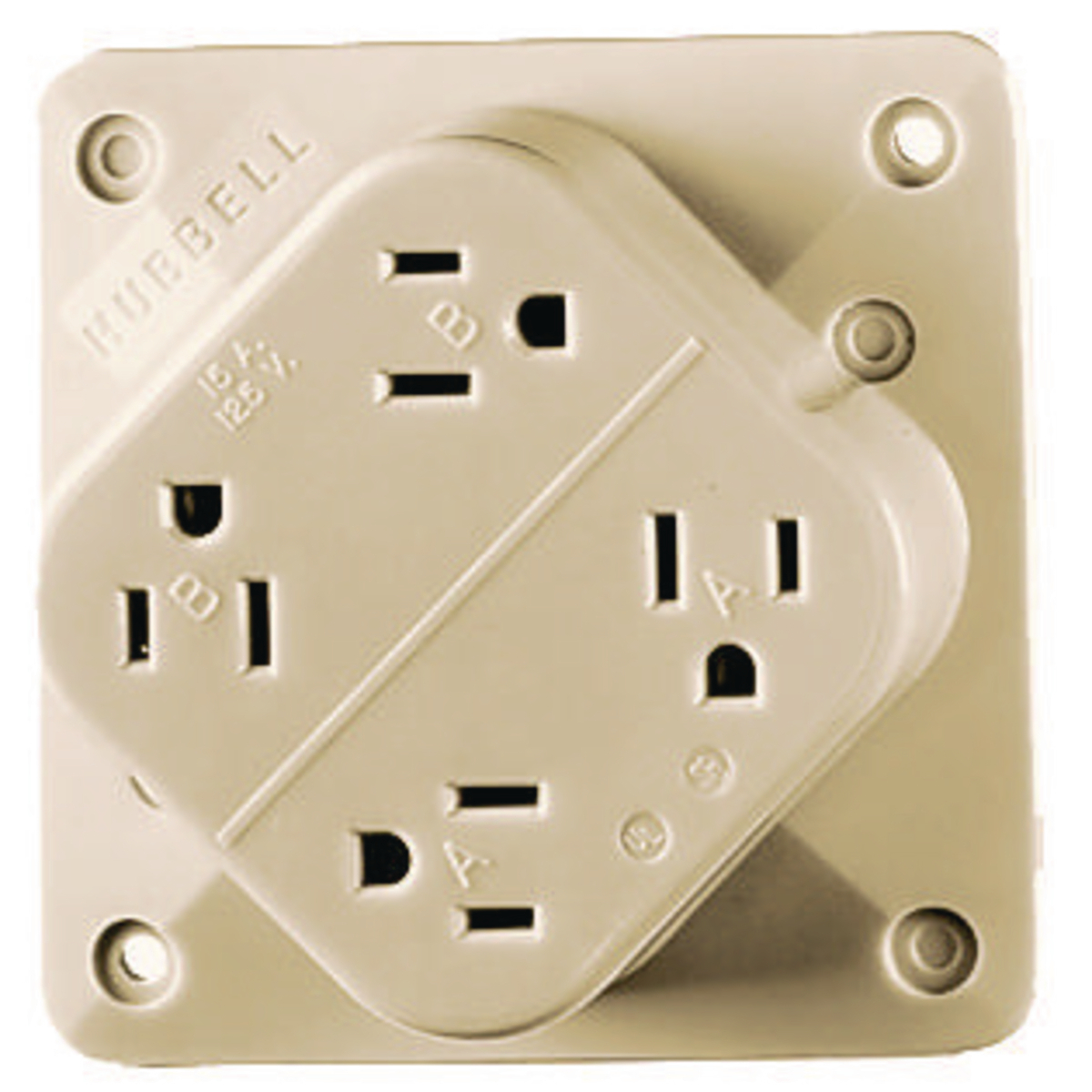

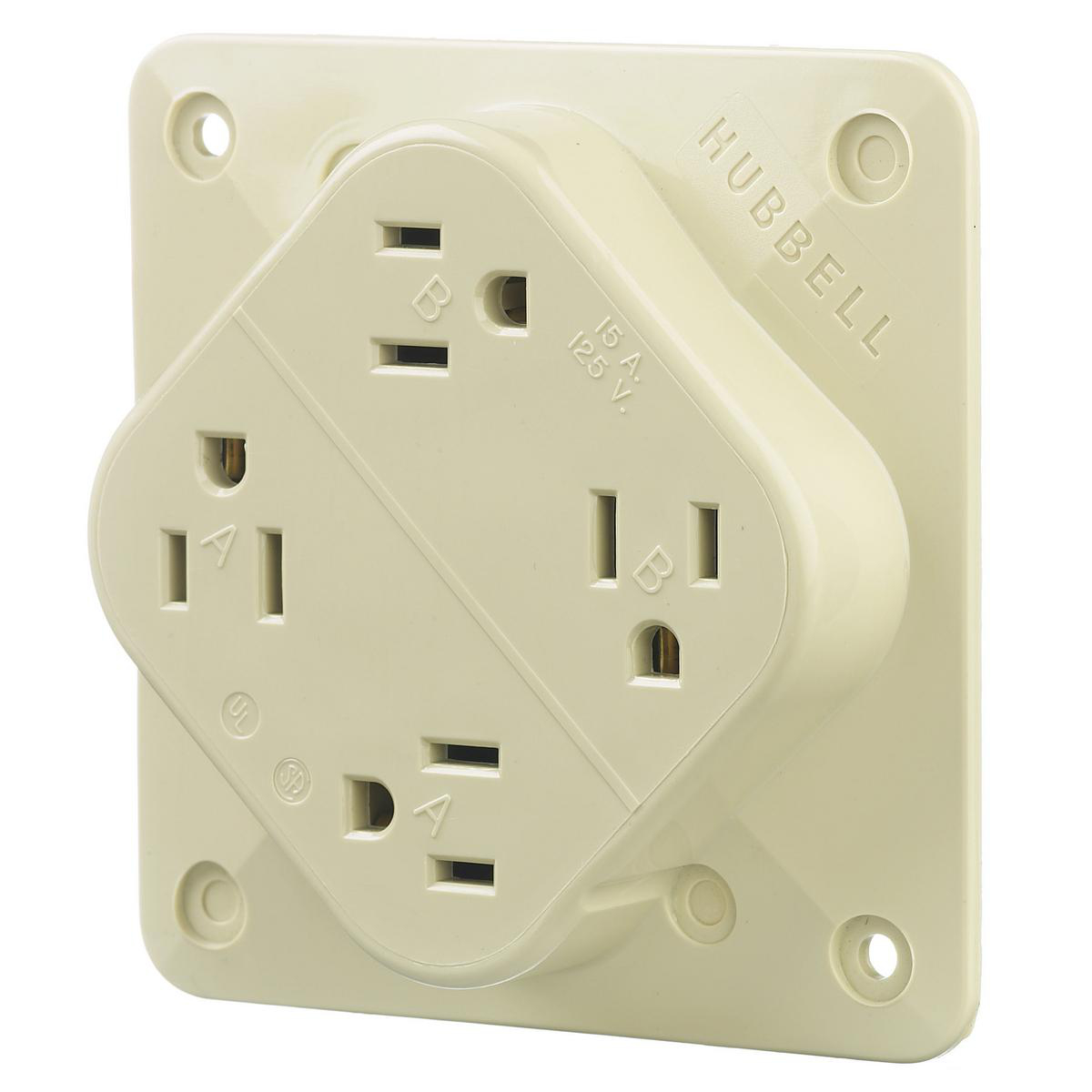

Receptacle 5-15R Quad 2P 15A 125V ivory

Manufacturer: Hubbell Wiring Devices | Catalog # HBL415I | Electrozad South Part # 78699
$70.37 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Hubbell 4-Plex receptacles offer 4 outlets strait blade into one device with only 3 wires connections to supply all of them. They are made of high impact thermoplastic. Available in brown, ivory, gray, white, red, black (commercial and hospital grade), orange (isolated ground), blue, ivory (surge suppression grade). Adapter plates are available to be mounted on portable, 1 or 2 gang flush and square flush boxes. They come in 2 poles, 3 wires 15 or 20 amp, 125 volts.

Technical Information

Amperage
15 A
Applications
Industrial
Base Material
PBT
Conductor Size
14 - 12 AWG
Current
15 A
Dielectric Strength
Withstands 2,000V minimum
Face Material
Polycarbonate
Grade
Industrial
Grounding
Grounding
Horsepower
0.50 hp
Material
Thermoplastic/Composite
Mounting Type
Screw, Surface
NEMA
5-15R
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
4.30 in x 0.92 in x 4.30 in
Standard
CSA,E2186,UL
TC Connection
Screw, 6 Terminals
Type
Quad Receptacle
Voltage
125 V
Wattage
1875 W
Wire Count
3
Wire Size
14 - 12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585013770
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585013770
Product Series
4-Outlet Receptacle
Product UPC
78358501377
Weight
0.4 lb

Dimensions

Height
4.30 in
Length
4.30 in
Width
0.92 in

Certifications & Compliance

Country of Origin
USA
Overview

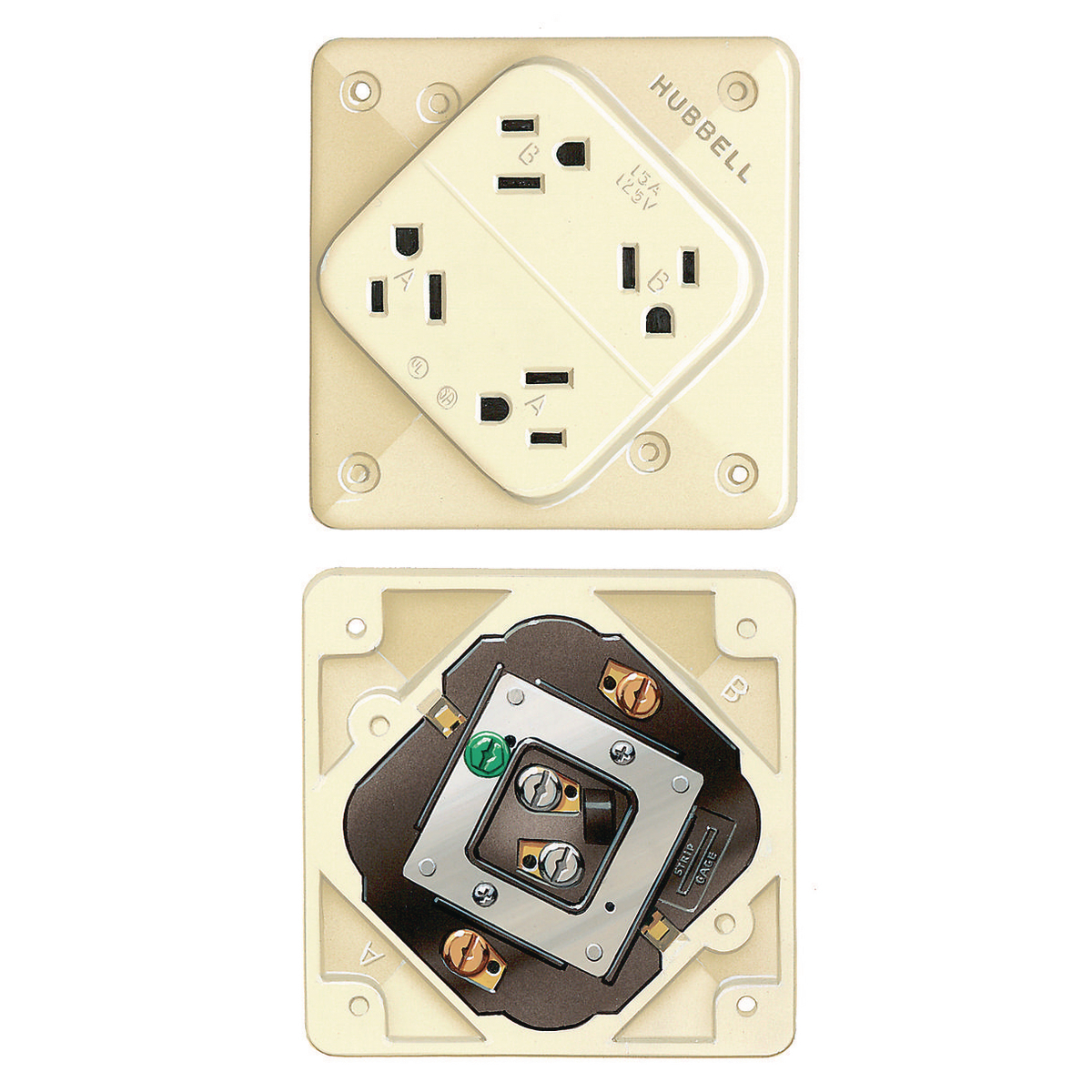

  • Easily accessible break-off tabs for split wiring
  • Anchor hole and loop feature secures solid wire for fast, easy terminations
  • Triple wipe contacts
  • Three conductors energize all four outlets
