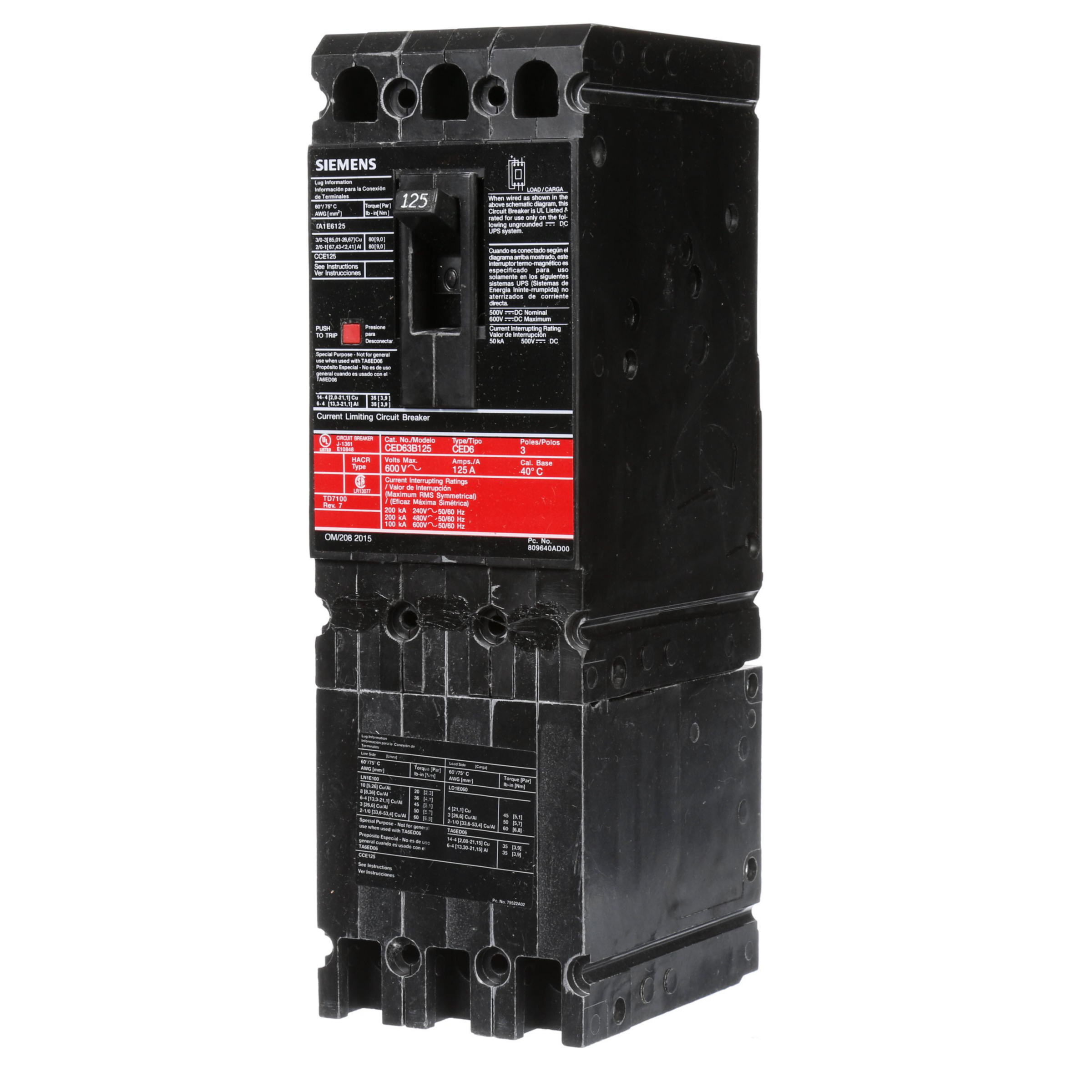

Product image for SIED CED63B125 BREAKER 125A 3P 600V
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

SIED CED63B125 BREAKER 125A 3P 600V

Manufacturer: Siemens Distribution | Catalog # CED63B125 | Electrozad South Part # 80118
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page
Molded case circuit FCL (fuseless current limiting) breakers for ED125A frame sentron mounting in 1 type of tripping speed CED6=100KA. Available in version 2 pole 250vdc/600vac, 3 poles 500vdc/600vac.

Technical Information

Actuator
Switch Position Knob
Applications
Standard 40C Breaker
Enclosure
Varying
Frame
ED
Interrupt Rating
100 kA
Load Rating
N/A
Number of Poles
3
Operating Temperature
40C
TC Connection
N/A
Temperature Rating
40 degrees C
Trip Range
N/A
Trip Type
Thermal Magnetic
Type
CED6

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643210776
GTIN
00783643210776
Product UPC
78364321077
Weight
1.070 lb

Dimensions

Height
5.550 in
Length
10.150 in
Width
3.850 in

Certifications & Compliance

Country of Origin
Mexico
