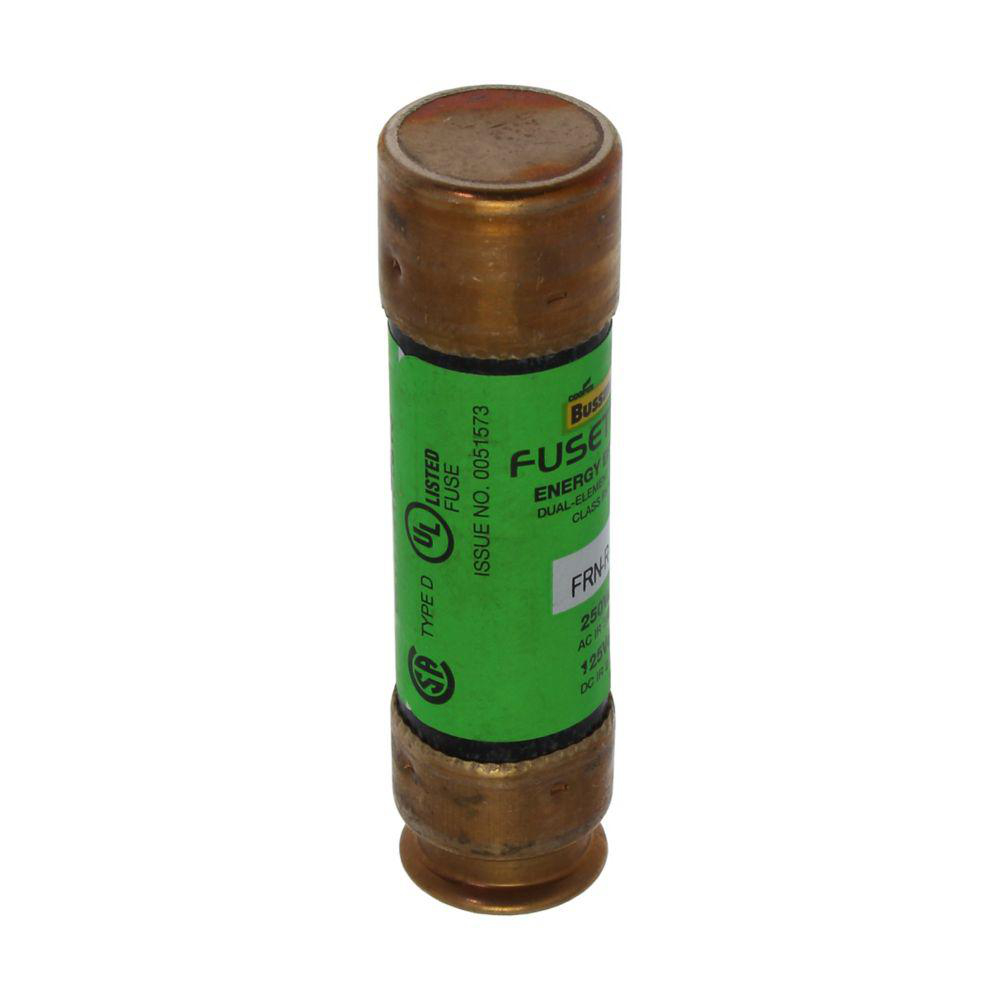

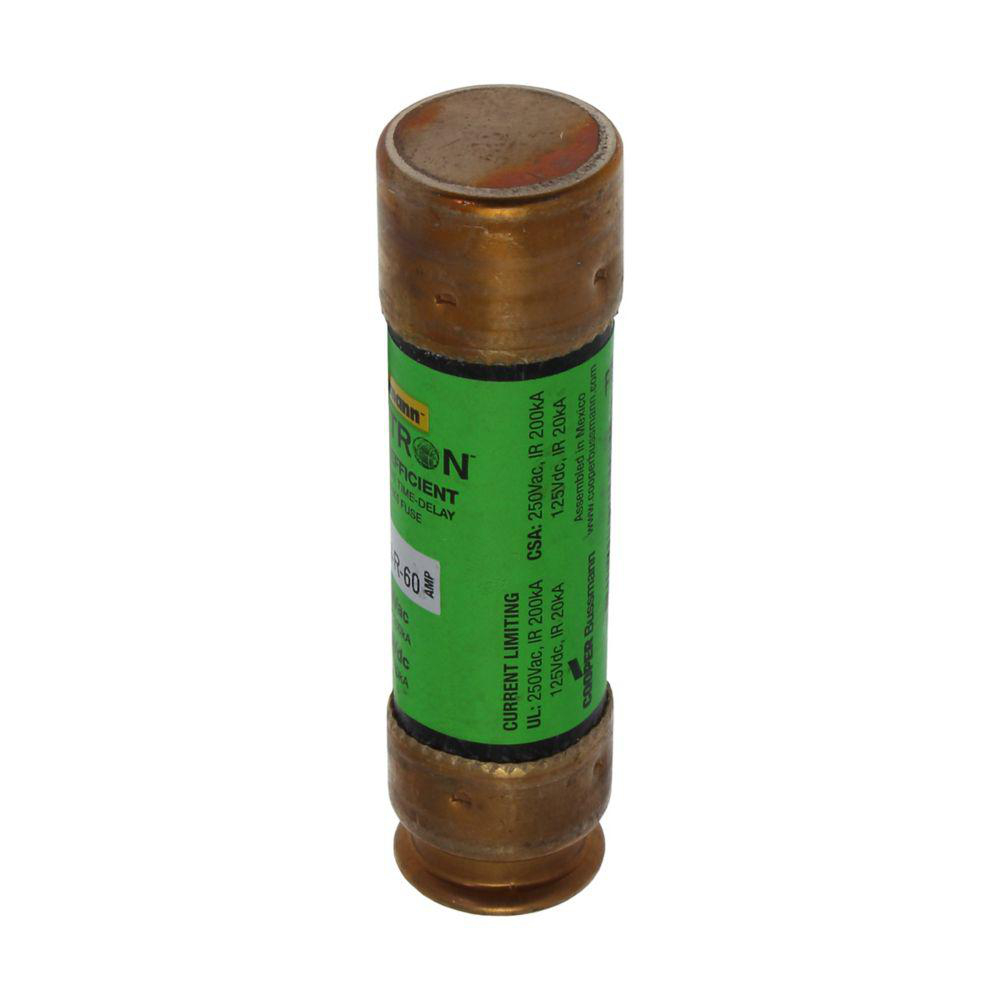

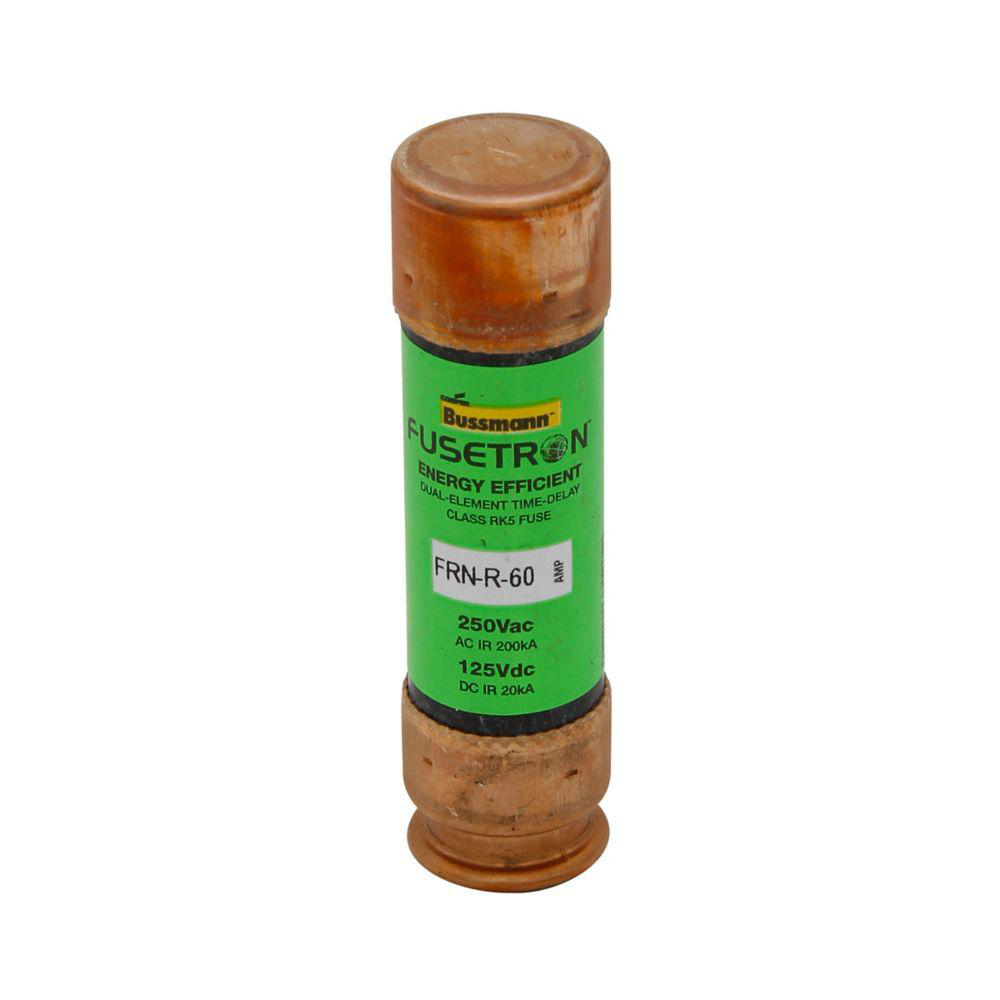

FUSETRON DUAL-ELEMENT CLASS RK5

Manufacturer: Bussman Cooper Fuses | Catalog # FRN-R-60 | Electrozad South Part # 8139
*Call For Price*
Log in or register to view your price, purchase history, and more!
8 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure H TECHNICAL DRAWING URL
Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 60 A, non-indicating fuse, interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc

Technical Information

Amperage
60 A
Applications
Combination Starters, Motor Control Centers, Machinery Disconnects and Power Panelboards Applications
Connection Type
Ferrule
Element
Dual
End Type
Ferrule
Fuse Class
Class RK5
Response Time
10 seconds at 500%
Size
0.81 In Diameter X 3.00 In Length
Standard
CE,CSA,UL 248-12
TC Connection
Ferrule end x ferrule end
Type
Current Limiting, Time Delay
Voltage
125 V

Manufacturer Information

Brand
Cooper Industries
Sub Brand
Bussmann™, Fusetron

General Product Info

12-Digit UPC
051712101813
Class
Class RK5
GTIN
00051712101813
Product UPC
51712101813
Weight
3.3 lb

Dimensions

Diameter
.81 in
Height
2.59 in
Length
2.59 in
