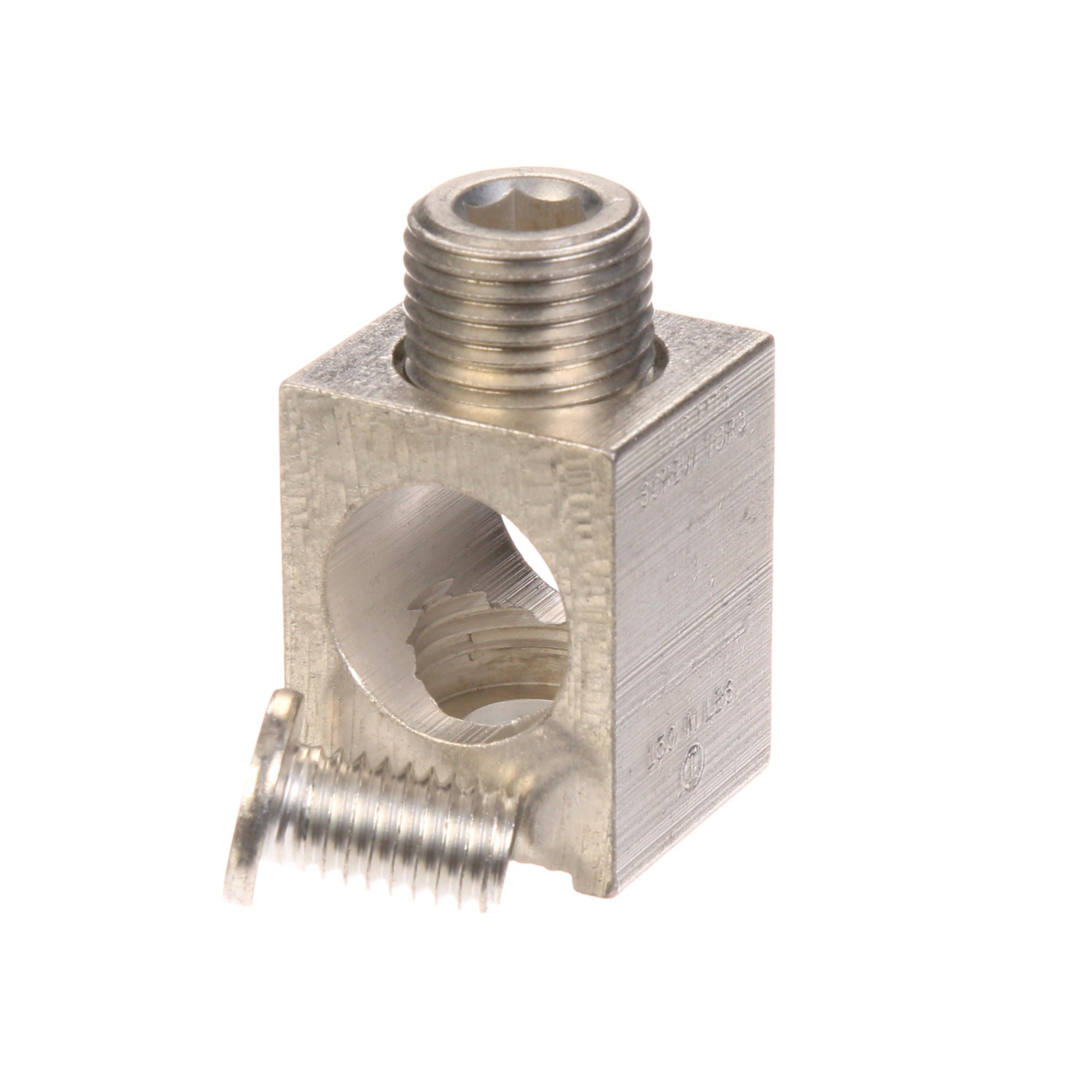

SIED TA1FD350A PRESSURE CONNECTOR FOR FD BRKR

Manufacturer: Siemens Distribution | Catalog # TA1FD350A | Electrozad South Part # 81708
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page
Lug for use with FXD6-A, FD6-A, HFD6, CFD6, HHFD6 circuit breakers, 6 AWG-350 kcmil copper, 4 AWG-350 kcmil aluminium, 1 cable per lug, 70-250 A circuit breaker rating.

Technical Information

Applications
FOR USE WITH FD FRAME
Conductor Size
4 AWG - 350 kcmil
Frame
FD
Material
Aluminum
Type
EXTERNAL ACCESSORY

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643173408
GTiN
00783643173408
Product UPC
78364317340
Used With
2/3 Pole Line and Load Sides FD Frame Breakers
Weight
0.115 lb

Dimensions

Height
1.700 in
Length
8.000 in
Width
6.950 in

Certifications & Compliance

Country of Origin
Mexico
