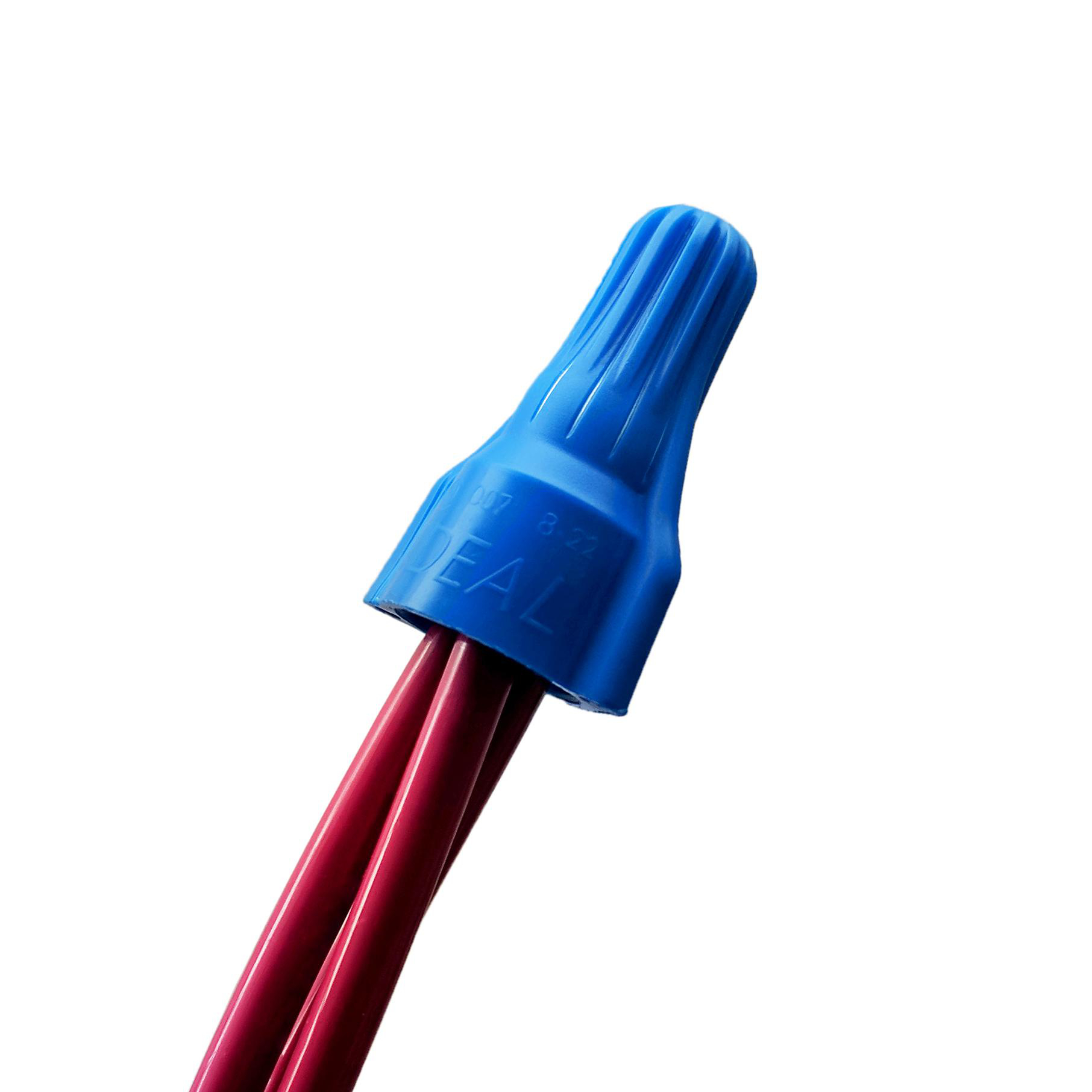

Product image for Connector wire blue 100/c-pak Can-Twist
Image thumbnail 0
Image thumbnail 1
Email

Connector wire blue 100/c-pak Can-Twist

Manufacturer: Ideal Industries | Catalog # 30-207 | Electrozad South Part # 8363
$15.34 /ea
pk
Log in or register to view your price, purchase history, and more!
14 available

For Delivery

Not in local stock *
Check another branch
D BRAND LOGO IMAGE URL
Can-Twist wire connector combinations from 22 to 8 AWG solid and/or stranded wires. Heat-set spring threads. Flexible walls showing wires firmly connected. Easily removed for repeat usage. Extended skirt length provides over-strip protection. Smaller size makes it easier to work in tight spaces. Wide mouth and square springs deliver quick pick-up. Swept wings provide added gripping power.

Technical Information

Conductor Size
22-8 AWG
Material
Thermoplastic
Number of Conductors
3
Temperature Rating
105 degrees C
Type
Wing

Manufacturer Information

Brand
Ideal
Sub Brand
Can-Twist™

General Product Info

12-Digit UPC
624141302078
Color
Blue
GTIN
00624141302078
Product UPC
62414130207

Dimensions

Diameter
3/4 in
Length
1-1/8 in
Overview
  • Operating temperature up to 105 ºC / 221 ºF
  • Extended skirt length provides over-strip protection
  • Wire combinations: min. 3x22 AWG / max. 3x10 AWG
  • Square-cut springs stay in place, and firmly grip wire for superior connectivity
  • Exceptional wire-range capacity - listed for hundreds of wire combinations from 22 to 8 AWG (solid and/or stranded)
  • Ergonomic, easy-twist design - only a few turns are needed to achieve torque, without the need to pre-twist wire
  • Sleek design helps reduce box fill
  • CSA Approved 20 amp / 600V (CSA 22.2 #188 Certified) - Cu/Cu only
  • Flexible outer shell virtually eliminates cracking, expanding to securely accommodate wire - indicated by white expansion lines
