Switch Decora® single-pole white 15a 120/277v

Manufacturer: Leviton Manufacturing | Catalog # 5657-2W | Electrozad South Part # 8659
*Call For Price*
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

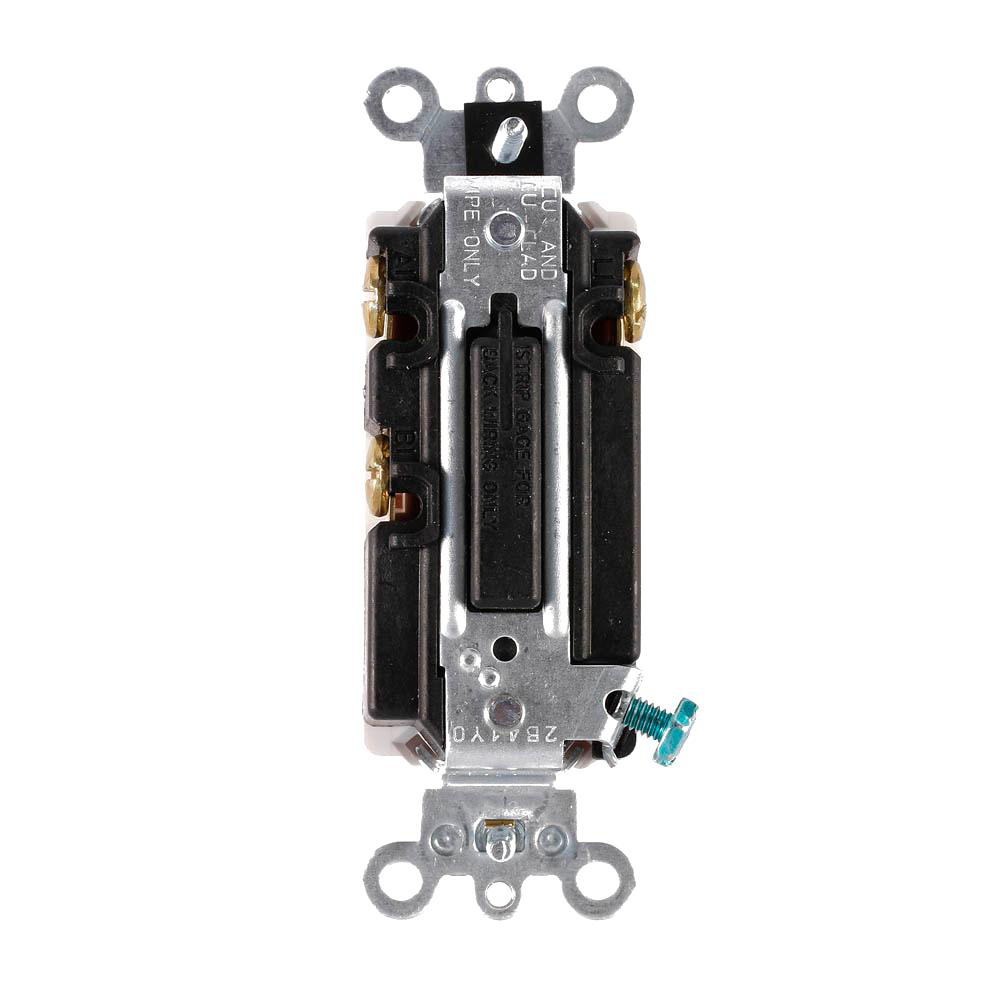

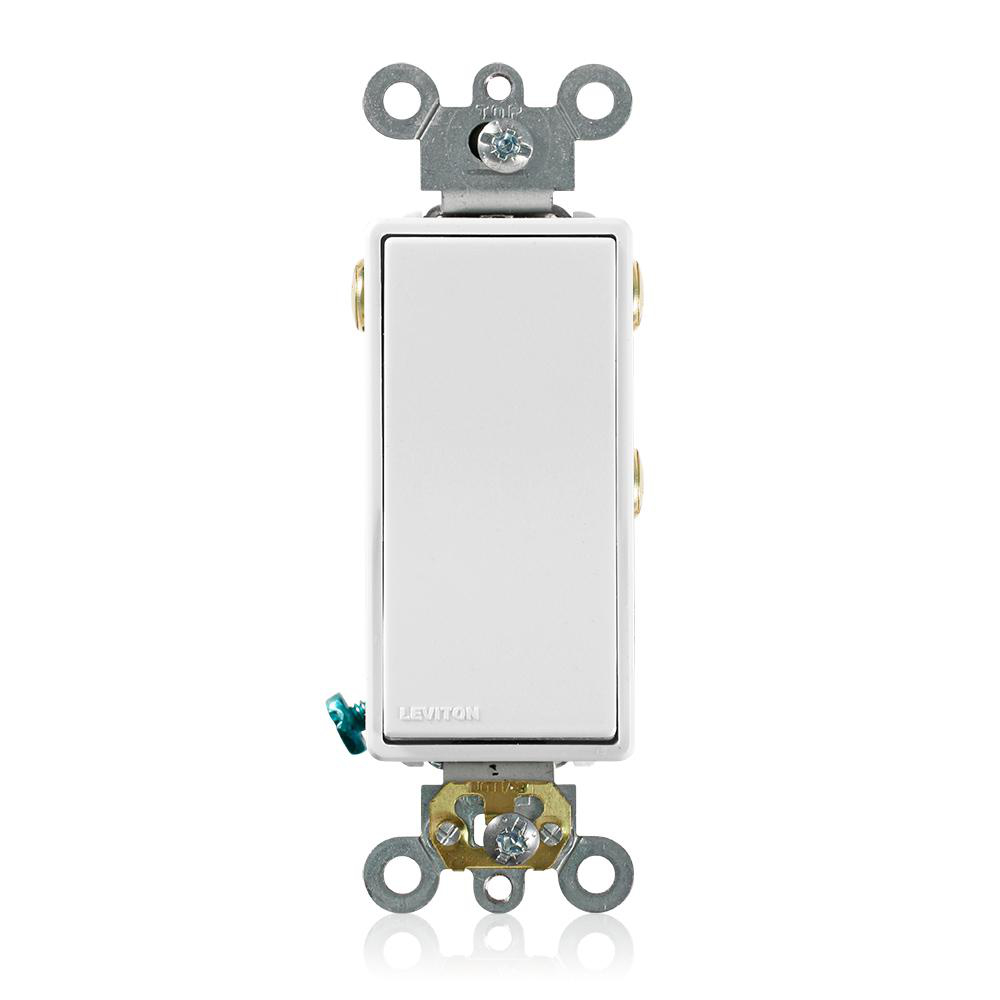

Decora® switch, Single pole, Double-throw Ctr-OFF, White, 15 A, 120/277 V, Momentary contact, AC quiet switch, Withstands dielectric voltage 1500 V for 1 minute, Commercial spec grade, Self grounding, Back and side wired.

Technical Information

Action
SPDT
Actuator
Rocker
Amperage
12 A
Applications
For Commercial use
Body Material
Thermoplastic
Connection Type
Back Wired,Side Wired
Contact Rating
120/277 VAC, 15 A
Device Type
Rocker Switch
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Max Current
12 A
Mounting Type
Box
NEMA
WD-1
Number of Poles
1
Operating Temperature
-40 degrees C
Size
46 H x 1.30 W IN
Standard
ANSI C-73
TC Connection
Back and Side Wire
Temperature Rating
-40 to 120 degrees C
Temperature Rise
30 degrees C
Terminal Type
Screw
Termination Type
Back Wire,Side Wire
Torque
12 lb-in
Type
Rocker Switch
Voltage
120/277 V

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477789674
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTIN
00078477789674
Product UPC
07847778967

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
