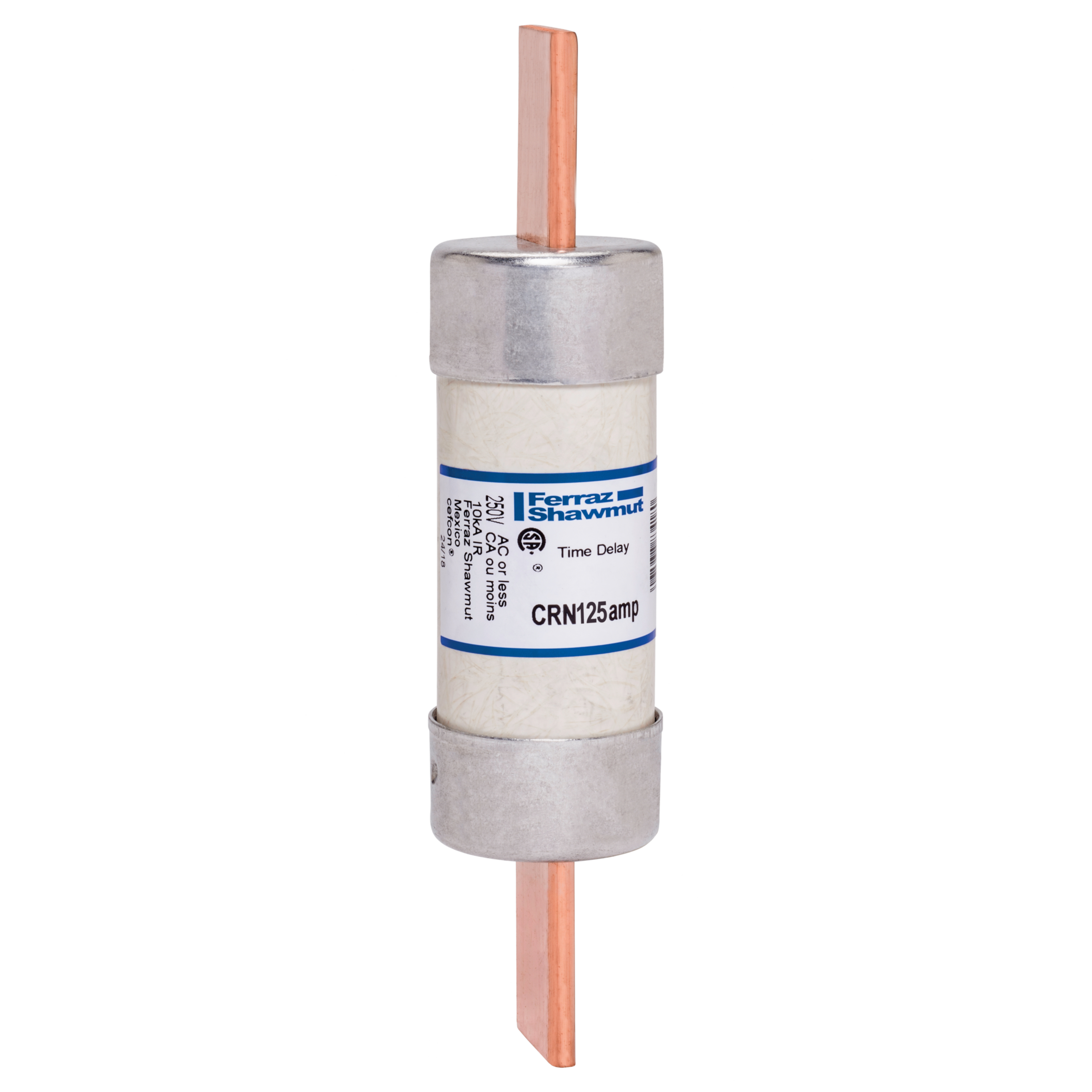

Product image for MERSEN CRN125 FUSE CLASS H 125A 250V TIME DELAY STANDARD CODE CSA TYPE D
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

MERSEN CRN125 FUSE CLASS H 125A 250V TIME DELAY STANDARD CODE CSA TYPE D

Manufacturer: Ferraz Shawmut Mersen | Catalog # CRN125 | Electrozad South Part # 9067
$34.31 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen CRN and CRS fuses are standard fuses, Type D, with 10kA short circuit rating. Type D fuses satisfy the Canadian Electrical Code requirement for low melting-point fuses

Technical Information

Amperage
125 A
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class H
Insulation Material
Paper
Mounting Type
Clip
Rated Voltage AC
250 V
Terminal Material
Copper
Terminal Type
Blade
Type
Time-Delay

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
068938834159
Class
H
GTIN
10068938834156
Product UPC
06893883415
Weight
0.77 lb

Dimensions

Diameter
1.56 in
Length
7.13 in
