Fitting floor fire-rated poke-through 2chnl alu

Manufacturer: Hubbell Wiring Devices | Catalog # S1PTFIT | Electrozad South Part # 92203
$534.68 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL

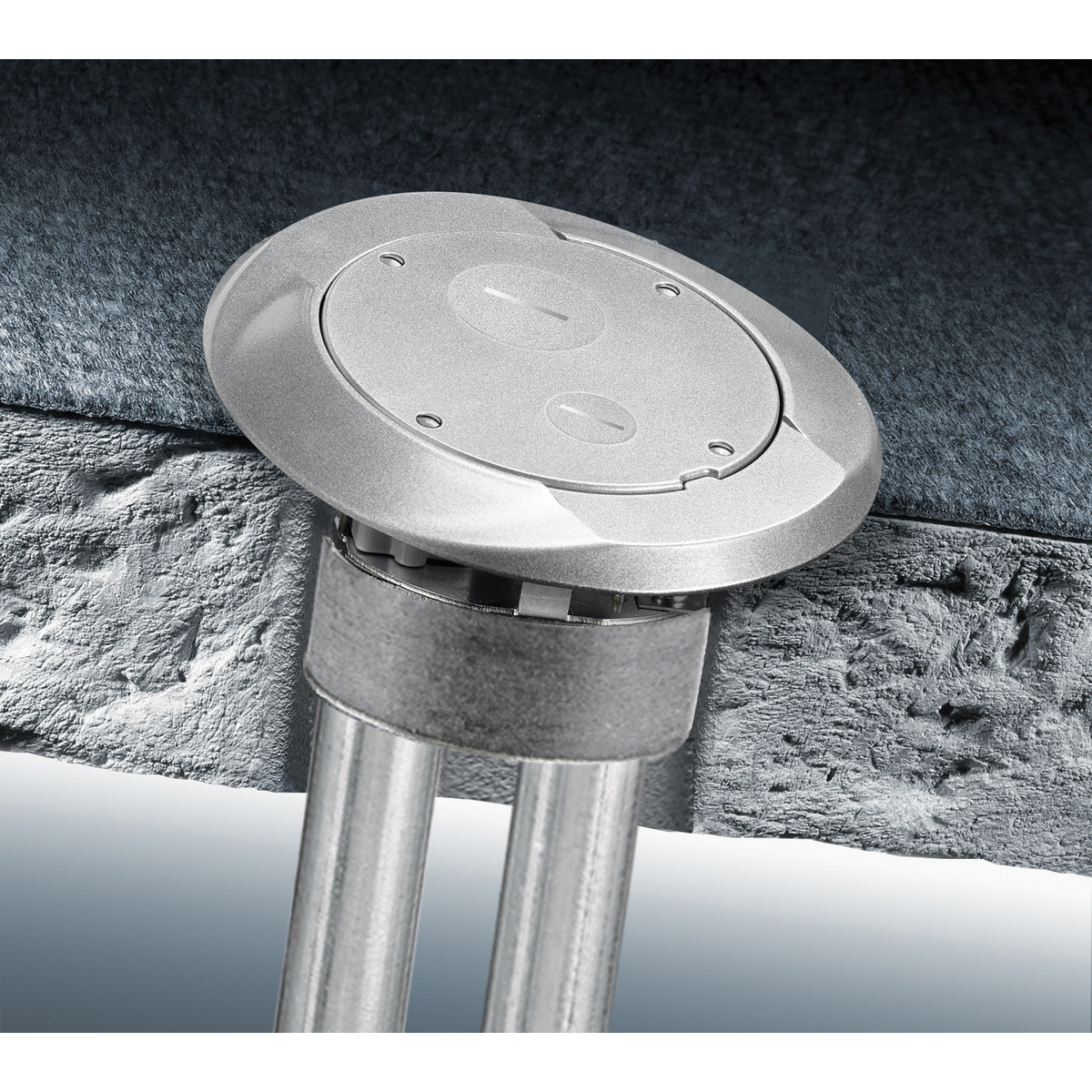

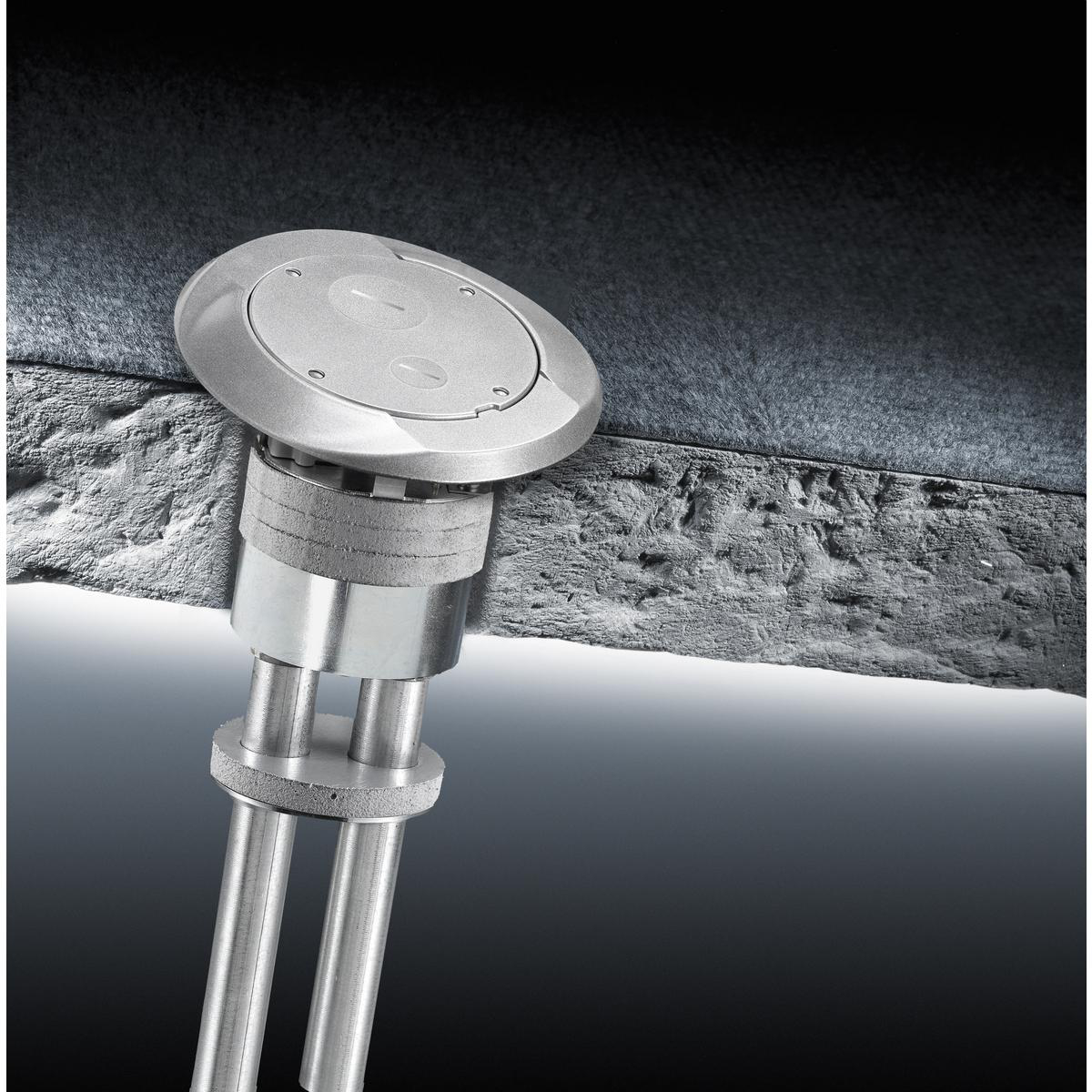

Fire-rated poke-through dual channel fitting, three-piece unit. Accepts all Hubbell SystemOne covers and sub-plates. Installs in 4 inch core hole. Through floor fitting with two 1 inch EMT trade size conduit stems to feed power and communication services. Fire barrier expands during fire conditions to maintain the floor...s fire rating. Adjustable lower fire barrier accommodates concrete floor thicknesses from 2.25 to 7 inch.

Technical Information

Applications
Through-Floor Fittings
Cable Entry
Through Cover
Material
Composite
Mounting Type
4 in Core Hole in Concrete Floor, Screw
Size
Standard Sized Product
Style
FRPT Fittings
Type
Flush Fire Rated Poke Throughs

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
SystemOne

General Product Info

12-Digit UPC
783585371023
Color
Metallic
Construction
Fabricated
GTIN
00783585371023
Product UPC
78358537102
Weight
4.1 lb

Dimensions

Height
7.900 in
Length
16.600 in
Width
9.2 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Junction Box Sold Separately
  • (1) 1\" EMT for Power
  • 4\" Fire-Rated Poke-Through
  • For use with Universal Flange/Cover Assemblies and Subplates
  • (1) 1\" EMT Stem for Low Voltage
