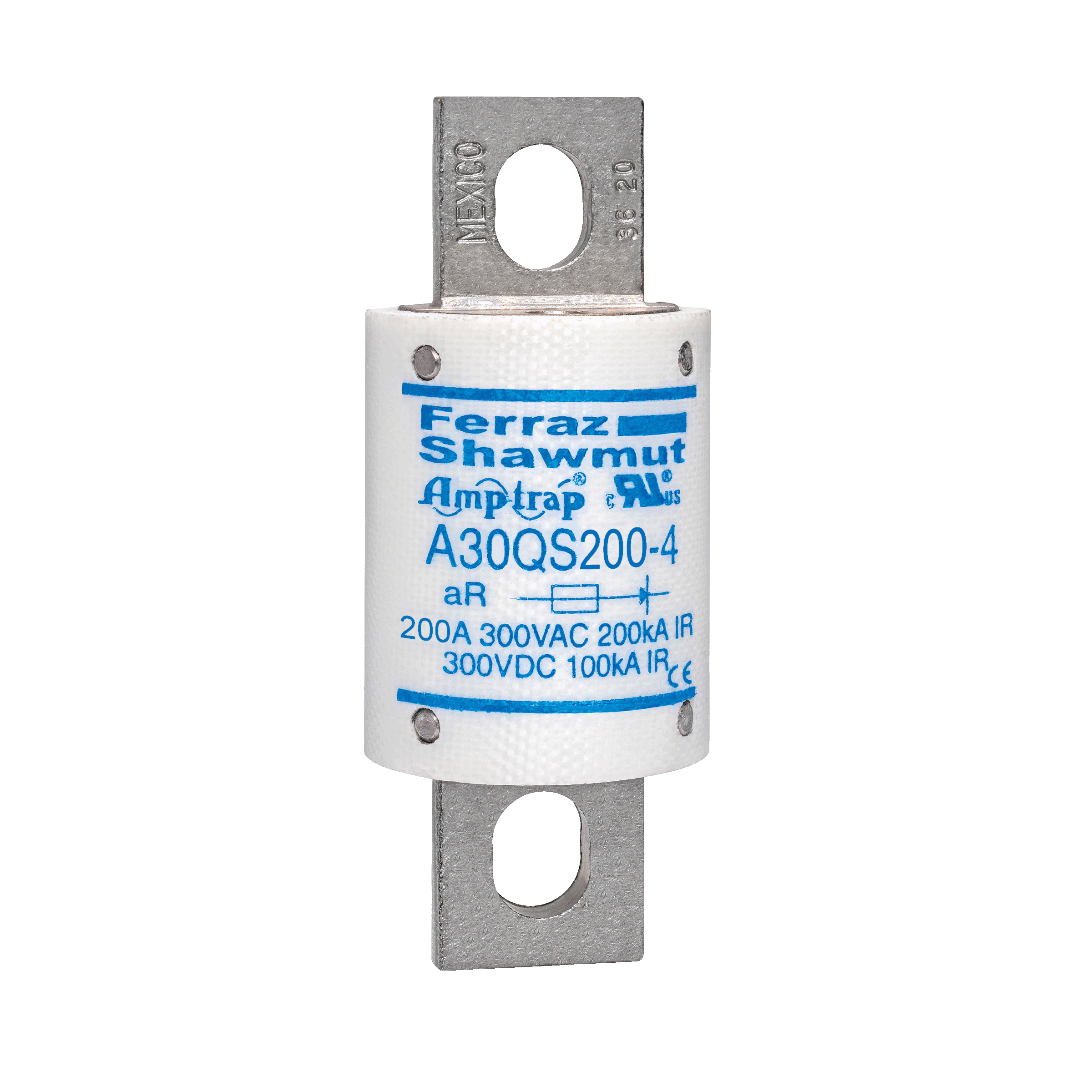

High Speed Fuse Amp-Trap® A30QS 300VAC 300VDC 200A Blade

Manufacturer: Ferraz Shawmut Mersen | Catalog # A30QS200-4 | Electrozad South Part # 926
$205.34 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet H TECHNICAL DRAWING URL
A30QS Amp-Trap® high speed fuses are intended for the protection of Power Semiconductors such as diodes, phase control SCRs and other power semiconductor devices. The A30QS is recommended for new applications providing solutions for your critical protection needs at 300V and less semiconductors.

Technical Information

Amperage
200 A
Applications
For Protection of 300 V or Less Heavy Duty Rectifiers and Similar Heavy Duty Power Supplies
Connection Type
Blade
Contact Material
Tin-Plated Brass
Frequency
50/60 Hz
Insulation Material
GMG
Max Operating Temperature
80 degrees C
Mounting Type
Bolt-In
Rated Voltage AC
300 V
Rated Voltage DC
300 V
Response Time
10 Millisecond
TC Connection
Blade
Terminal Material
Tin-Plated Brass
Terminal Type
Blade
Type
High Speed, Form 101, Fast Acting
Voltage
300 V

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001280802
Construction
GMG
GTIN
30782001280803
Product UPC
78200128080
Weight
0.3 lb

Dimensions

Diameter
1.22 in
Length
3.13 in

Certifications & Compliance

Country of Origin
Mexico
