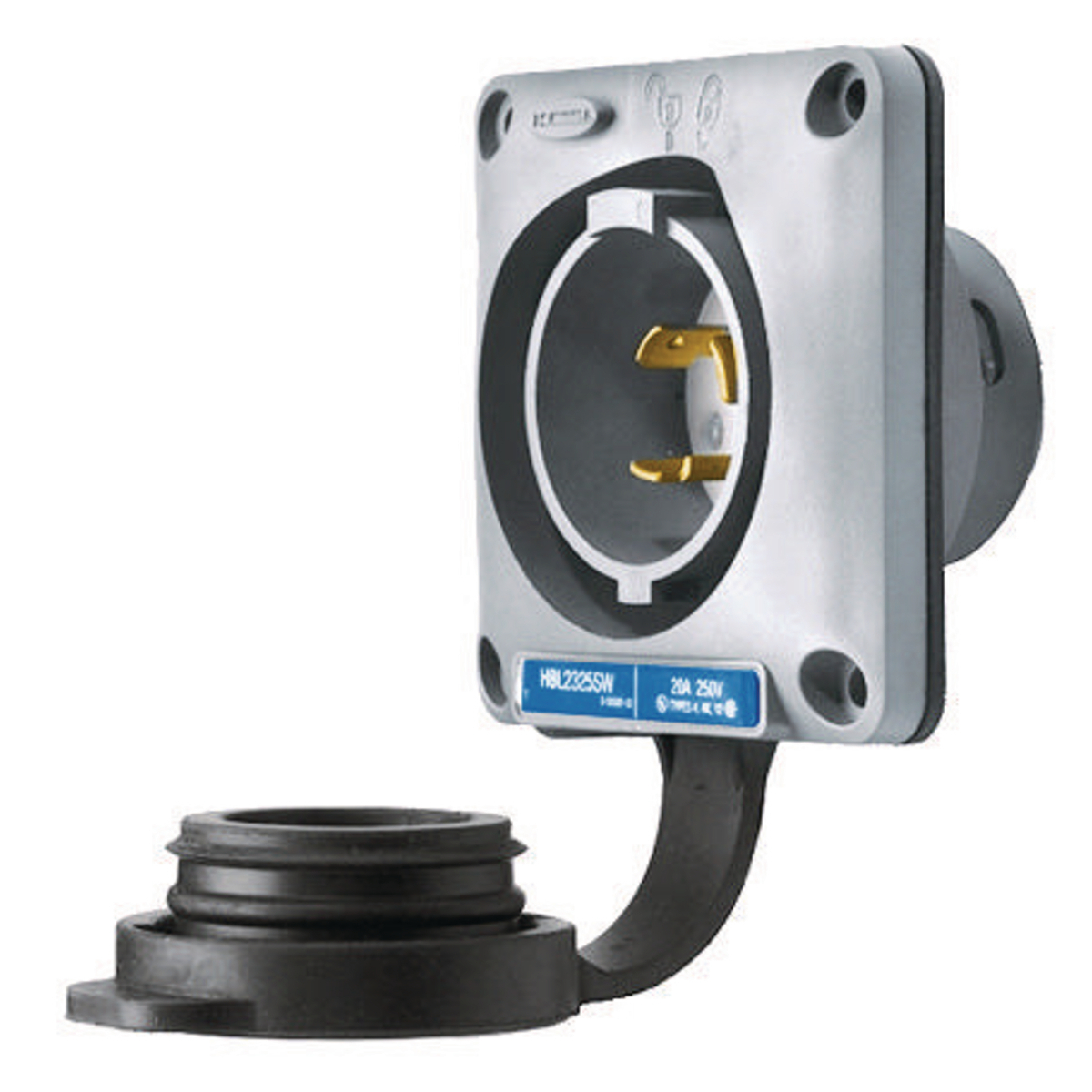

Plug L6-20P inlet twlo+door 2P 20A 250V gray

Manufacturer: Hubbell Wiring Devices | Catalog # HBL2325SW | Electrozad South Part # 94085
$110.01 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Hubbell SAFETY SHROUD come in black cable plugs and connectors with closure cap or grey surface inlet/outlet with door. Made of high impact thermoplastic UV resistant providing a type 4X watertight connection. The cord entrance is sealed through compression of the rubber gland. They come in version twist-lock 2 pole 125-250-277 volts, 3 pole 125/250 volts, 3 phase 250-480-120/208 volts in 20 and 30 amp models.

Technical Information

Amperage
20 A
Applications
Extra Heavy Duty Industrial
Conductor Size
12-10 AWG
Connection Type
Screw Terminal
Current
20 A
Dielectric Strength
Withstands 2,000V minimum
Horsepower
2 hp
Material
Thermoplastic
NEMA
L6-20P
Number of Conductors
3
Number of Phases
1
Number of Poles
2,2
Number of Ports
2
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
3.75 in x 3.75 in x 2.28 in
Standard
4X,CSA,Type 12,Type 4,UL
TC Connection
Screw Terminals
Temperature Rating
-40 degrees C
Type
Flanged Inlet
Voltage
250 V
Wattage
5000 W
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Safety-Shroud®

General Product Info

12-Digit UPC
783585231143
Color
Gray and White
Environmental Conditions
Watertight
GTIN
00783585231143
Product UPC
78358523114
Weight
0.60 lb

Dimensions

Height
2.28 in
Length
3.75 in
Width
3.75 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Catalog number and color-coded voltage rating are easily visible even when in use
  • Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
  • UL Type 4X Environmental seal protects connection while in use.
  • One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
  • Closure cap is included for environmental seal when device is not in use
