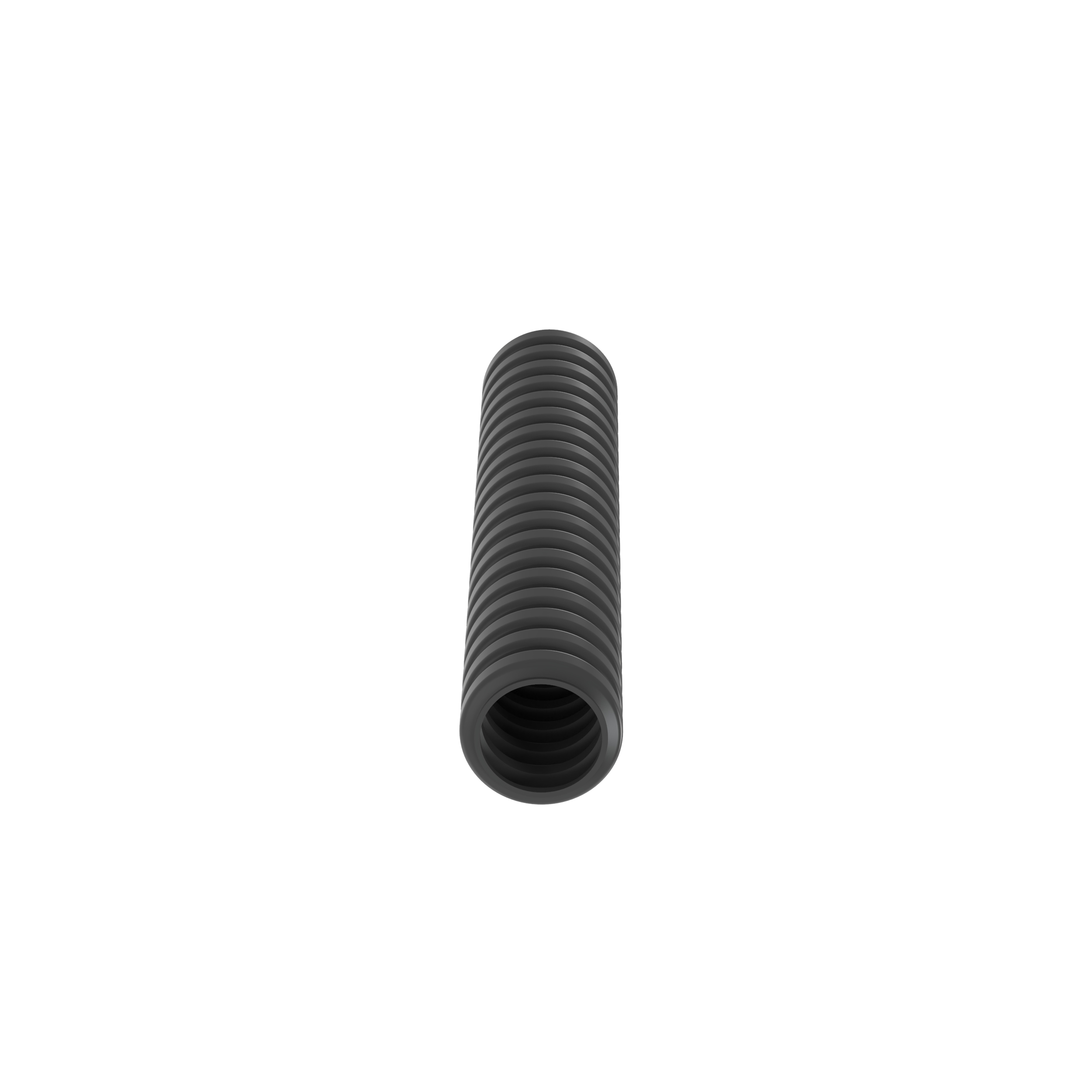

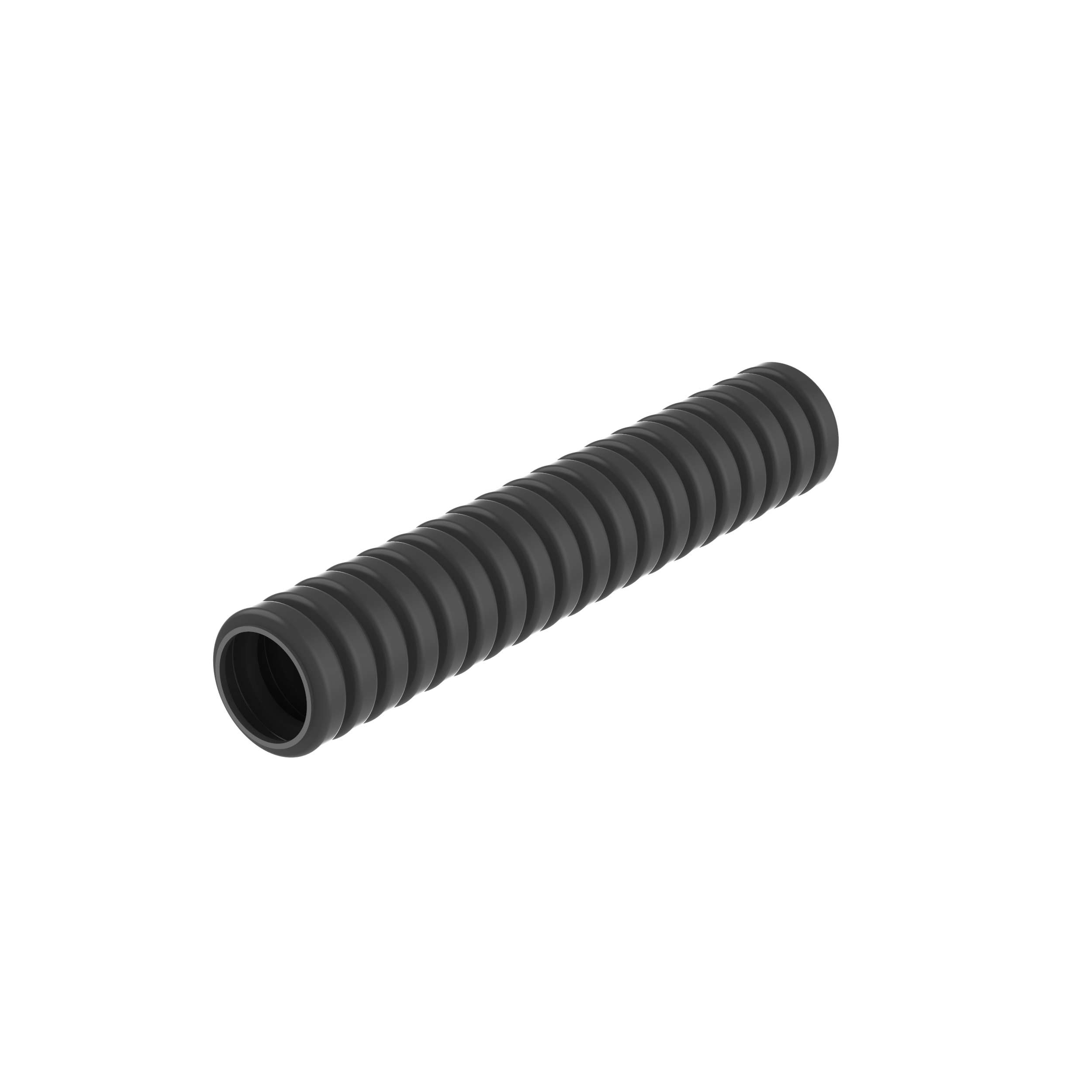

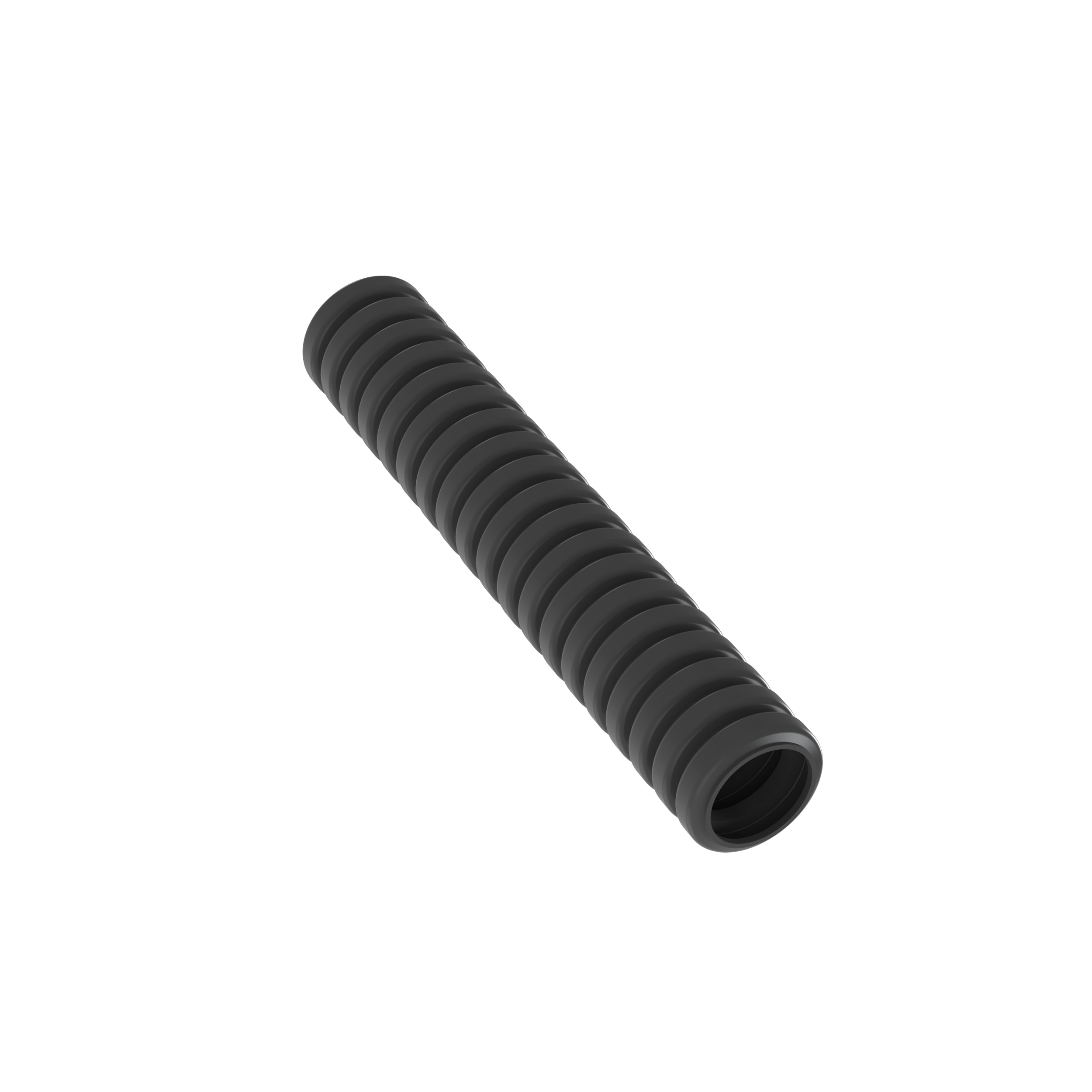

PANDUIT CLTS25F-C SOLID CORRUGATED LOOM TUBING 27"IDX39"OD

Manufacturer: Panduit | Catalog # CLTS25F-C | Electrozad South Part # 95522
$70.44 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure
The CLTS25F-C Corrugated Loom Solid Wall Tubing protects cables from impact and abrasion. Hold in place with push-type cable ties, adhesive, or push-type mounts. Suitable for indoor applications. UL94-HB flammability rating and a maximum temperature rating of 122°F (50°C). Polyethylene. Inside diameter 0.281" (7.14mm). Color Black. 1 per package.

Technical Information

Applications
Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor
Material
Polyethylene
Max Operating Temperature
122 degrees F
Minimum Operating Temperature
-40 degrees C
Temperature Rating
-40 - 122 degrees F
Type
Corrugated Loom Tubing

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit

General Product Info

12-Digit UPC
074983622481
Color
Black
Environment
Indoor
GTiN
00074983622481
Product UPC
07498362248

Dimensions

Inside Diameter
7.2 mm
Length
30.5 m
Outer Diameter
0.378 in
Outside Diameter
10.1 mm
Overall Length
100 ft

Certifications & Compliance

Country of Origin
USA
