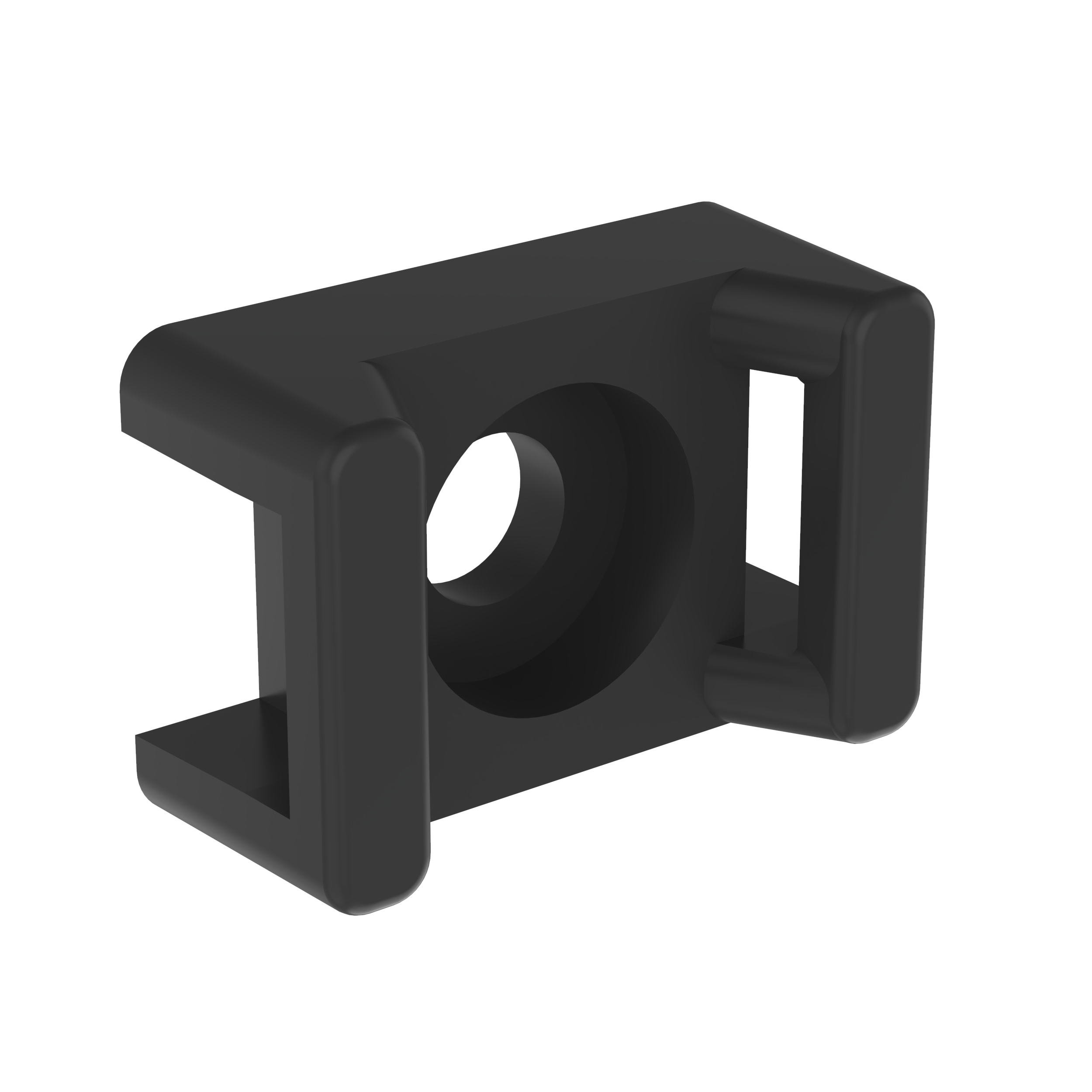

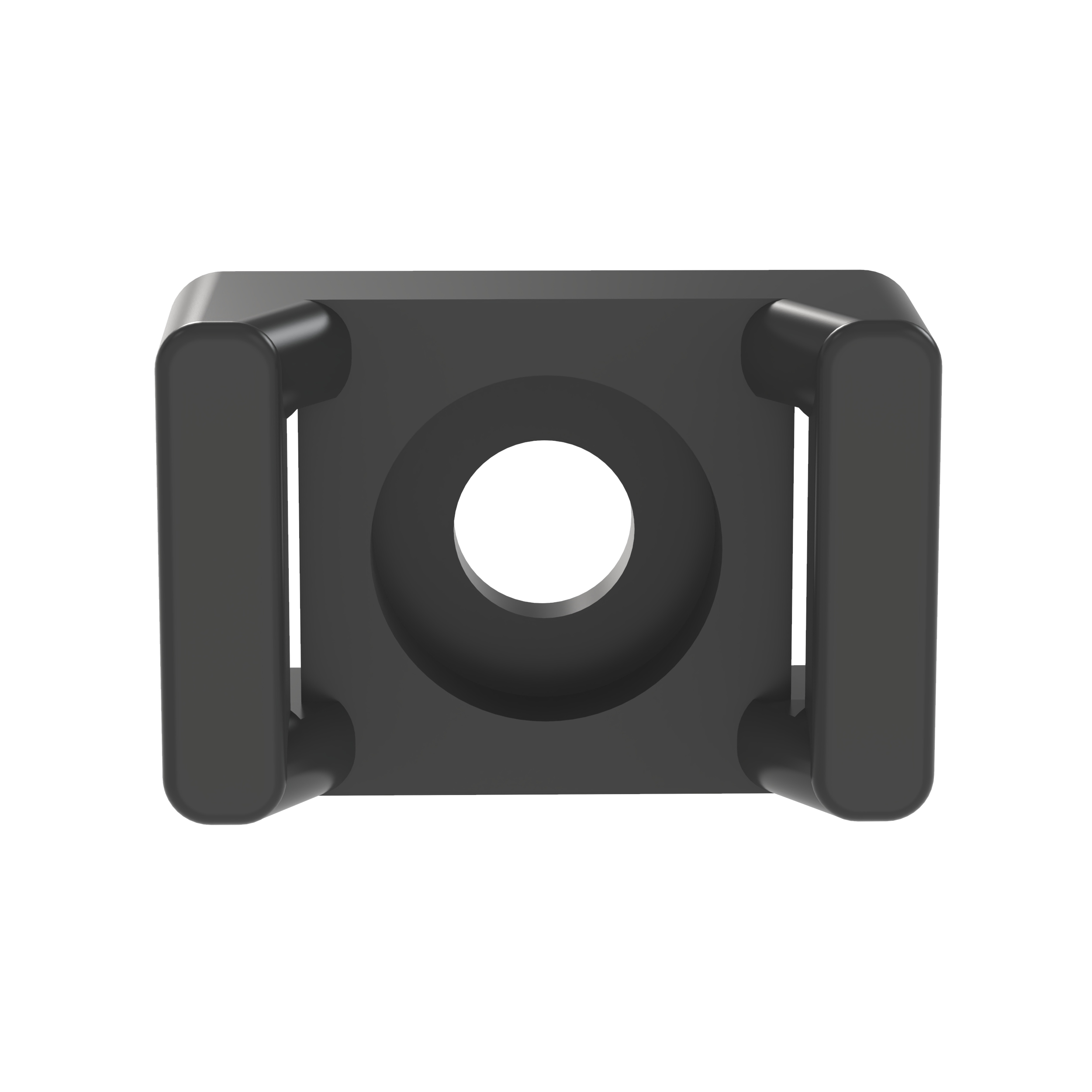

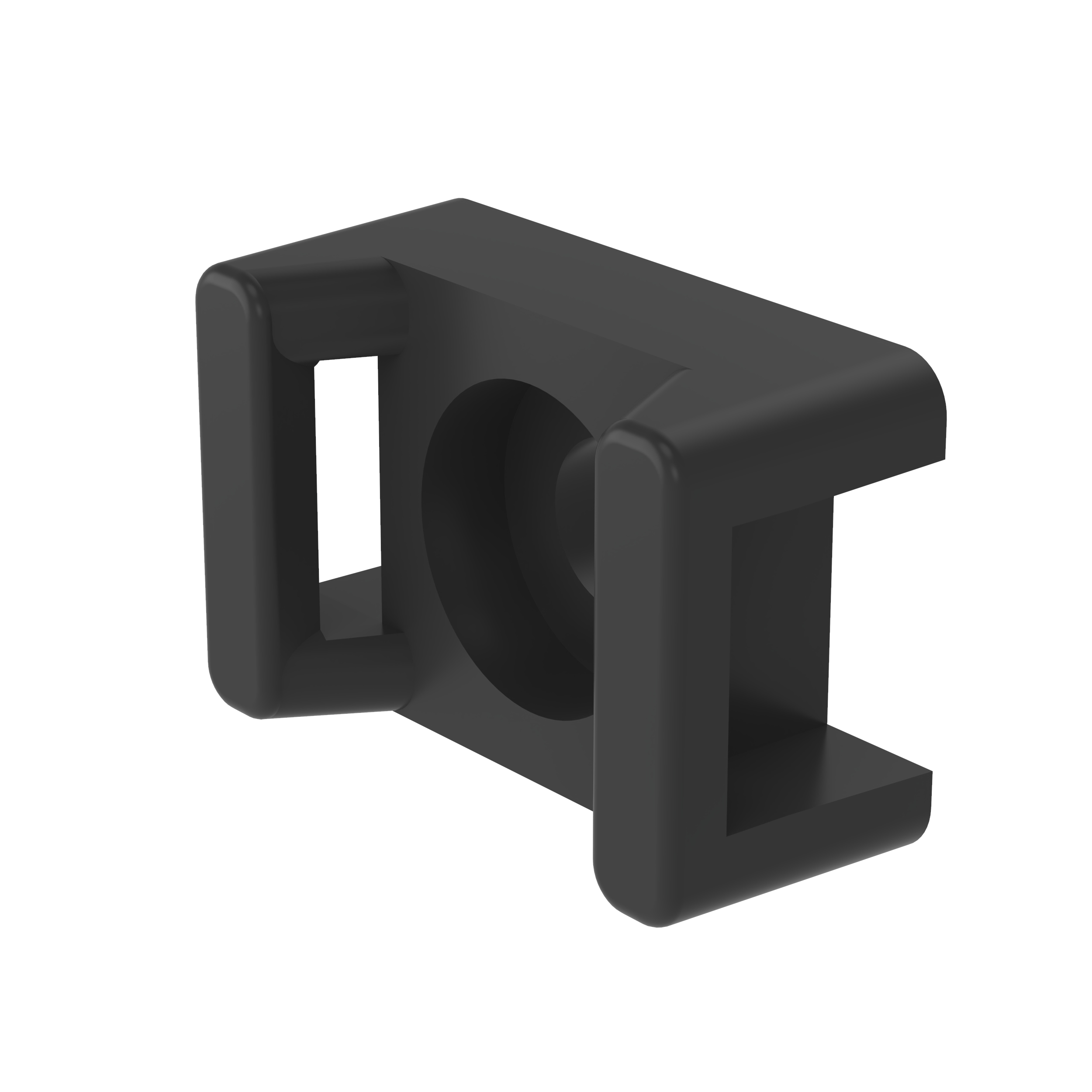

Product image for PANDUIT TM2S8-C0 HD CABLE TIE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

PANDUIT TM2S8-C0 HD CABLE TIE

Manufacturer: Panduit | Catalog # TM2S8-C0 | Electrozad South Part # 95840
$75.38 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Panduit TM2S8-C0 Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #8 (M4) screw. For outdoor use and are suitable for miniature, intermediate and standard cross-section cable ties. Made of Weather Resistant Nylon 6.6. They are 0.43" (10.9 mm) wide, are black in color and come in packages of 100.

Technical Information

Applications
For Indoor/Outdoor
Material
Nylon 6/6
Max Operating Temperature
185 degrees F
Minimum Operating Temperature
-60 degrees C
Mounting Type
Screw-On
Screw Size
#8 (M4)
Temperature Rating
-76 to 185 degrees F
Type
Screw Applied

Packaging

Package Qty
100
Standard Packaging Qty
100

Manufacturer Information

Brand
Panduit
Sub Brand
Cable Tie Mount

General Product Info

12-Digit UPC
074983482139
Color
Black
Environment
Indoor,Outdoor
GTIN
00074983482139
Product UPC
07498348213

Dimensions

Height
9.4 mm
Length
0.63 in
Overall Length
16 mm
Width
15.5 mm

Certifications & Compliance

Country of Origin
USA
