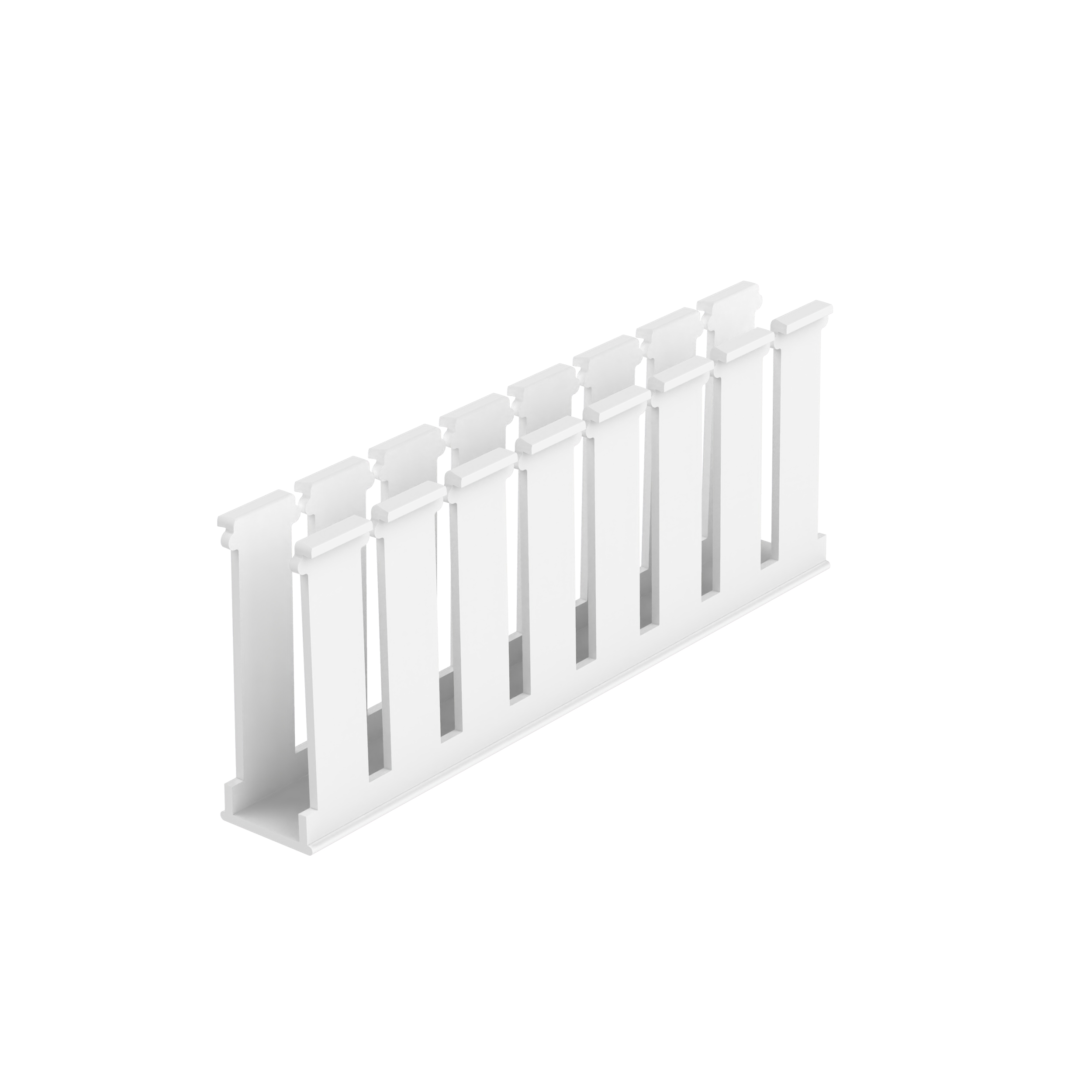

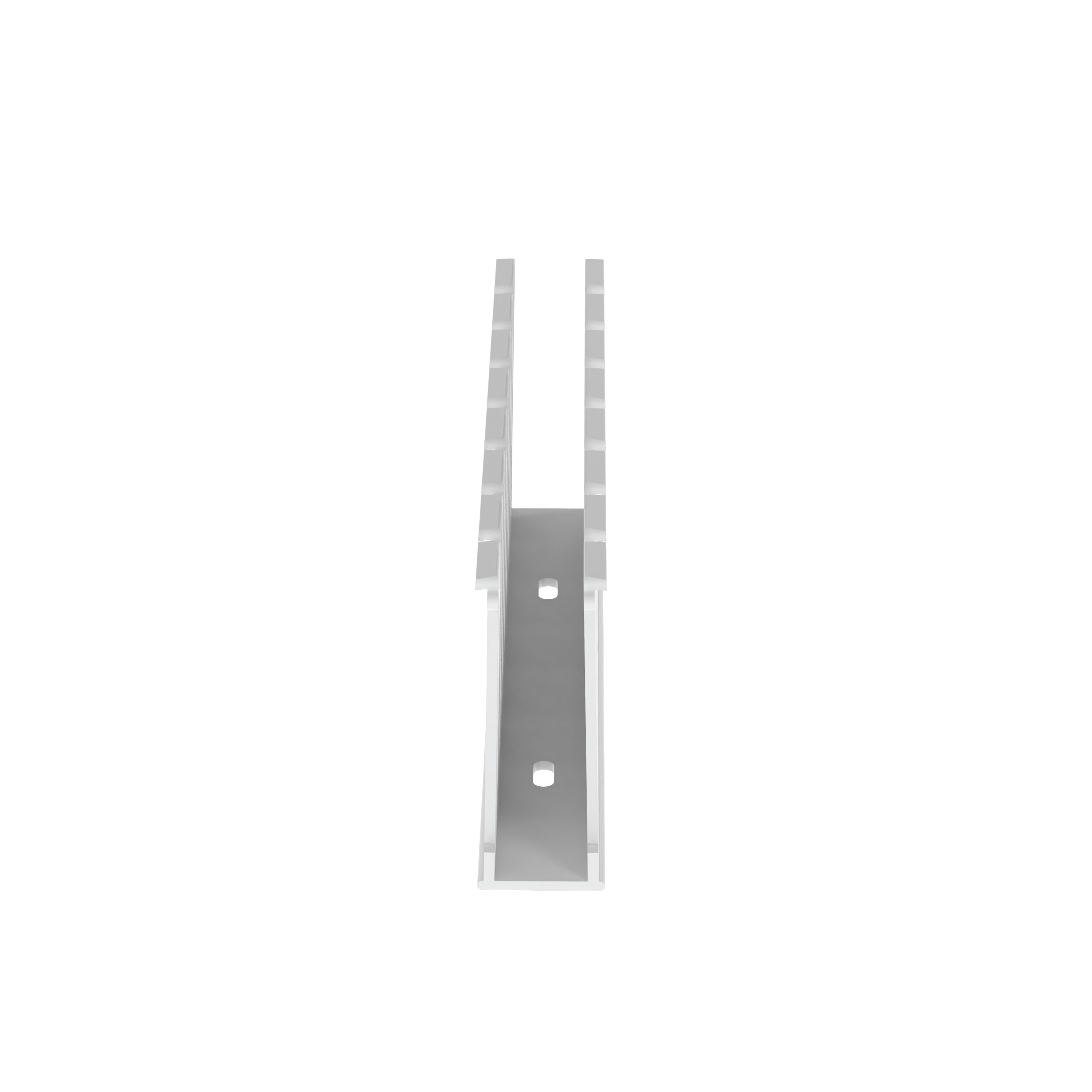

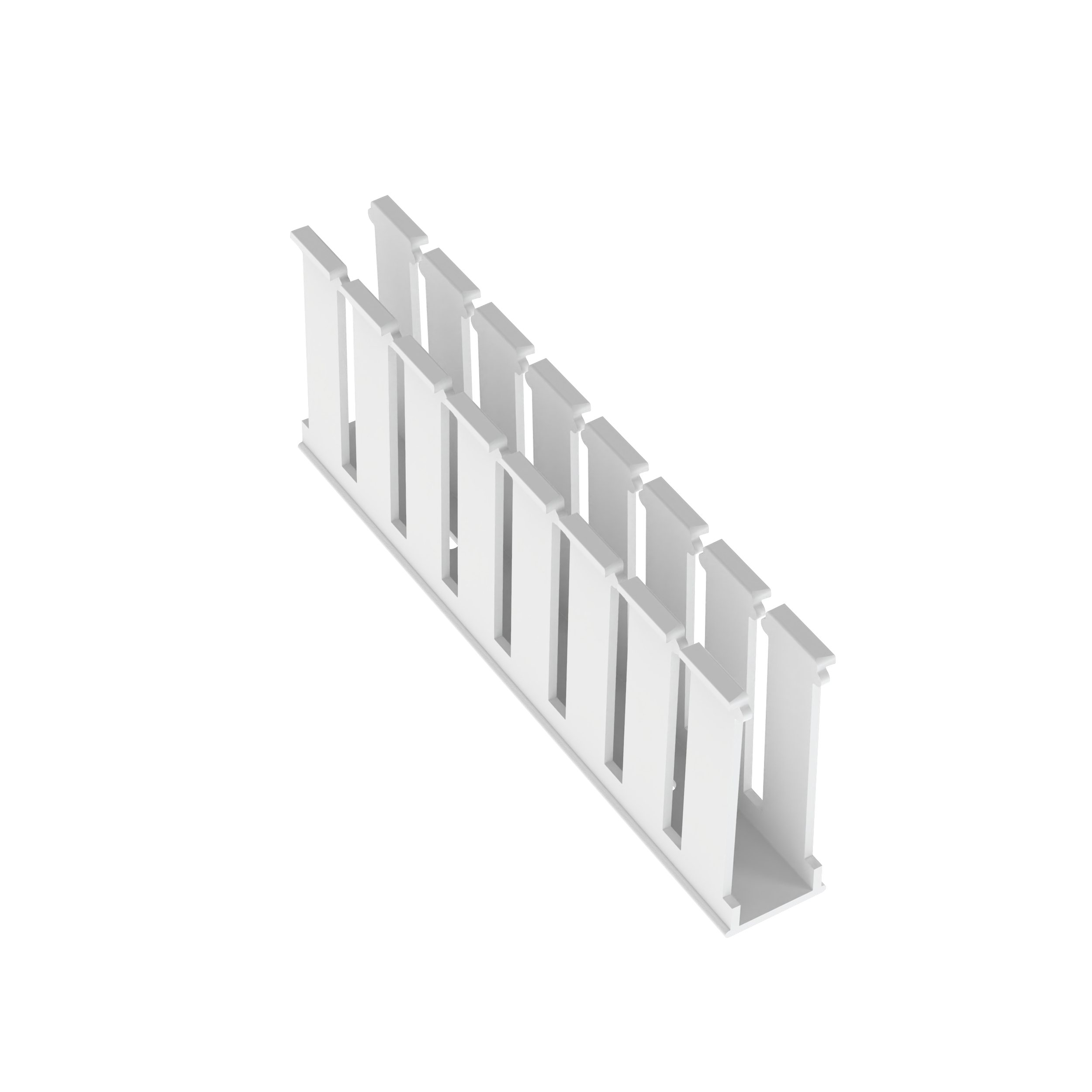

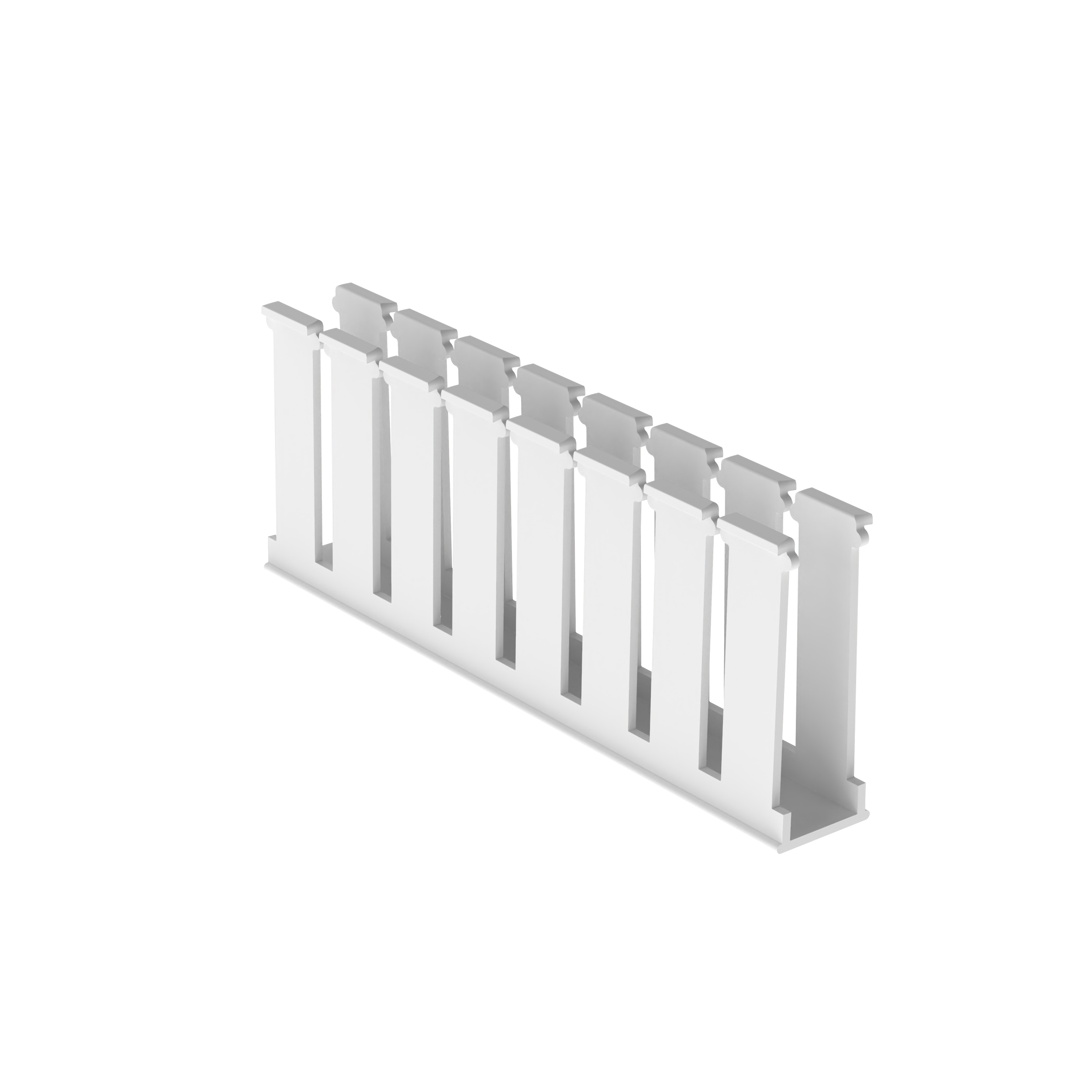

PANDUIT NE1X3WH6 DUCT SLOTTED NORYL 6FT 1X3 WHITE

Manufacturer: Panduit | Catalog # NE1X3WH6 | Electrozad South Part # 96256
$20.96 /ft
ft
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure
The NE1X3WH6 Halogen-Free Wide Slot Wiring Duct design provides greater rigidity and allows for a wide range of wire/bundle sizes. Upper and lower scorelines for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95..C (203..F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 3.06" x 1.14" (77.7 mm x 29.0 mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6 pieces per package.

Technical Information

Applications
Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications
Material
Polyphenylene Oxide
Mounting Type
DIN Standard Mounting Holes
Size
1.00 x 3.00 IN
Standard
CSA,RU Listed,RoHS
TC Connection
Standard Mounting Holes
Type
Base Wiring Duct

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Panduct

General Product Info

12-Digit UPC
074983214846
Color
White
GTIN
00074983214846
Product UPC
07498321484

Dimensions

Height
3.06 in
Length
1.8 m
Overall Length
6 ft
Thickness
0.07 in
Width
1.14 in

Certifications & Compliance

Country of Origin
USA
