Pan-Lug™ SCL2/0-X Compression Connectors - Splices

Manufacturer: Panduit | Catalog # SCL2/0-X | Electrozad South Part # 968
$2,213.77 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

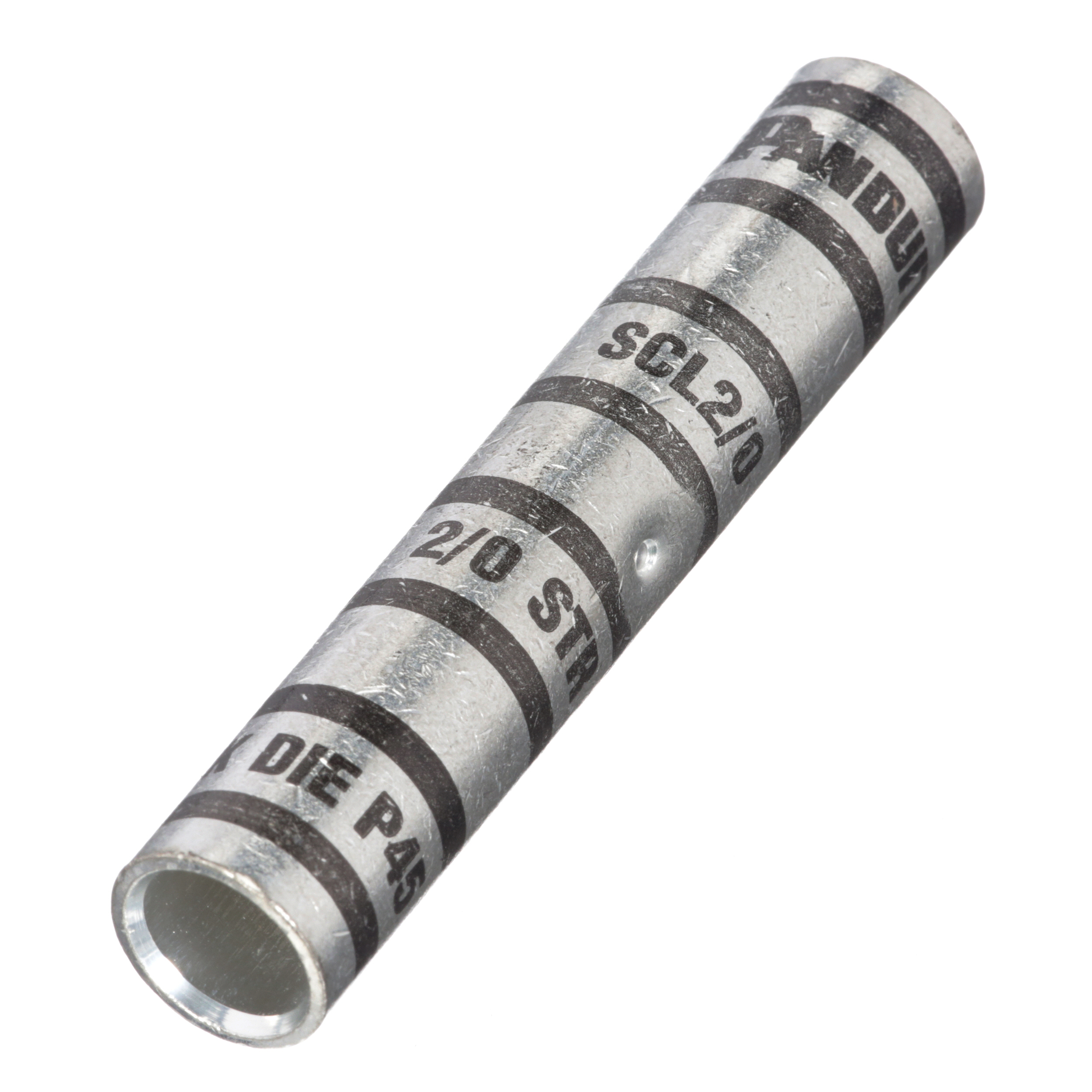

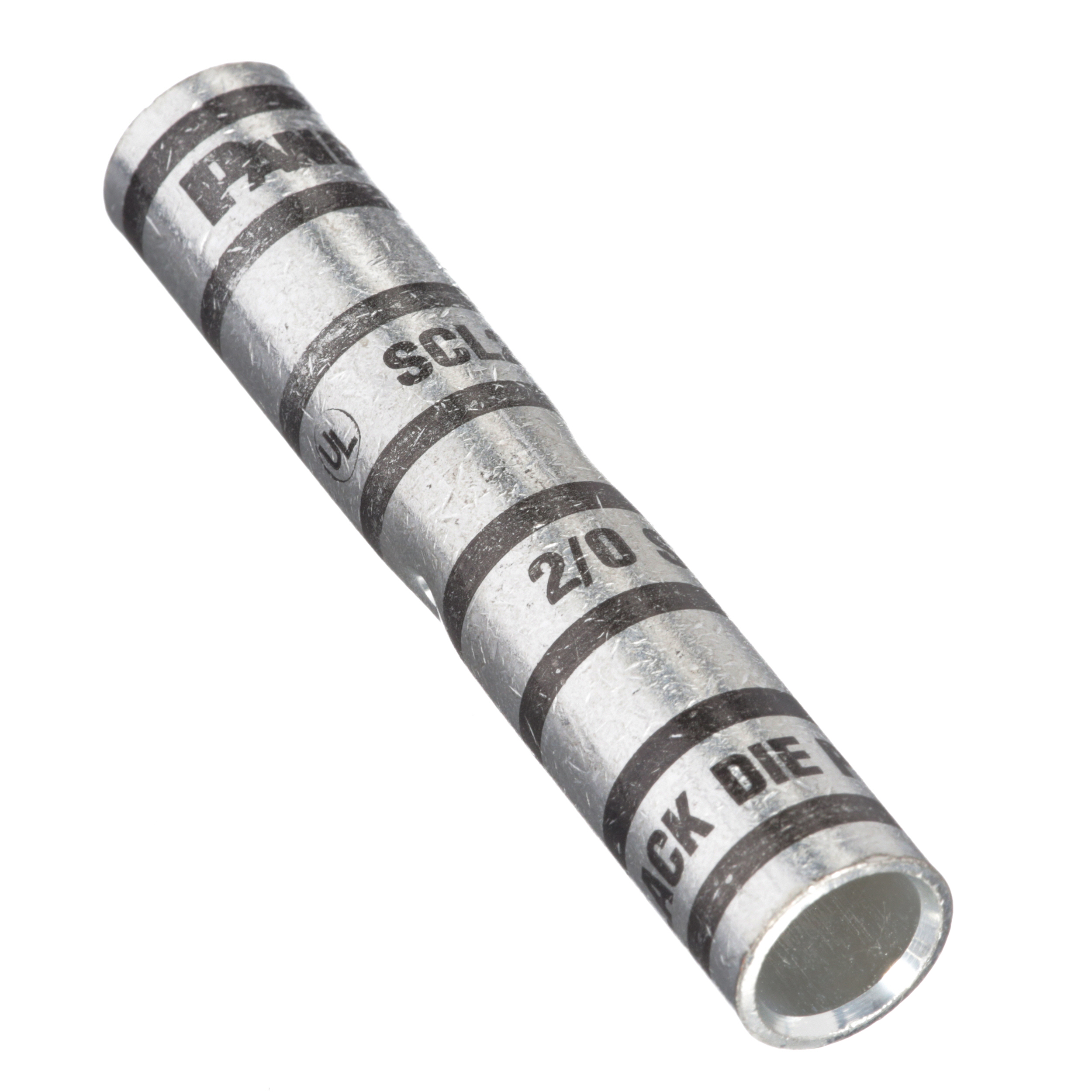

Copper butt splice, long barrel, 2/0 AWG wire.

Technical Information

Barrel Type
Long
Conductor Size
2/0 AWG
Contact Material
Copper
Material
Copper
Size
4 - 00
Standard
Yes
Strip Length
1-1/2 in
Temperature Rating
194 degrees F
Type
Compression Terminal Lug

Packaging

Package Qty
10

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983904303
Color
Black
Finish
Tin-Plated
GTIN
00074983904303
Product UPC
07498390430
UNSPSC
39121449
Used With
Stranded Copper Conductors

Dimensions

Overall Length
3.13 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
